MAINTENANCE AN D SERVICING

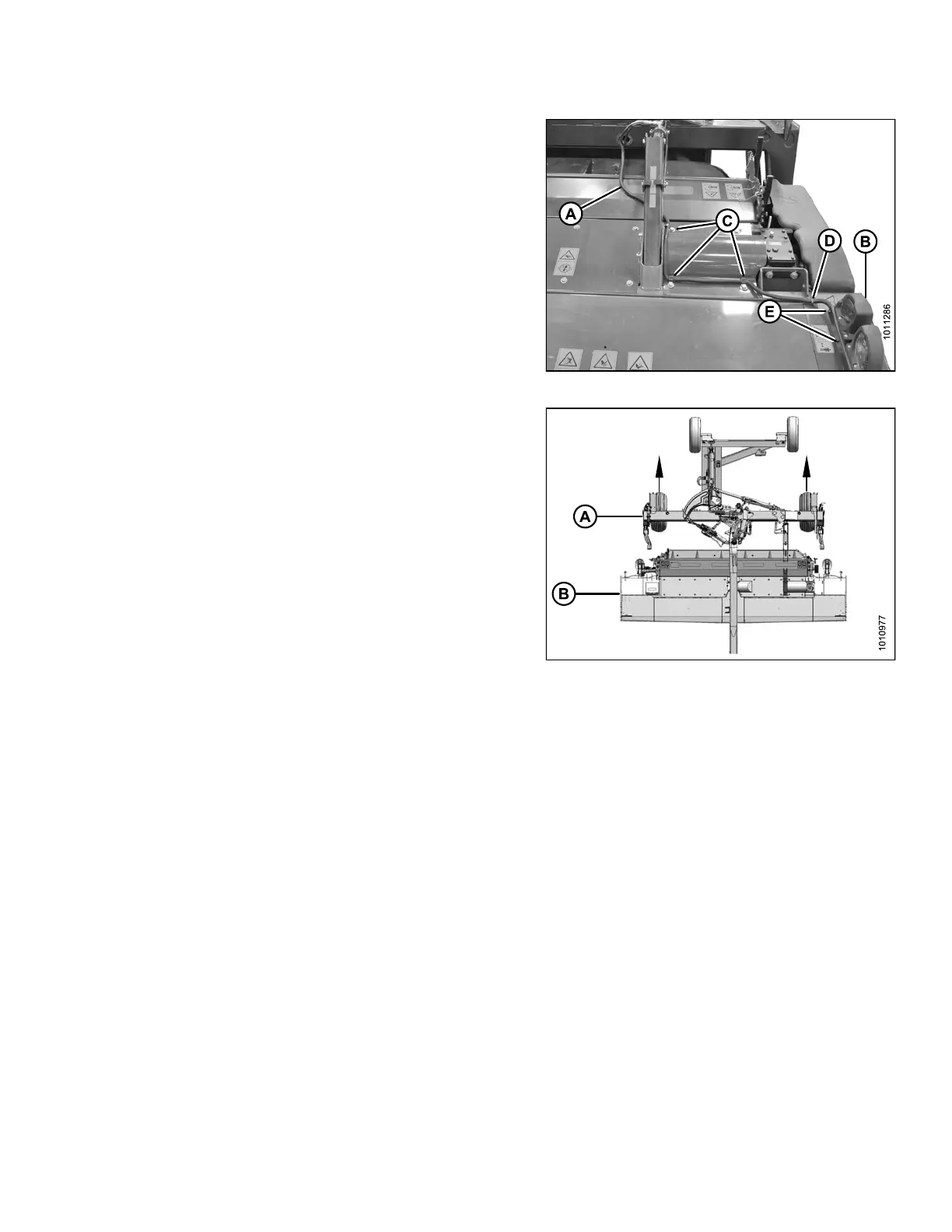

25. If Road Friendly Transport
™
system is installed,
disconnect wiring harness (A) at light assembly (B).
26. Remove cable ties (E), clamp (D) and clips (C). Retain
for reins tallation.
27. Temporarily attach harness to carrier.
Figure 4.266: Electrical Harness
28. Start tractor, slowly back carrier (A) off header (B), and
maneuver carrier away from header.
Figure 4.267: Carrier Removed from Header
147910 235 Revision A
