MAINTENANCE AN D SERVICING
2. Remove two screws (A) from cover (B) and remo ve
cover from gearbox shaft. Retain parts for future use.

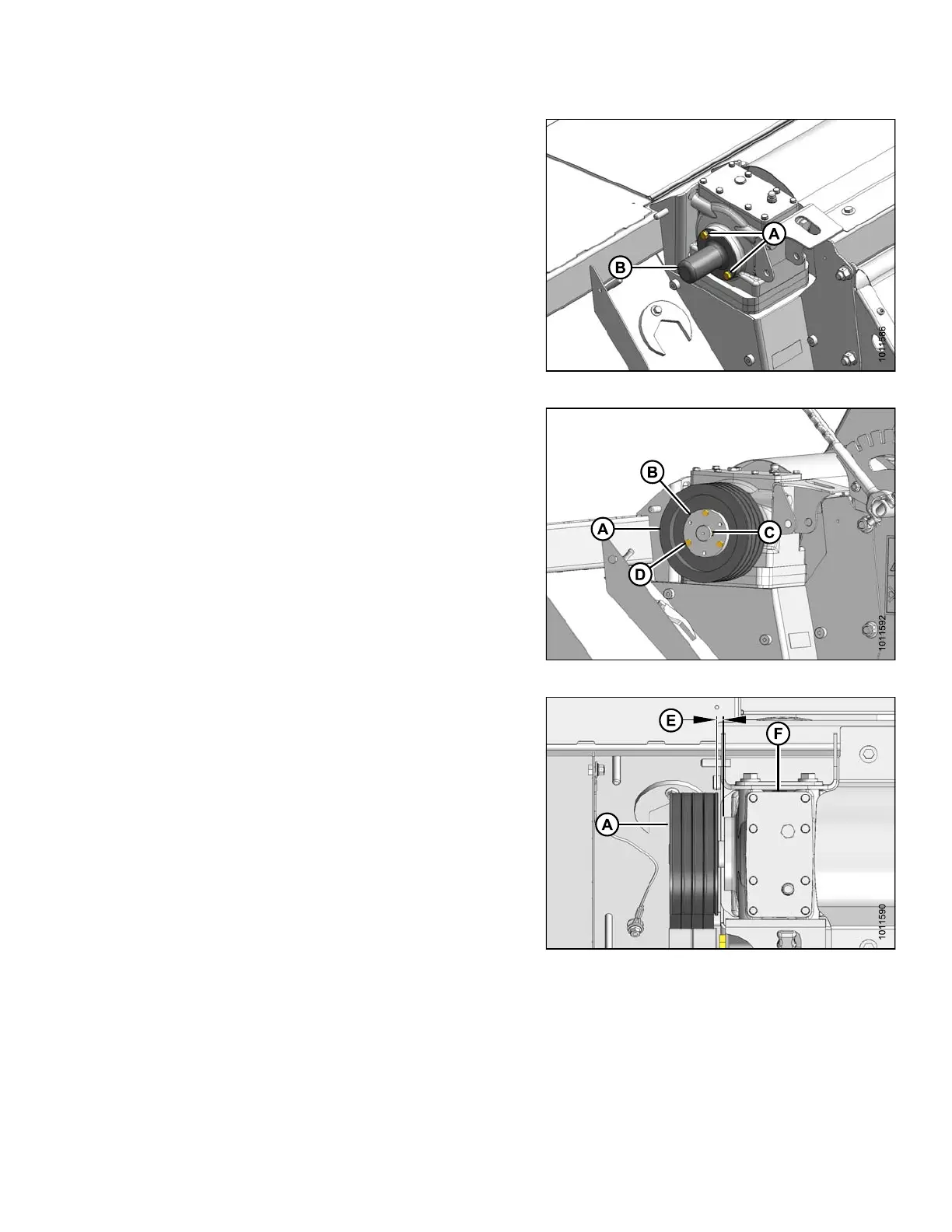

Figure 4.276: Shaft Cover
3. Assemble pulley (A) and bushing (B) onto gearbox
shaft with key (C).
4. Install three M10 hex head bolts (D) th rough
bushing (B) into pulley (A).
Figure 4.277: Drive Pulley
5. Tighten the three M10 bolts while maintaining 7/16 in.
(11 mm) dimension (E) between pulley (A) and
gearbox (F). Torque bolts to 25–29 ft·lbf (34–39 N·m).
Figure 4.278: Drive Pulley
147910 239 Revision A
