MAINTENANCE AN D SERVICING

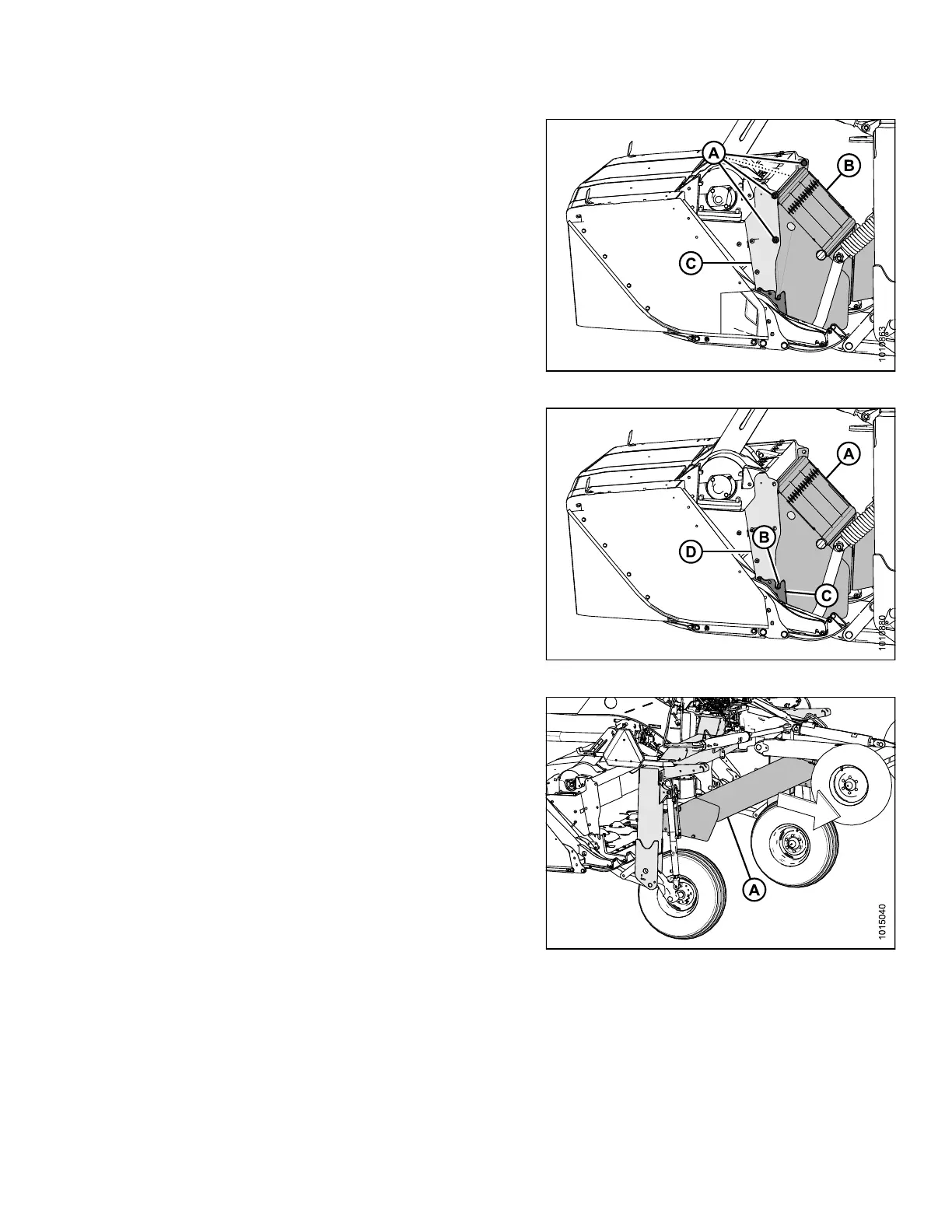

3. Remove four M16 hex head bolts (A), nuts, and
flat washers securing the shield (B) to the panel on
mower (C).
Figure 4.292: Mower (Left S ide View)
4. Lift the shield (A) until pins (B) disengage from slots in
support (C) and shield on panel (D).
Figure 4.293: Mower (Left S ide View)
5. Rotate the shield (A) 90 degrees and move it away from
the carrier frame.
Figure 4.294: Shield Rotated
147910 245 Revision A
