OPERATION

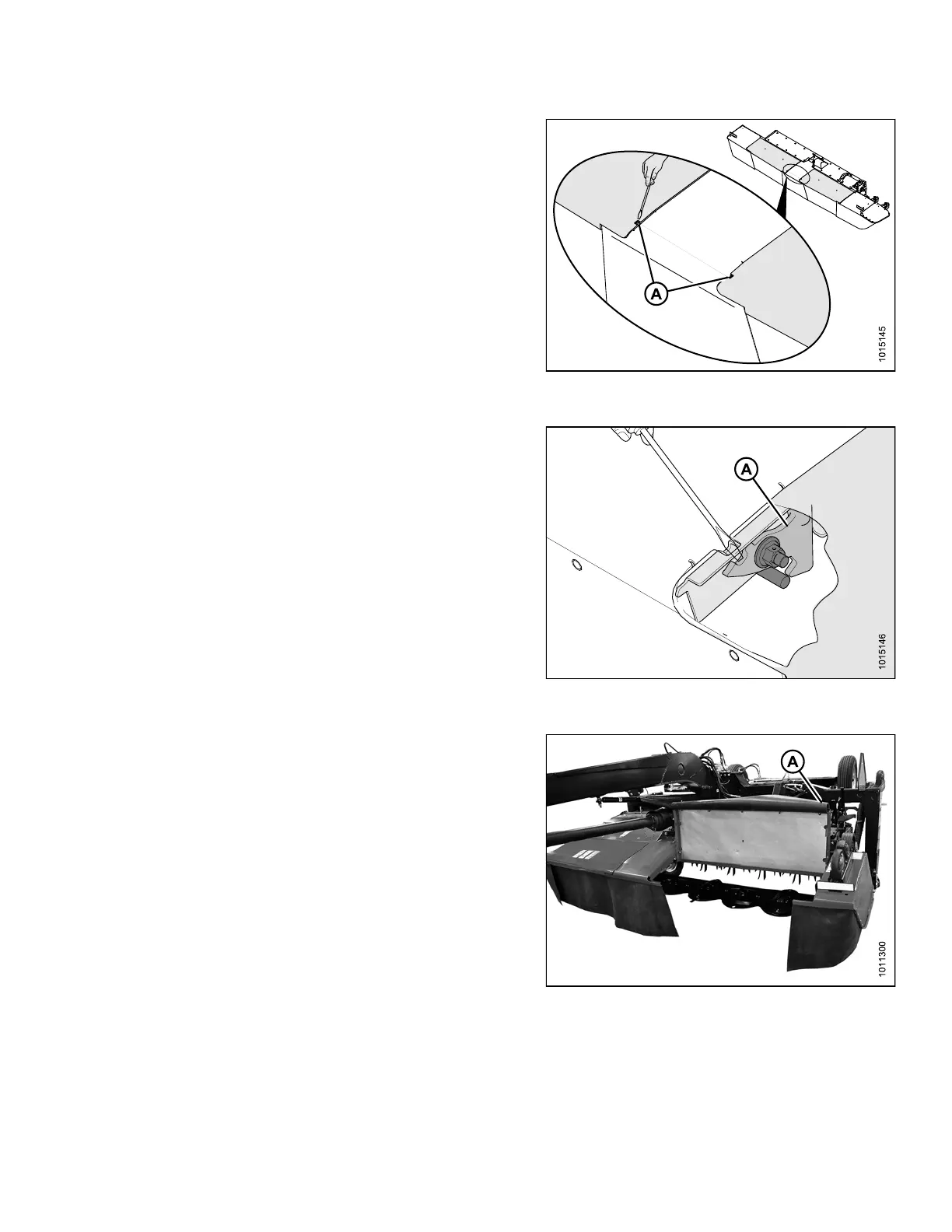

1. Locate the latch access holes (A) for each door.
Figure 3.12: Cutterbar Door Latch Access Hole
(Export Only)
2. Usearodorscrewdrivertopressdownonthelatch(A)
and release the cutterbar door.
Figure 3.13: Cutterbar Door Latch (Cut
Away View)
3. Lift up on door (A) while pressing down on latch.
NOTE:
Center mower conditioner beneath hitch to open
both doors.
Figure 3.14: LH Cutterbar Door Open
147910 37 Revision A
