OPERATION
13. Remove lynch pin (E), and remove clevis pin (D).
14. Raise mower conditioner hitch using jack (A) until pin
(B) disengages and clears drawbar hitch adapter (C).

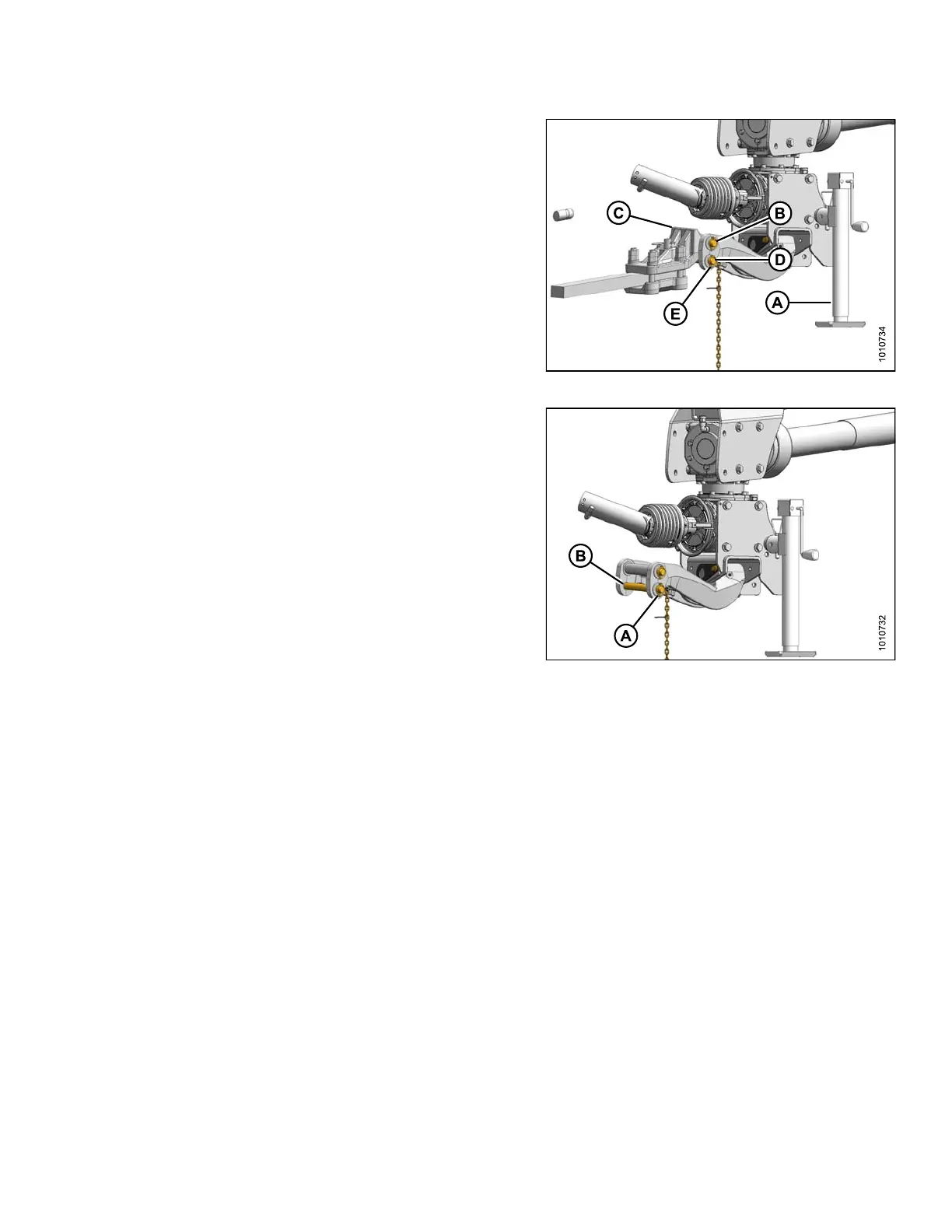

Figure 3.43: Mower Conditioner Hitch
15. Replace clevis pin (B) and secure with lynch pin (A).
Figure 3.44: Mower Conditioner Hitch
147910 53 Revision A
