MacDon R2 Series - In-Cab Electric Remote Baffle; Recommended Starting Settings with a DWA

12 R2 Series Clinic Handout
Settings

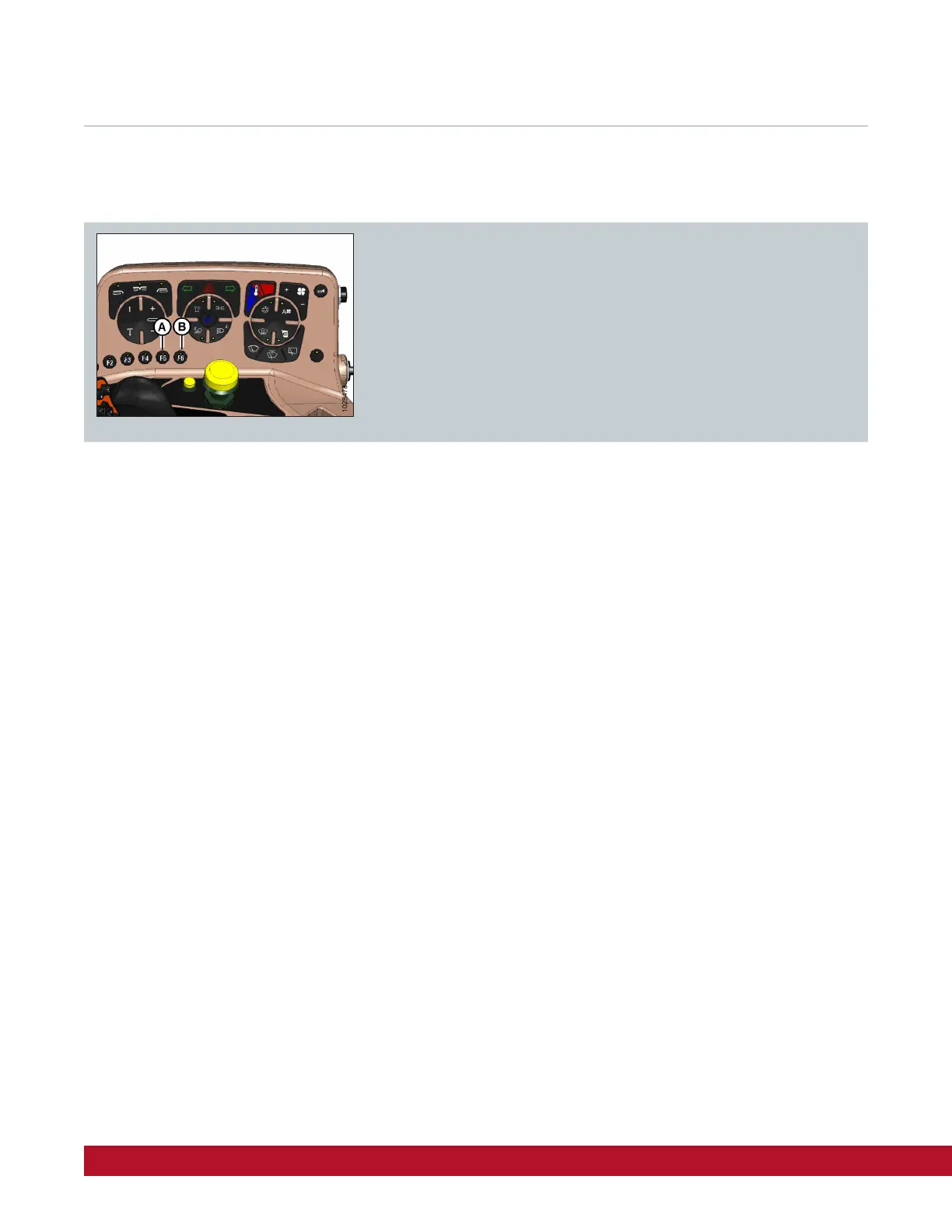

1. If the In Cab Remote Bae is installed, the bae is controlled inside the
windrower cab by buttons F5 (A) (bae up) and F6 (B) (bae down).
No set-up is required on the display to activate controls.
2. A pop up will appear on the display for 3 seconds indicating bae
position from 0 – 10.
In-Cab Electric Remote Bae
Recommended Starting Settings with a DWA
Important:
Confirm that bae can move freely through its range of motion and does not contact side deflectors.
1. DWA adjusted low and close to the RH tire
2. Tall crop feed plates installed
3. Rear bae deflector fins removed
4. Forming shield top deflector fins removed. RH side deflector positioned straight back. LH side
deflector angled so that crop lands on the DWA.
5. Tight conditioner roll gap (for crop conditions)
6. Minimum disc speed of 2100 rpm
7. Ensure right side of header is full (more than 10” of overlap will dramatically aect crop flow)
8 Header angle and bae angle are key. Start with a mid position header tilt (4-7). Ensure the crop is
dropping fully onto the DWA. Too steep of a header angle and the crop will hit the forming shield too
early, too shallow and the crop will not arc up towards the DWA. Use the rear bae angle to adjust
how the crop is flowing into the forming shield.
9. Enter crop at relatively high speed 8 km/h+ (5 mph+)
10. Maintain consistent ground speed for consistent crop flow
