MacDon R2 Series - Lubrication Locations; Left Side Every 25 Hours

R2 Series Clinic Handout 5
Lubrication Locations
Left Side Every 25 hours

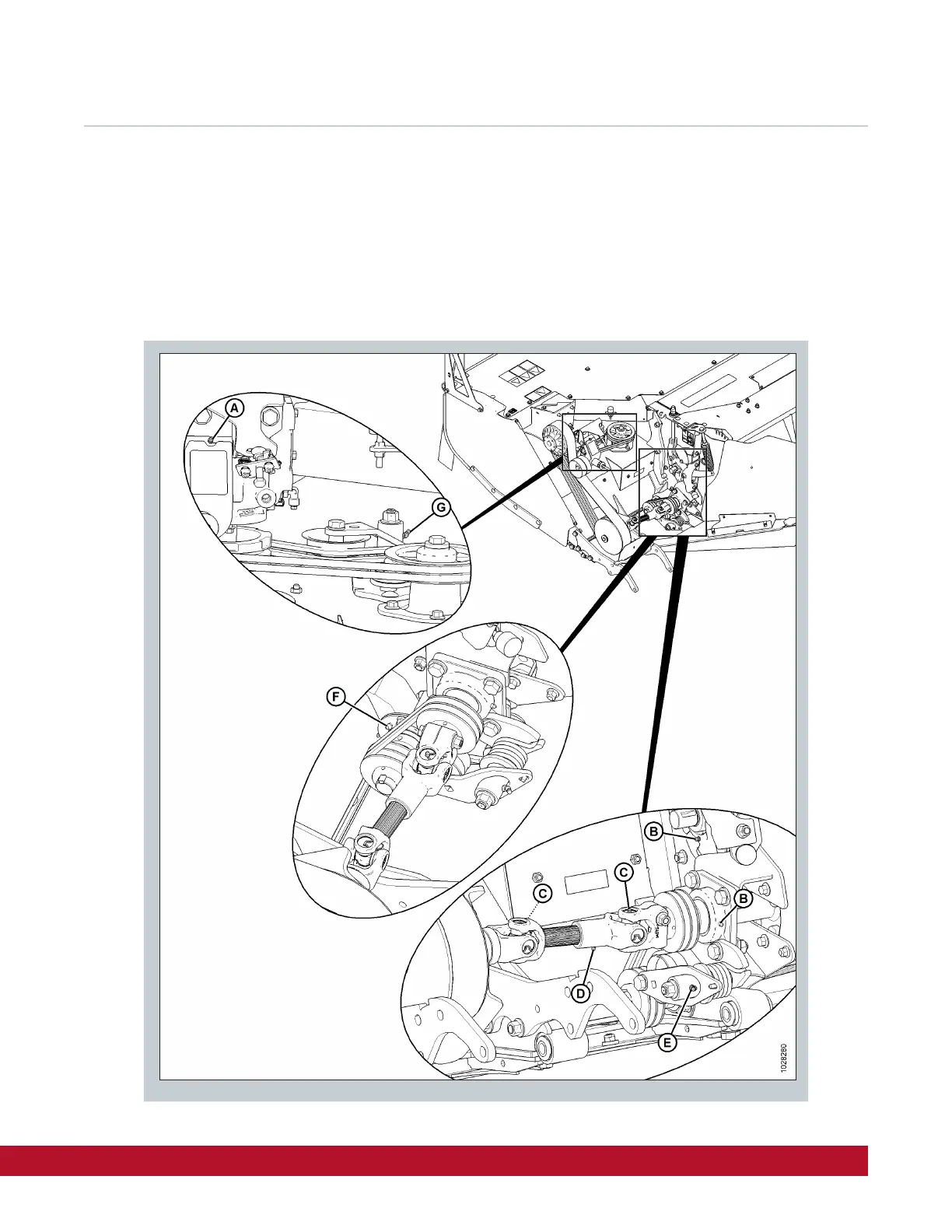

A - Idler/Tensioner Pivot B - Bearing, Roller Conditioner (2 Places) C - U-Joint, Conditioner Driveline (2 Places)
D - Slip Joint, Conditioner Driveline ** E - Idler/Tensioner Pivot F - Bearing, Feed Roll
G - Tensioner Arm
** Note: Use high-temperature, extreme-pressure (EP2) performance grease with 10% max molybdenum disulphide (NLGI grade 2) lithium base.
