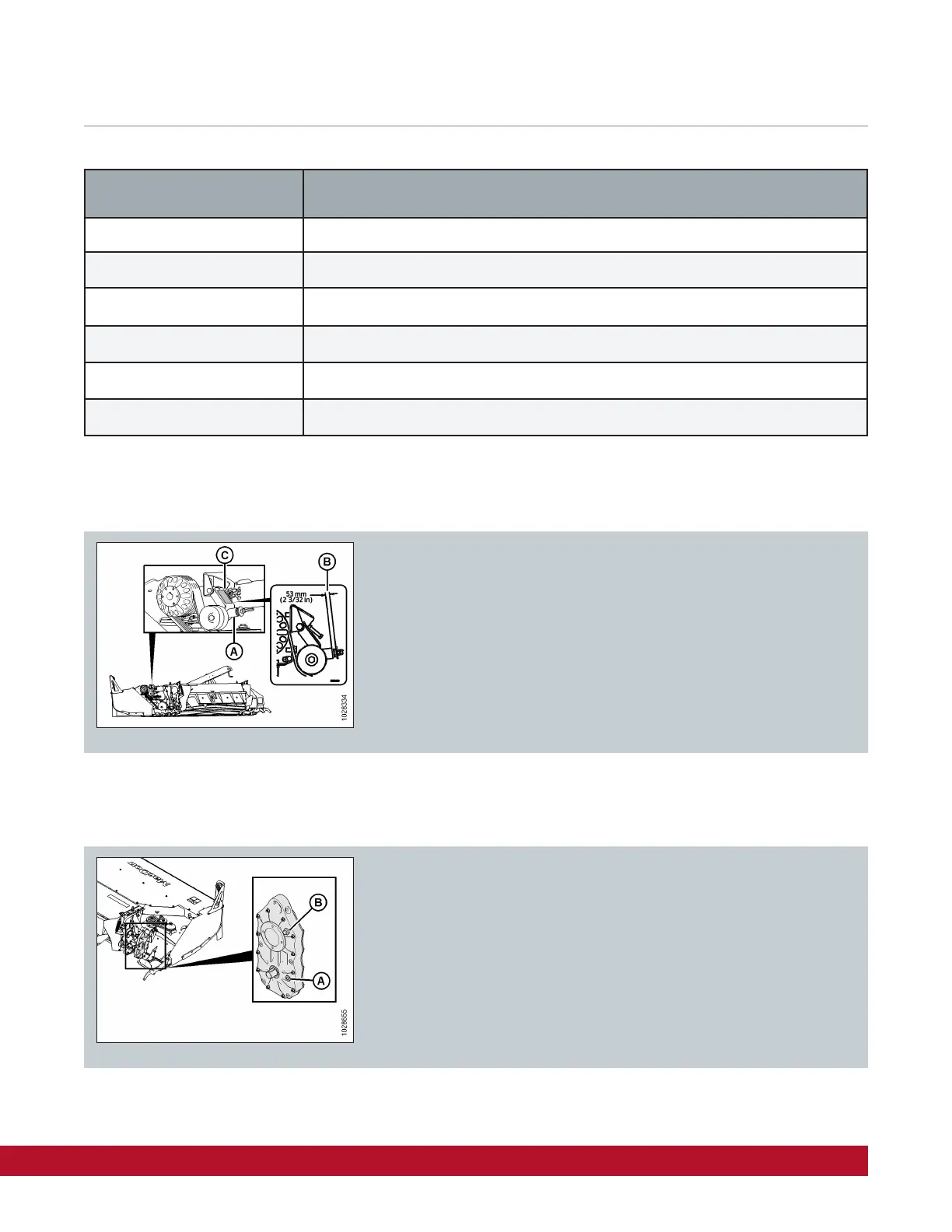

R2 Series Clinic Handout 3
Break-In Inspections
Checking Conditioner Drive Belt Tensioner
Checking Conditioner Drive Gearbox Lubricant
Measure the length of the belt tensioner spring (A)
and ensure spring length (B) is 53 mm (2 3/32 in)
Open the 2 drive shields on RH side of header.
Oil should be level with the top of the sight glass (A).
Fill as required through breather (B).
Inspection Interval Item
1 Hour Check for loose hardware and tighten to required torque
5 Hours Check for loose hardware and tighten to required torque
5 Hours Check conditioner drive belt tension
50 Hours Check conditioner drive belt tension
50 Hours Change conditioner drive gearbox lubricant
50 Hours Change header drive gearbox lubricant
