© 2018 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com 10
Rev. Date 040218
Glulam Bracket (2)
(Optional)
Noise Dampening Pad (1)
(Optional)
Top Mount Plate (1) (Optional)
Extension Tube (1)
Mount Cap (1)
Mount Shaft (1)

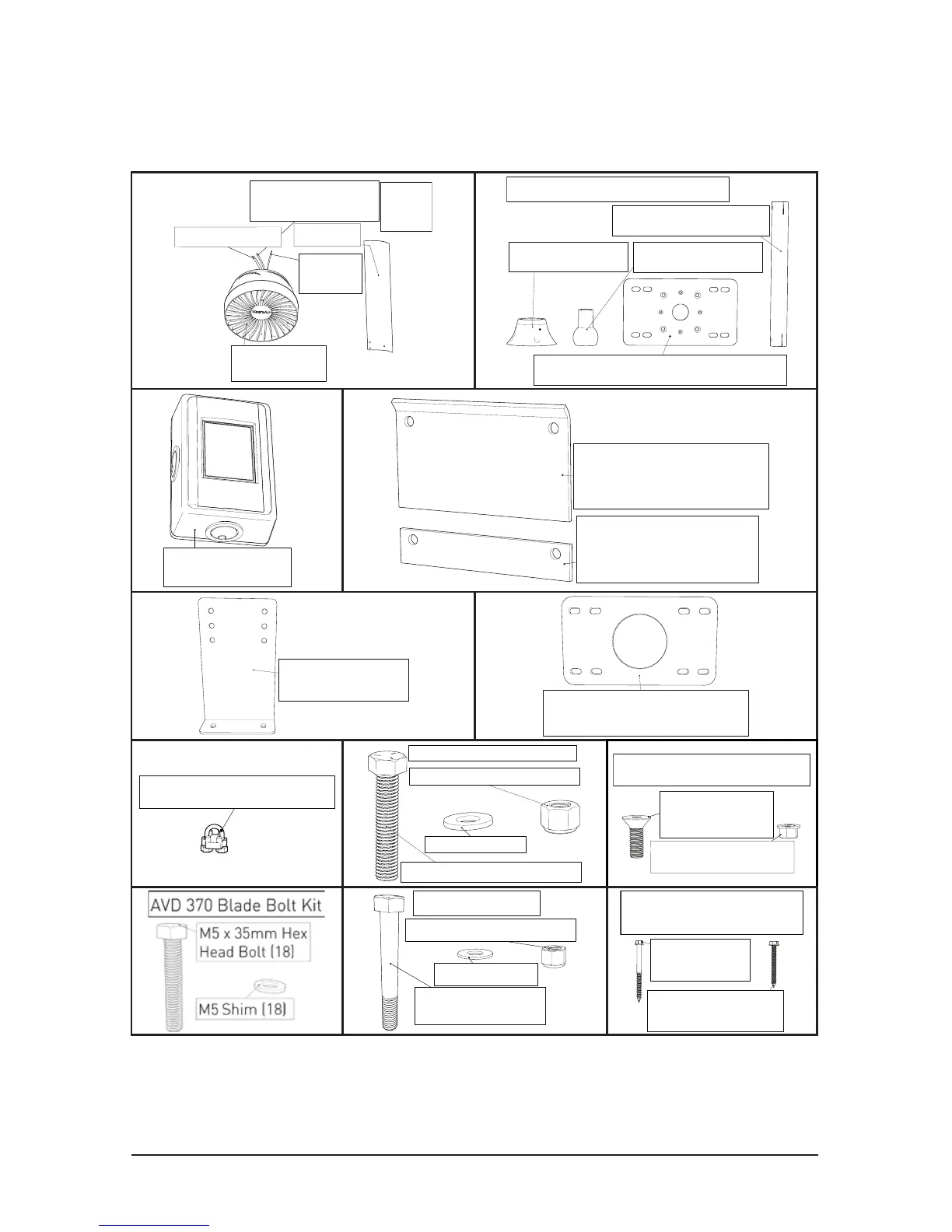

Rapid Mount Commercial Parts
Touchpad Digital
Remote (1)
Wire Rope Clamp (2)
1/2"-13 x 2 1/2" Hex Bolt (4)
1/2"-13 Nylon Lock Nut (4)
1/2" Washer (8)
I-Beam Bolt Kit (Optional)
3/8" Washer (4)
3/8"-16 Nylon Lock Nut (2)
3/8"-16 x 2 3/4" Hex
Head Bolts (2)
3/8" Washer (4)
Extension Bolt Kit
1/4"-28 x 3/4"
Countersunk Socket
Head Cap Screw (4)
1/4"-28 Flanged Distorted
Thread Locknut (4)
Rapid Mount Commercial Mounting
Plate Bolt Kit (Optional)
Components
(Rapid Mount Commercial)
Make sure all parts listed above are included if you purchased the Rapid Mount
Commercial. Read the entire manual before beginning the installation of the
fan. Additional parts may be required, including, but not limited to, guy wire
attachment hardware, extra cable, Unistrut, and bolts for Glulam mounting.
#10 2-1/2"
Lag Screw (4)
#10 1-3/4"
Concrete Screw (4)
Rapid Mount Commerical
Mounting Screws
I-Beam Shim (2)
(Optional)
I-Beam Clamp (2)
(Optional)
AVD 370
Motor Unit (1)
Airfoil (6)
Safety
Cable (1)
Sheilded Stranded
CAT5e Cable (1)
Power Cable (1)
RJ45
Pin-Out
Type “B”
