© 2018 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com 17
Rev. Date 040218
1/2"-13 Grade 5 Hex Bolt
at least 2 1/2" longer than
width of Glulam (2)
1/2" Washer (4)
1/2"-13 Nylon Lock Nut (2)
Glulam Required Parts
(NOT PROVIDED)

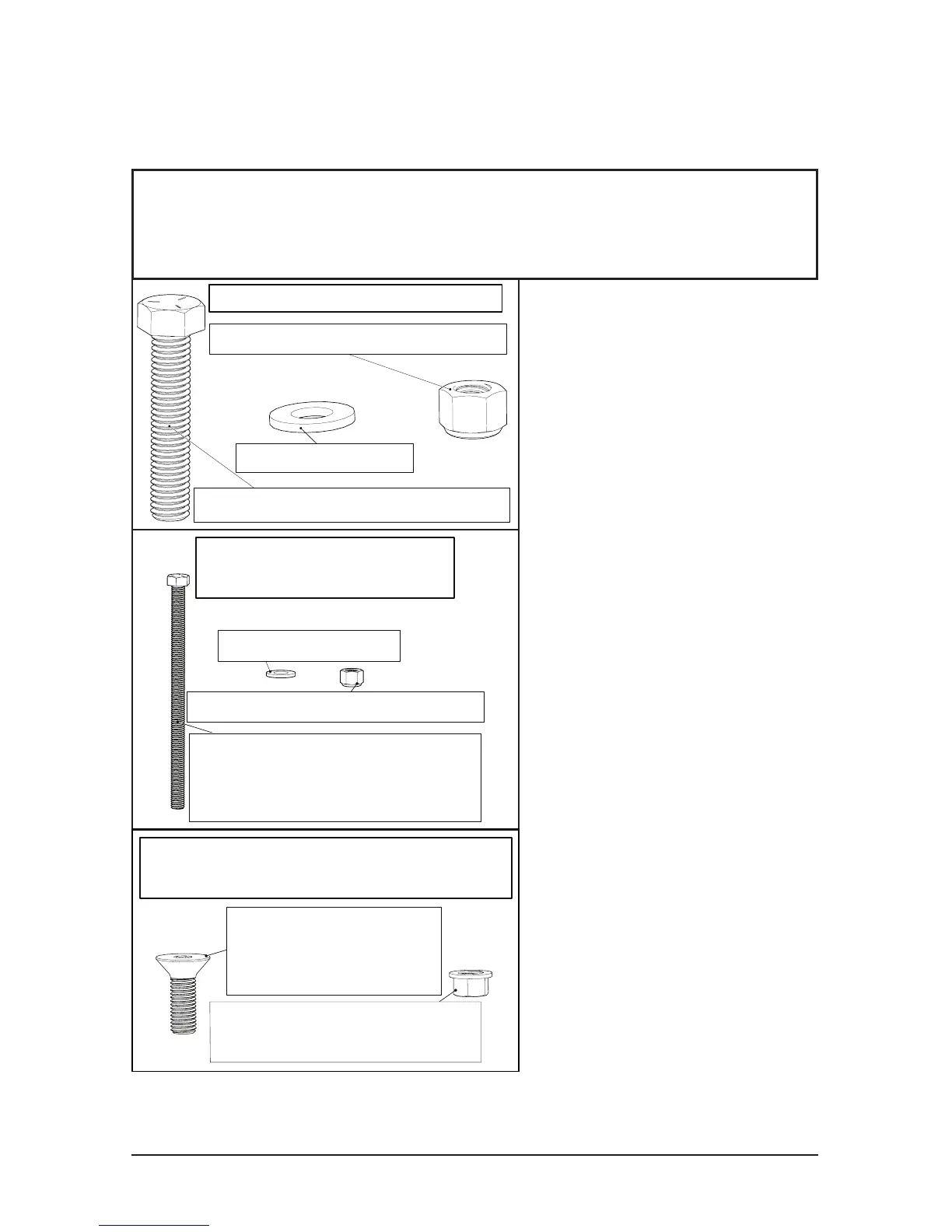

1.2 Rapid Mount Commercial
Bolt Kits
The I-Beam Bolt Kit is included with both I-Beam and Glulam
brackets. Additional parts must be purchased if mounting to
a Glulam (with the glulam bracket) or Unistrut.
For mounting to steel
trusses over 3 inches in
width, use the I-Beam
mounting method. For
widths under 3 inches,
use Unistrut span
mounting.
If you wish to mount to
a different surface than
these listed here, contact
a structural engineer.
1/2"-13 x 2 1/2" Hex Bolt (4)
1/2"-13 Nylon Lock Nut (4)
1/2" Washer (8)
I-Beam Bolt Kit (Optional)
1/4"-28 x 3/4"
Countersunk Socket
Head Cap Screw (4)
1/4"-28 Flanged Distorted
Thread Locknut (4)
Rapid Mount Commercial Mounting
Plate Bolt Kit (Optional)
Direct Glulam mounting
starts on page 18
Glulam Bracket mounting
starts on page 21
I-Beam mounting
starts on page 25
Unistrut mounting
starts on page 29
To Next Page
