#10 2-1/2"
Lag Screw (4)
#10 1-3/4"
Concrete Screw (4)
Rapid Mount Commerical
Mounting Screws
1/8" safety cable clearance1/8" safety cable clearance
Glulam / Wood Beam

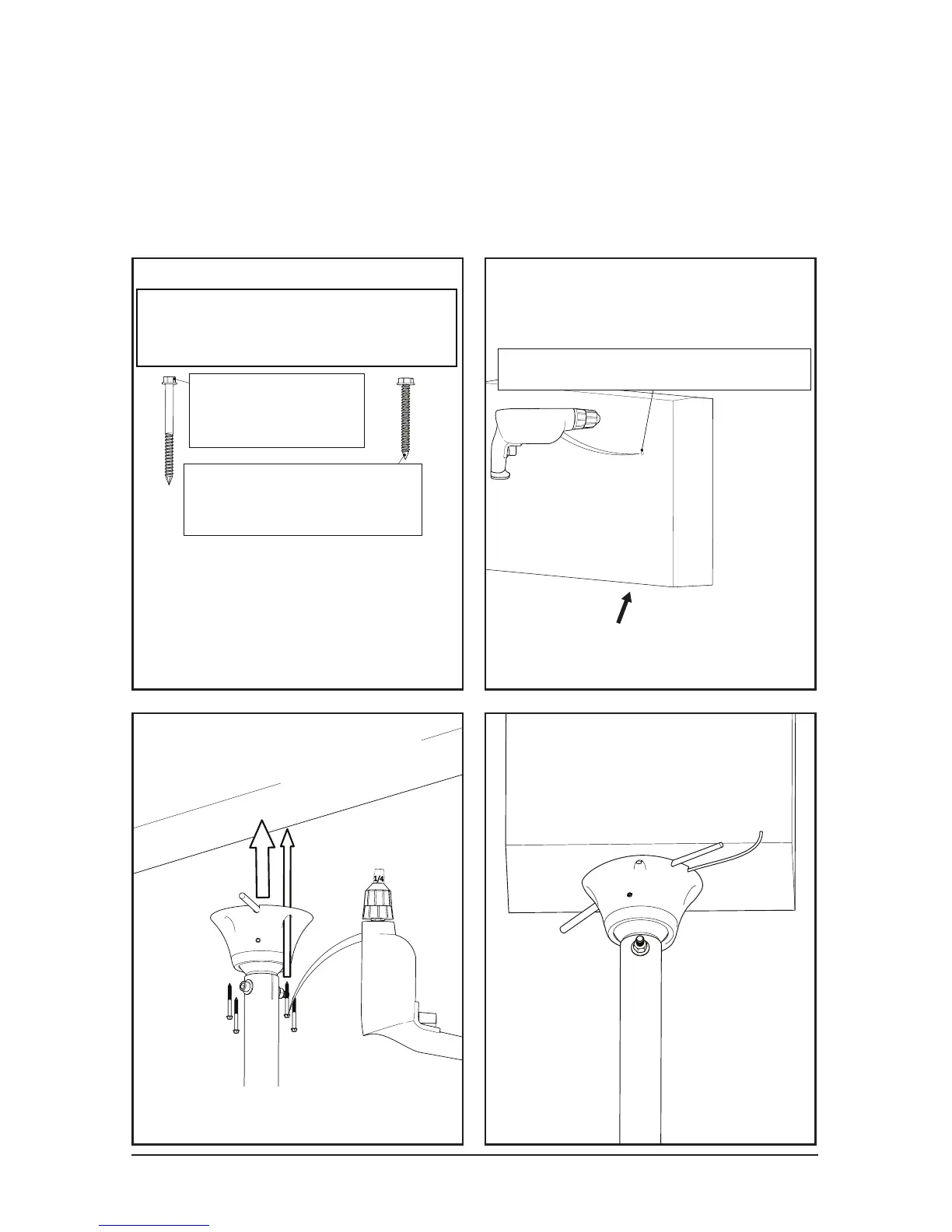

1.2.1 Rapid Mount Commercial
Glulam (Direct Mounting)
While concrete screws
are provided, contacting a
structual engineer is required
for mounting to Concrete.
Position the mount so that the
screws are as far away from the
edge of the beam as possible
Glulams and wood beams must be at least 6” wide to use this mounting
method. For narrower beams, use Glulam Brackets (sold separately) or
span across two or more beams using the Unistrut mounting method.
1/4”
Drill a pilot hole before
installing screws
To Next Page
