© 2018 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com 35
Rev. Date 040218
1/2"-13 Grade 5 Hex Bolt
at least 2 1/2" longer than
width of Glulam (2)
1/2" Washer (4)
1/2"-13 Nylon Lock Nut (2)
Glulam Required Parts
(NOT PROVIDED)

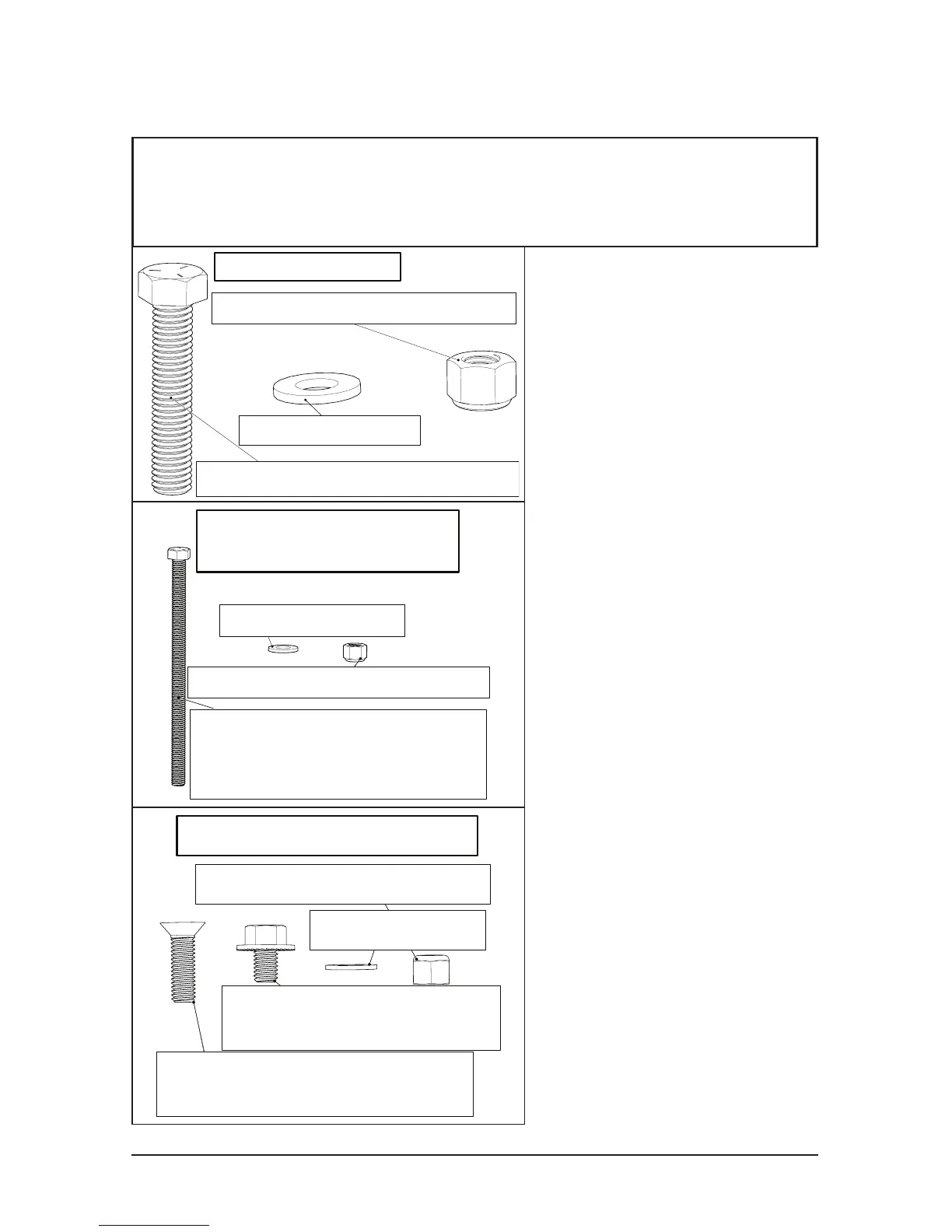

2.2 Fixed Angle Mount Bolt Kits
1/2"-13 x 2 1/2" Hex Bolt (4)
1/2"-13 Nylon Lock Nut (4)
1/2" Washer (8)
I-Beam Bolt Kit
The I-Beam Bolt Kit is included with both I-Beam and Glulam
brackets. Additional parts must be purchased if mounting to
a Glulam or Unistrut.
For mounting to steel
trusses over 3 inches in
width, use the I-Beam
mounting method. For
widths under 3 inches,
use Unistrut span
mounting.
If you wish to mount
to a different surface
than these listed here,
contact a structural
engineer.
3/8" Washer (4)
3/8"-16 x 1 1/4"Countersunk
Socket Head Cap Screw (4)
3/8"-16 Nylon Lock Nut (4)
3/8" Washer (4)
3/8"-16 x 1 1/4"Countersunk
Socket Head Cap Screw (4)
3/8"-16 x 1/2" Serrated
Flange Hex Head bolt (4)
Fixed Angle Mount Bolt Kit
Glulam mounting
starts on page 36
I-Beam mounting
starts on page 39
Unistrut mounting
starts on page 43
