© 2018 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com 11
Rev. Date 040218
Glulam Bracket (2)
(Optional)
Noise Dampening Pad (1)
(Optional)
Fixed Angle Mount Bracket (2)
Guy Wire Bracket (2)
Top Mount Plate (1)
Extension Tube (1)
Fixed Angle Mount Parts
Wire Rope Clamp (2)
1/2"-13 x 2 1/2" Hex Bolt (4)
1/2"-13 Nylon Lock Nut (4)
1/2" Washer (8)
I-Beam Bolt Kit
3/8" Washer (4)
3/8"-16 Nylon Lock Nut (2)
3/8"-16 x 2 3/4" Hex
Head Bolts (2)
3/8" Washer (4)
Extension Bolt Kit
3/8" Washer (4)
3/8"-16 x 1 1/4"Countersunk
Socket Head Cap Screw (4)
3/8"-16 Nylon Lock Nut (4)
3/8" Washer (4)
3/8"-16 x 1 1/4"Countersunk
Socket Head Cap Screw (4)
3/8"-16 x 1/2" Serrated
Flange Hex Head bolt (4)
Fixed Angle Mount Bolt Kit

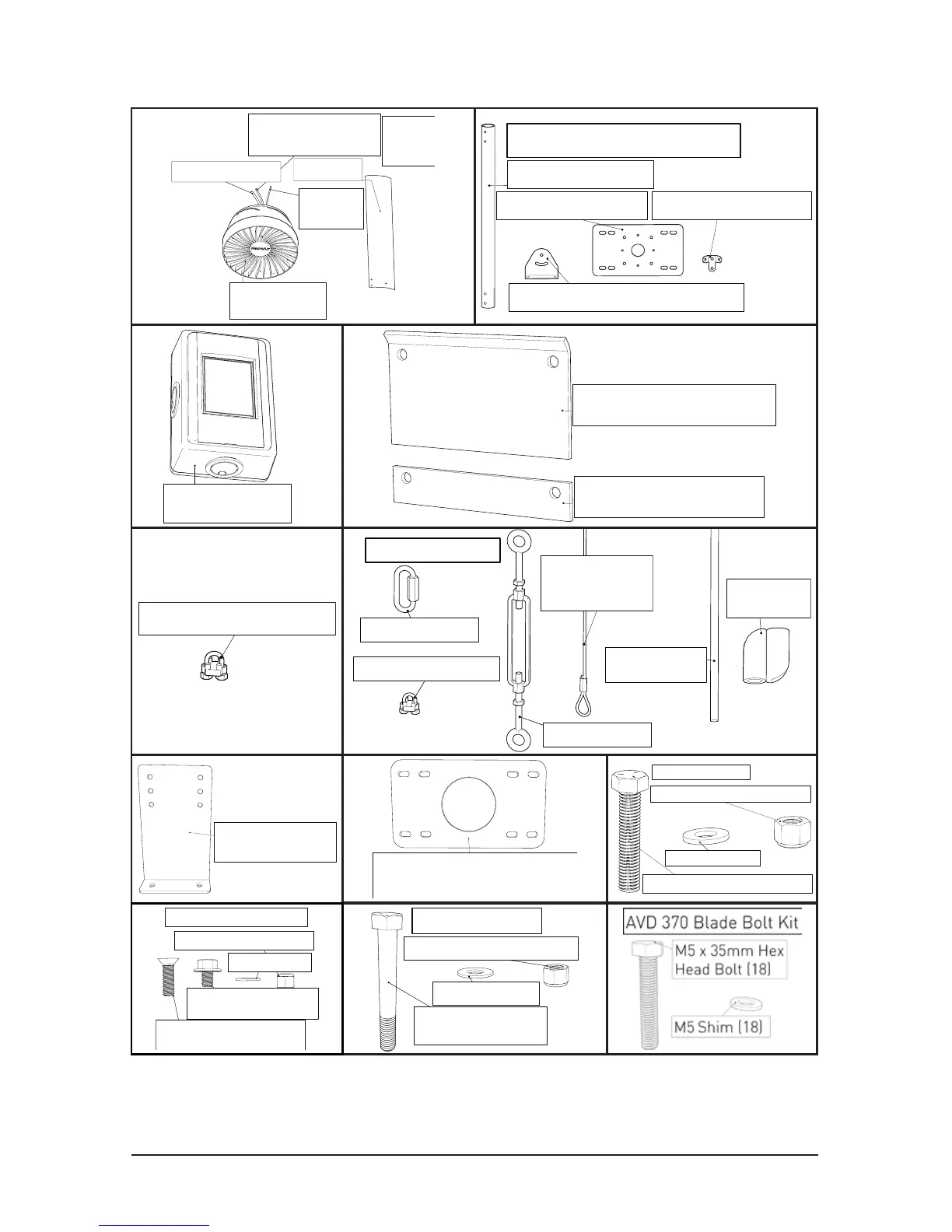

Components (Fixed Angle Mount)
Make sure all parts listed above are included if you purchased the Fixed
Angle Mount. Read the entire manual before beginning the installation of the
fan. Additional parts may be required, including, but not limited to, guy wire
attachment hardware, extra cable, Unistrut, and bolts for Glulam mounting.
Guy Wire Assembly
Wire Rope (4)
19ft (A), 23ft (B),
or 33ft (C)
Turn Buckle (4)
1/4" Quicklink (4)
Wire Rope Clamp (8)
AVD 370
Motor Unit (1)
Airfoil (6)
Safety
Cable (1)
Sheilded Stranded
CAT5e Cable (1)
Power Cable (1)
RJ45
Pin-Out
Type “B”
I-Beam Shim (2)
I-Beam Clamp (2)
To Next Page
