© 2018 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com 16
Rev. Date 040218
30 ft-lbs
30 ft-lbs
[41 N-m]
Be careful of wires
The set screws in the mount will be tightened once the mount is
securely fastened to the building.
9/16”

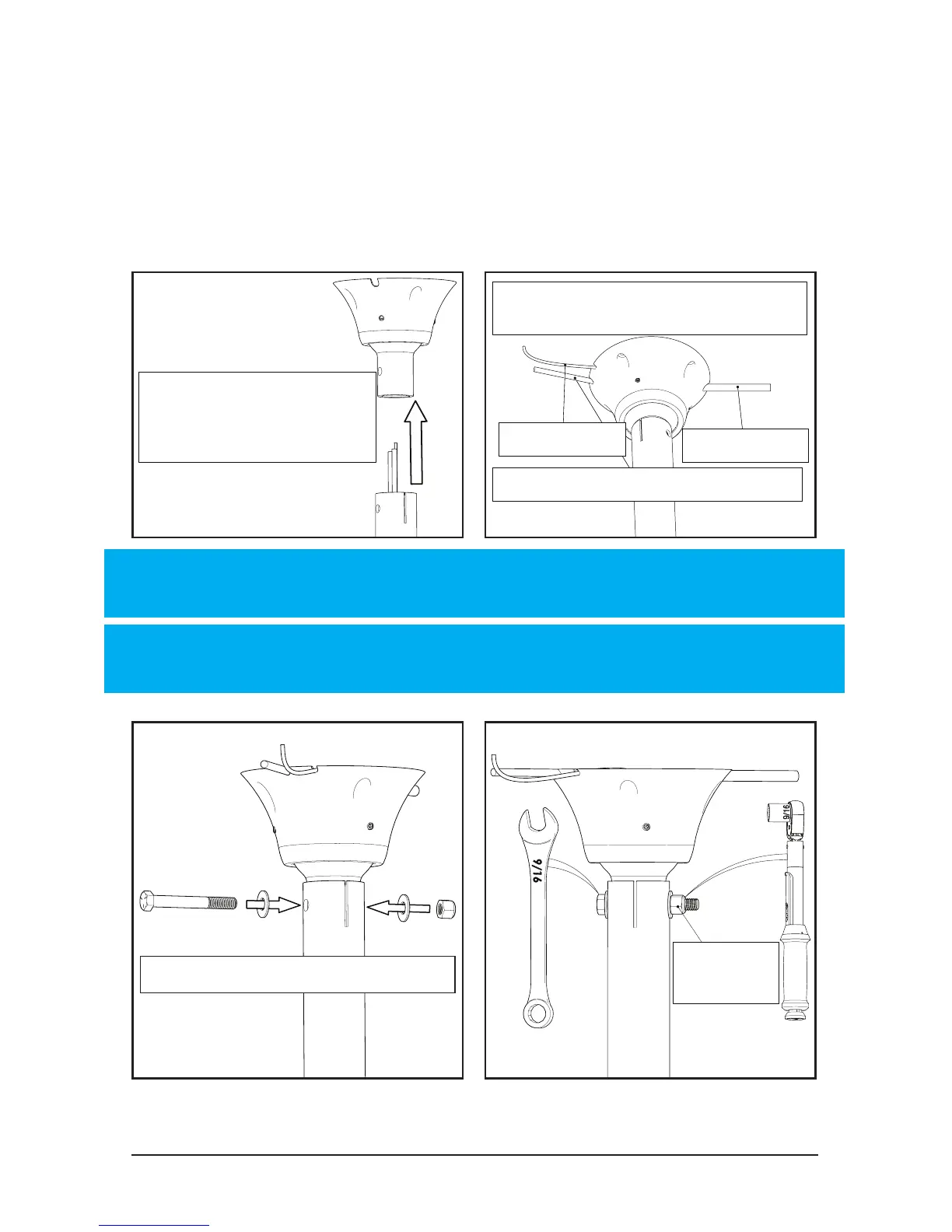

1.1 Rapid Mount Commercial
Motor & Extension Tube
Run cables
through mount
Power Cable
Stranded Sheilded CAT5e Cable
Safety Cable
Power Cable
Stranded Shielded CAT5e Cable
Safety Cable
The power cable must be opposite
of the safety and CAT5e cables
NOTE: Power cable must be routed into the mount on the
opposite side from safety cable and CAT5e cable.
CAT5e Shielded must be used at a minimum. No unshielded comm cables.
The communications cable MUST be routed at least 1 foot away from
power cables, high voltage power wires, and uorescent lighting. The
only point where the power cable should be near the comm wire is
when they are in the mount and extension tube.
NOTE: For networks, please refer to the network controller or
AirLynk manual for CAT5e wiring instructions.
To Next Page
