Temp/Humidity Sensor Location
(Optional)

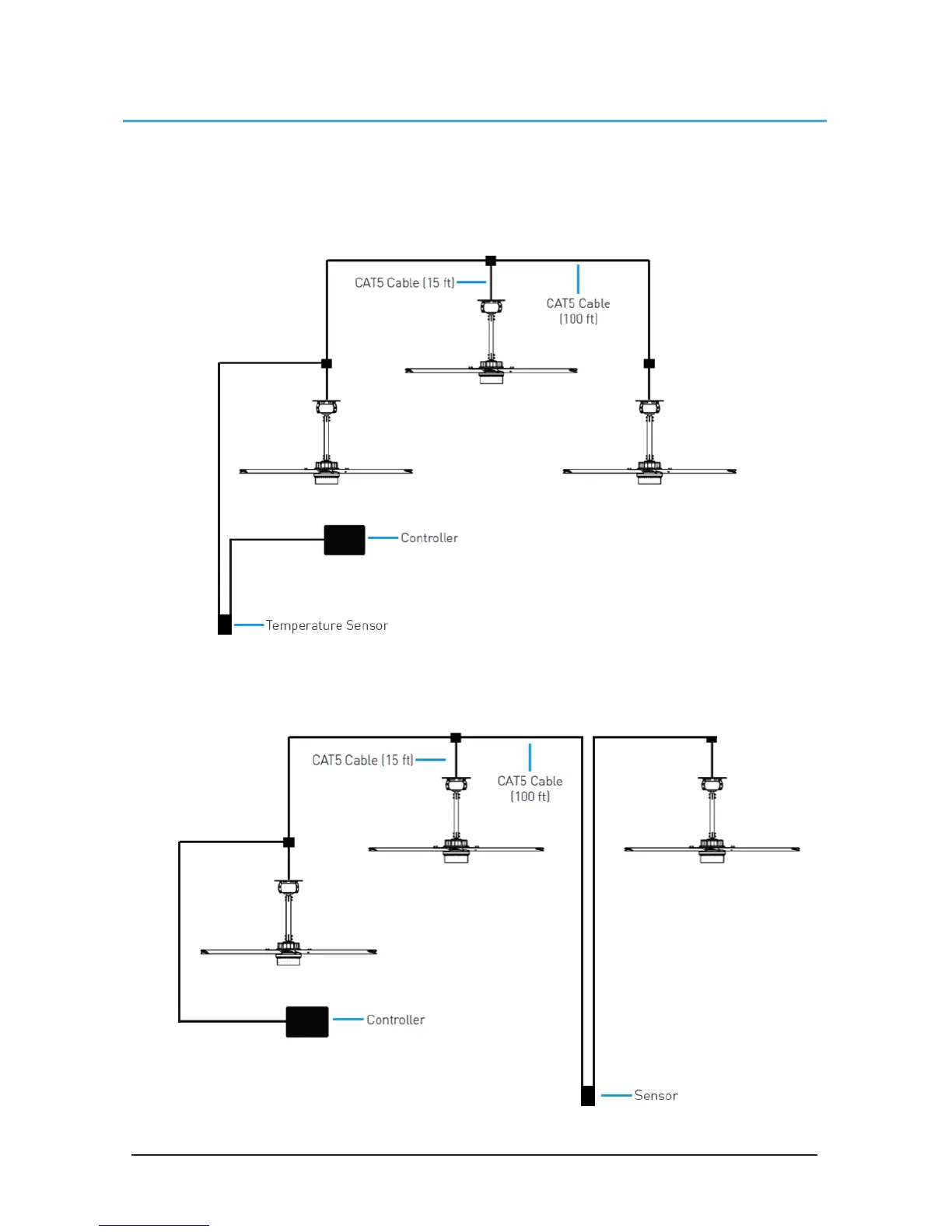

The optional sensor can be placed between two fans or between the controller and a fan as per
the diagrams below. Refer to page 12 for more information.
