YOUR MAFI TRAC
Exterior view <Sattel>
28 Operating manual MT 32 / 36

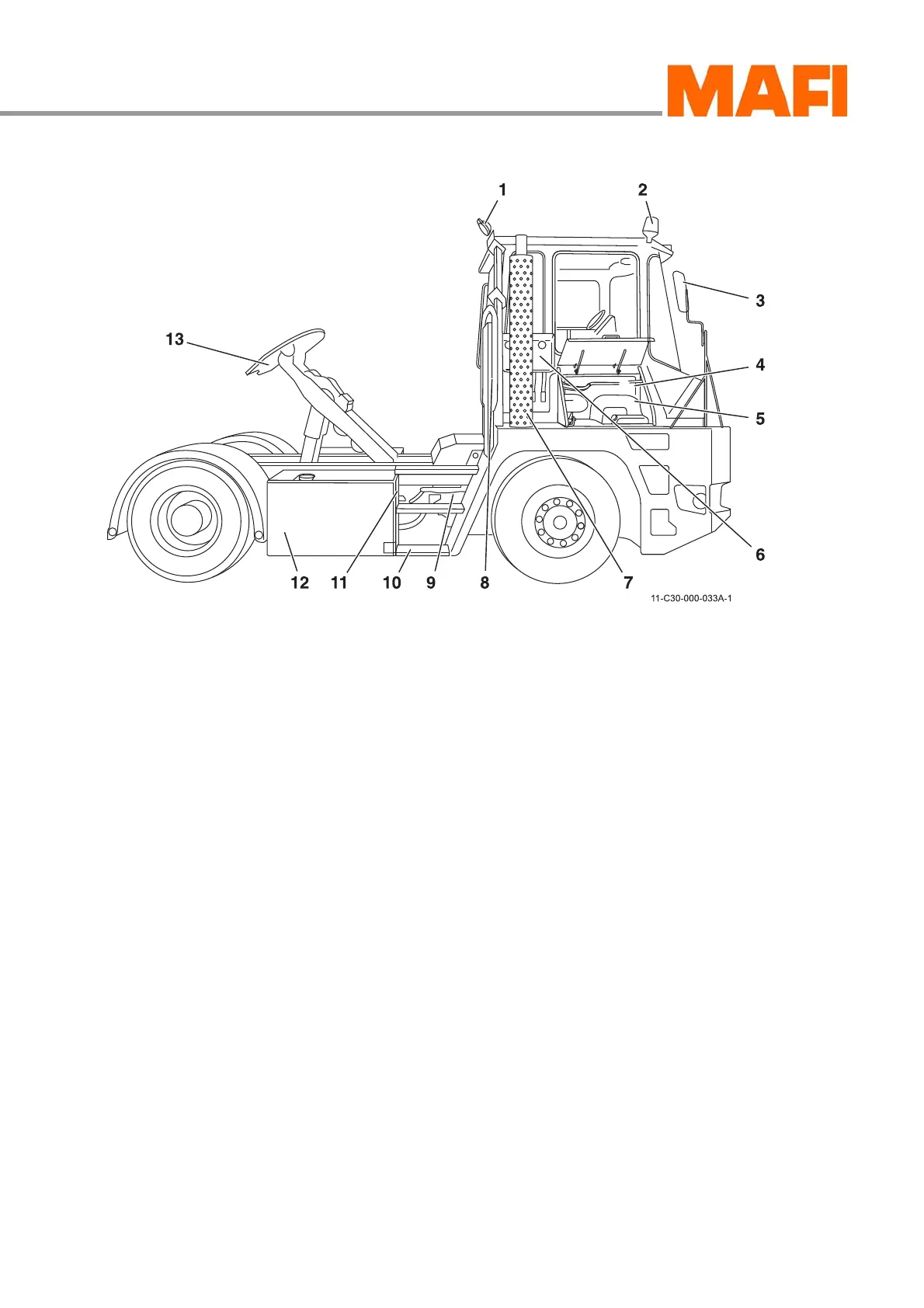

Fig. 2: View of right side <DC>
1 Rear operational spotlight
2 Warning beacon
3 Exterior rear view mirror
4 Motor flap
5 Maintenance area
6 Coolant equilising reservoir
7 Exhaust muffler
8 Connection column (compressed air and electrical connections)
9 Fuel filter
10 Rear ladder
11 Oil viewing window for hydraulic oil
12 Hydraulic tank/fuel tank
13 Fifth wheel with saddle plate
