Exterior view <Sattel>
Operating manual MT 32 / 36 27
Exterior view <Sattel>

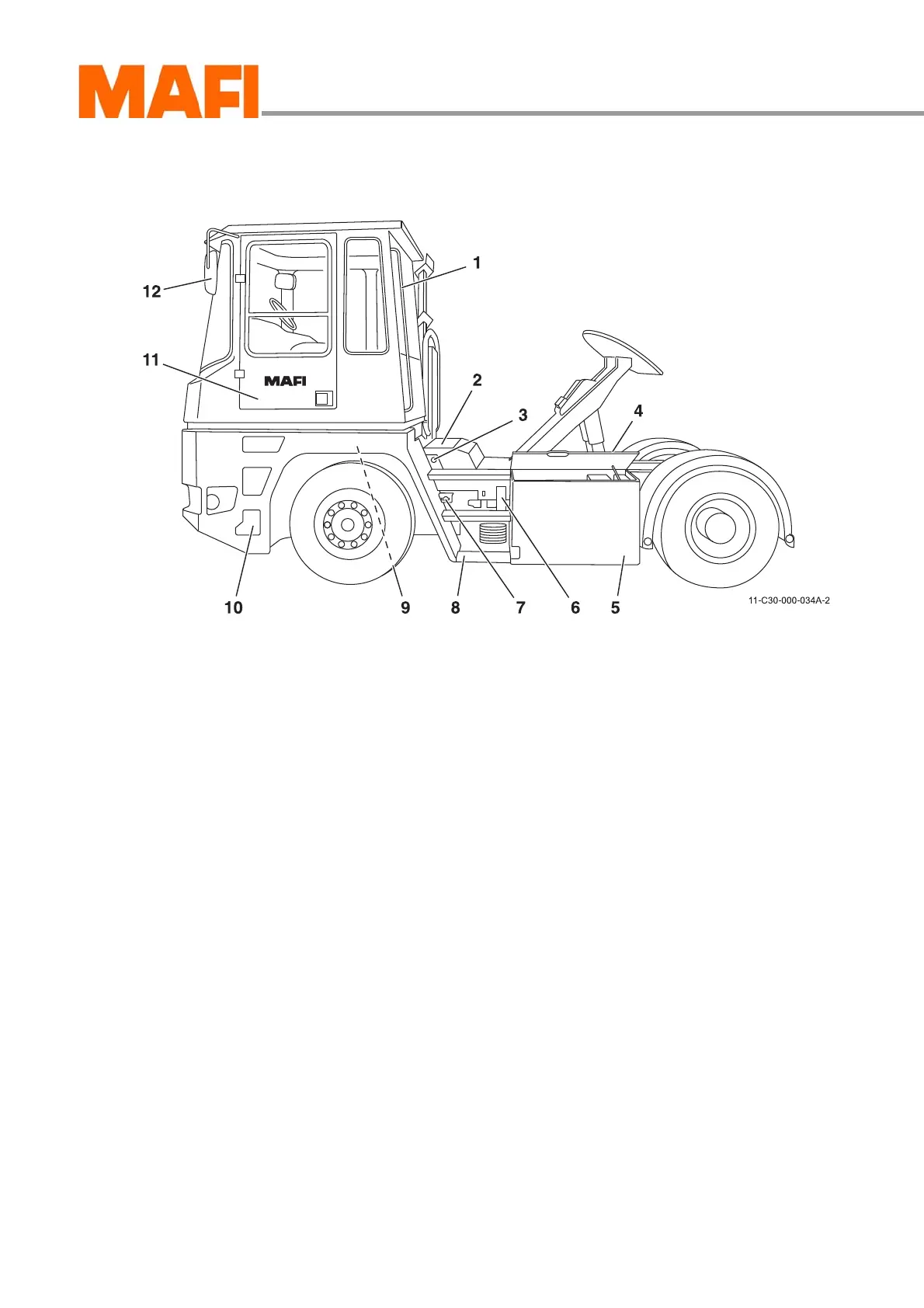

Fig. 1: Side view from driver's side <DC>
1 Rear cabin door
2 Service door
3 Front sling points
4 Cover of pneumatics compartment
5 Pneumatics compartment
6 Hand pump for lifting/lowering the driver's cab
7 Main battery switch
8 Rear ladder
9 Battery compartment (underneath the driver's cab)
10 Front ladder
11 Cabin door on driver's side
12 Exterior rear view mirror
