CONTROL ELEMENTS
Heating/ventilation/air conditioning
48 Operating manual MT 32 / 36

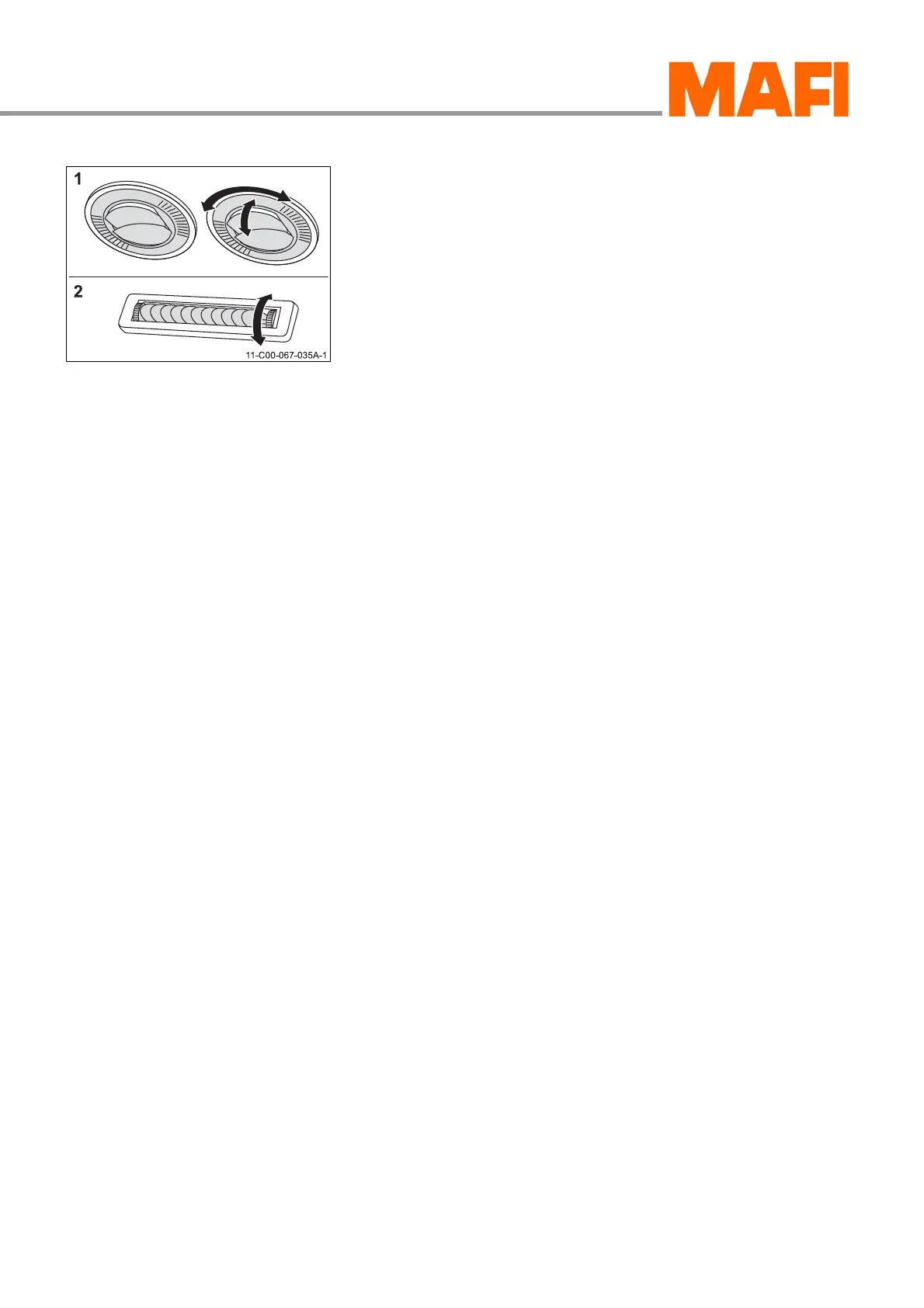

Fig. 25: Adjusting the airflow
1 Main outlet nozzles
2 Drum-type outlet nozzles
Adjusting the airflow direction
X Swivel the outlet nozzles or the fins of the drum-type outlet
nozzles in the desired direction.
Notes on the optimal setting
z To defrost the windows keep the main outlet nozzles
closed.
z To heat the cabin keep the drum-type outlet nozzles
closed.
z If an air conditioner is equipped, direct the air flow of the
main outlet nozzles upwards.
