CONTROL ELEMENTS
Instrument panel
Operating manual MT 32 / 36 69
Joystick fifth wheel/trestle/air suspension<optional>
<3321128>
With the joystick, you can lift and lower the fifth wheel and
anchor or release the trestle on the floor by twist locks.
You can vent the air suspension bellows with the button of the
joystick.

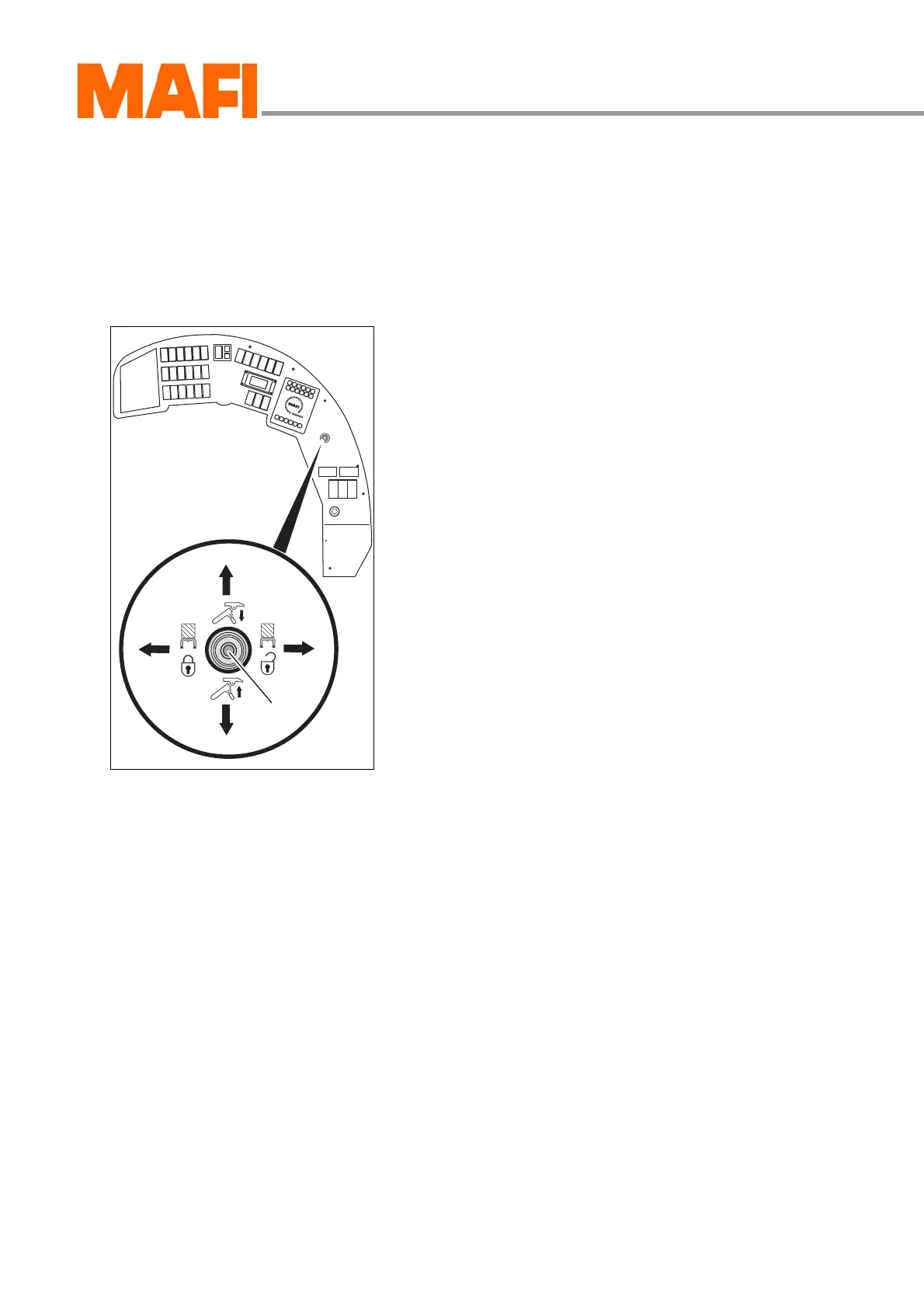

Fig. 57: Joystick fifth wheel/trestle/air suspension
1 Lower fifth wheel coupling
2 Raise fifth wheel coupling
3 Lock the twist locks
4 Unlocking the twist locks
5 “Air suspension” button
Lower fifth wheel coupling
X Press the joystick in the direction of the arrow 1.
3 The fifth wheel coupling lowers.
Raise fifth wheel coupling
X Press the joystick in the direction of the arrow 2.
3 The fifth wheel coupling rises.
Lock the twist locks
X Press the joystick in the direction of the arrow 3.
3 The twist locks of the trestle lock.
Trestle is anchored to the floor.
Unlocking the twist locks
X Press the joystick in the direction of the arrow 4.
3 Unlocking the twist locks of the trestle.
Trestle is released from the floor.
Lower frame rear
X Press the button 5 down and hold it down.
3 The frame is lowered.
After releasing the button, the air suspension bellows re-
inflate and the frame is brought back to normal level.
