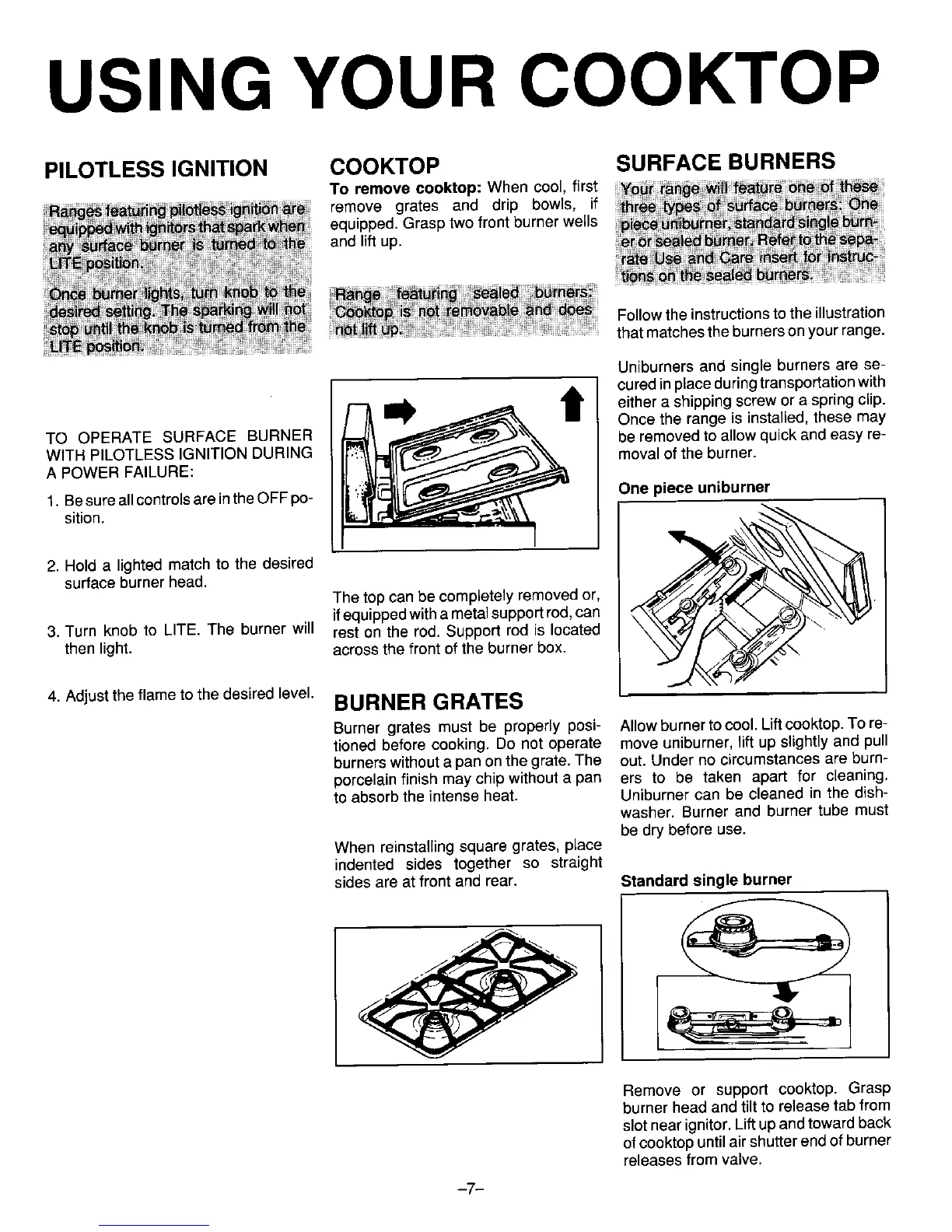

USING YOUR COOKTOP
PILOTLESS IGNITION COOKTOP SURFACE BURNERS
To remove cooktop: When cool, first
remove grates and drip bowls, if
equipped. Grasp two front burner wells
and lift up.
Followthe instructionsto the illustration
that matchestheburnerson your range.
Uniburners and single burners are se-
I t I cured inplace duringtransportationwith
either a shipping screw or a spring clip.F-
r _,._ I Once the range is installed,these may
TO OPERATE SURFACE BURNER _ be removed to allow quick and easy re-
WITH PILOTLESS IGNITIONDURING _ _ moval of the burner.
A POWER FAILURE:
1. Besureall controlsareintheOFF po- One piece uniburner
2. Hold a lighted match to the desired _\
surface burner head.
The top can be completely removed or,
if equippedwith ametal supportrod, can
3. Turn knob to LITE. The burner will rest on the rod. Support rod is located
then light, across the front of the burner box.
4. Adjust the flame to the desired level. BURNER GRATES
Burner grates must be properly posi- Allow burner tocool. Liftcooktop.To re-
tioned before cooking. Do not operate move uniburner, lift up slightly and pull
burners without a pan on the grate. The out. Under no circumstances are bum-
porcelain finish may chip without a pan ers to be taken apart for cleaning.
to absorb the intense heat. Uniburner can be cleaned in the dish-
washer. Burner and burner tube must
be dry before use.
When reinstalling square grates, place
indented sides together so straight
sides are at front and rear. Standard single burner
Remove or support cooktop. Grasp
burner head and tilt to release tab from
slot near ignitor.Liftup andtoward back
of cooktop until airshutterend of burner
releases from valve.
-7-
