10 EN10 EN
FUNCTIONAL OVERVIEW
(
*
) The unit can also be turned on by pressing these buttons.
1. STANDBY-ON
y button
Press to turn the unit on and off.
2. Disc tray
Place a disc when opening the disc tray.
3. OPEN/CLOSE A button*
Press to open or close the disc tray.
4. Display
Refer to “Front Panel Display” on page 14.
5. HDD button
Press to select the HDD output mode.
6. DVD button
Press to select the DVD output mode.
7. STOP C button
Press to stop playback or recording.
8. PLAY B button*
Press to start or resume playback.
9. RECORD I button
Press once to start a recording. Press repeatedly to
start one-touch timer recording.
10. CHANNEL
/ buttons
Press to change the channel up and down.
11. DV-IN jack (L3)
Use to connect the DV output of external device with
a DV cable.
12. AUDIO input jacks (L2)
Use to connect external device with an RCA audio
cable.
13. VIDEO input jack (L2)
Use to connect external device with an RCA video
cable.
14. S-VIDEO input jack (L2)
Use to connect the S-video output of external device
with an S-video cable.
15. Infrared sensor window
Receive signals from your remote control so that you
can control the unit from a distance.

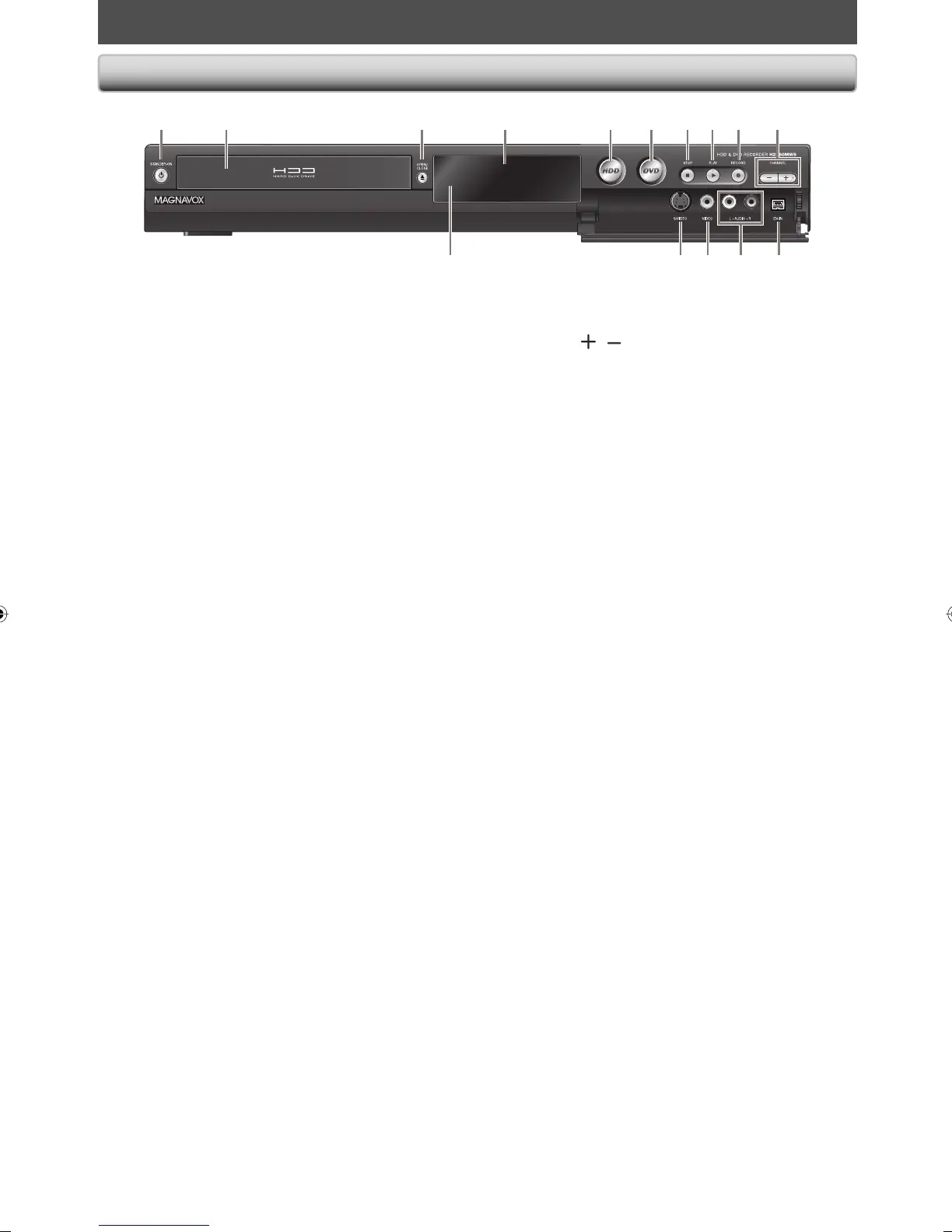

Front Panel
21 3* 5 6 7 8* 9104
1213 111415
E2M01UD_H2160MW9_EN.indd 10E2M01UD_H2160MW9_EN.indd 10 2008/04/15 19:57:292008/04/15 19:57:29
