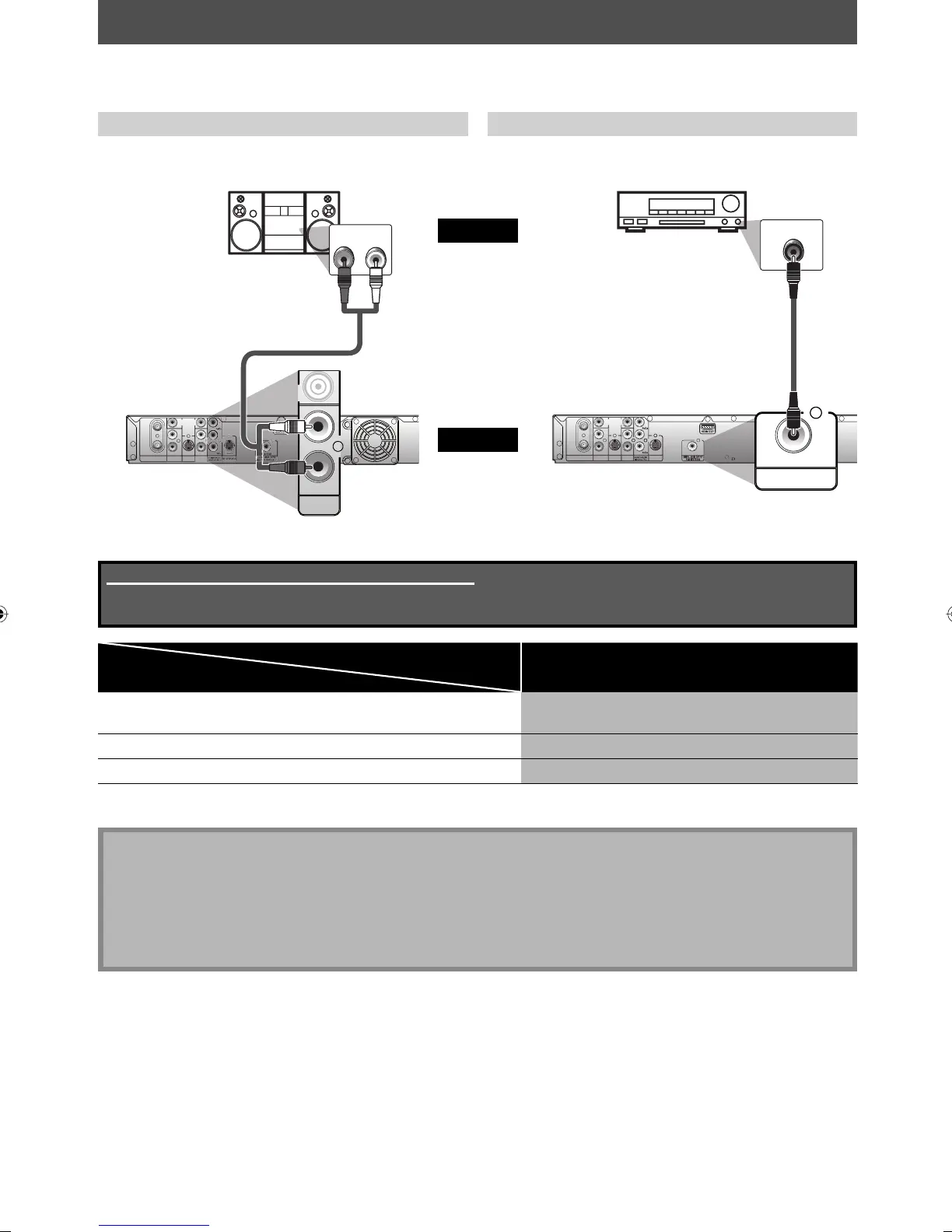

CONNECTION TO AN AUDIO SYSTEM
• When you change the connections, all devices should be turned off.
• Refer to the manual accompanying external devices for more information.
2 Channel Analog Audio Connection Digital Audio Connection
Note
• The audio source on a disc in a Dolby Digital multi channel surround format cannot be recorded as digital sound
by an MD or DAT deck.
• By connecting this unit to a Dolby Digital decoder, you can enjoy high-quality Dolby Digital multi channel
surround sound as heard in the movie theaters.
• Playing back a HDD/DVD using incorrect settings may generate noise distortion and may also damage the
speakers.
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
Please purchase the rest of the necessary cables at your local store.
Setting
Setup >General Setting >Playback >Disc Audio >
Dolby Digital
Connection
If output is Dolby Digital encoded audio, connect to a Dolby
Digital decoder.
Stream
Connecting to an MD deck or DAT deck. PCM
If not connected to any external devices. PCM
* To complete these settings, refer to page 103.
IN
IN
OUT
VIDEO
IN
AUDIO IN
(
L1
)
S-VIDEO
AUDIO OUT
L
R
VIDEO
OUT
ANTENNA
R
L
AUDIO OUT
L
R
VIDEO
OUT
AUDIO OUT
L
R
AUDIO IN
LR
stereo system
audio
analog audio
input jacks
RCA audio cable
AUDIO OUT
Dolby Digital decoder, MD deck or DAT deck
IN
IN
OUT
VIDEO
IN
AUDIO IN
(
L1
)
S-VIDEO S-VIDEO
AUDIO OUT
OUT
L
R
VIDEO
OUT
Y
ANTENNA
R
L
COAXIAL
DIGITAL AUDIO OUTPUT
PCM/BITSTREAM
COAXIAL
COAXIAL
digital audio
coaxial input jack
digital audio coaxial cable
DIGITAL AUDIO OUTPUT
this unit
