Appears when the PBC function
is activated. (Video CD playback
only. Refer to page 64.)

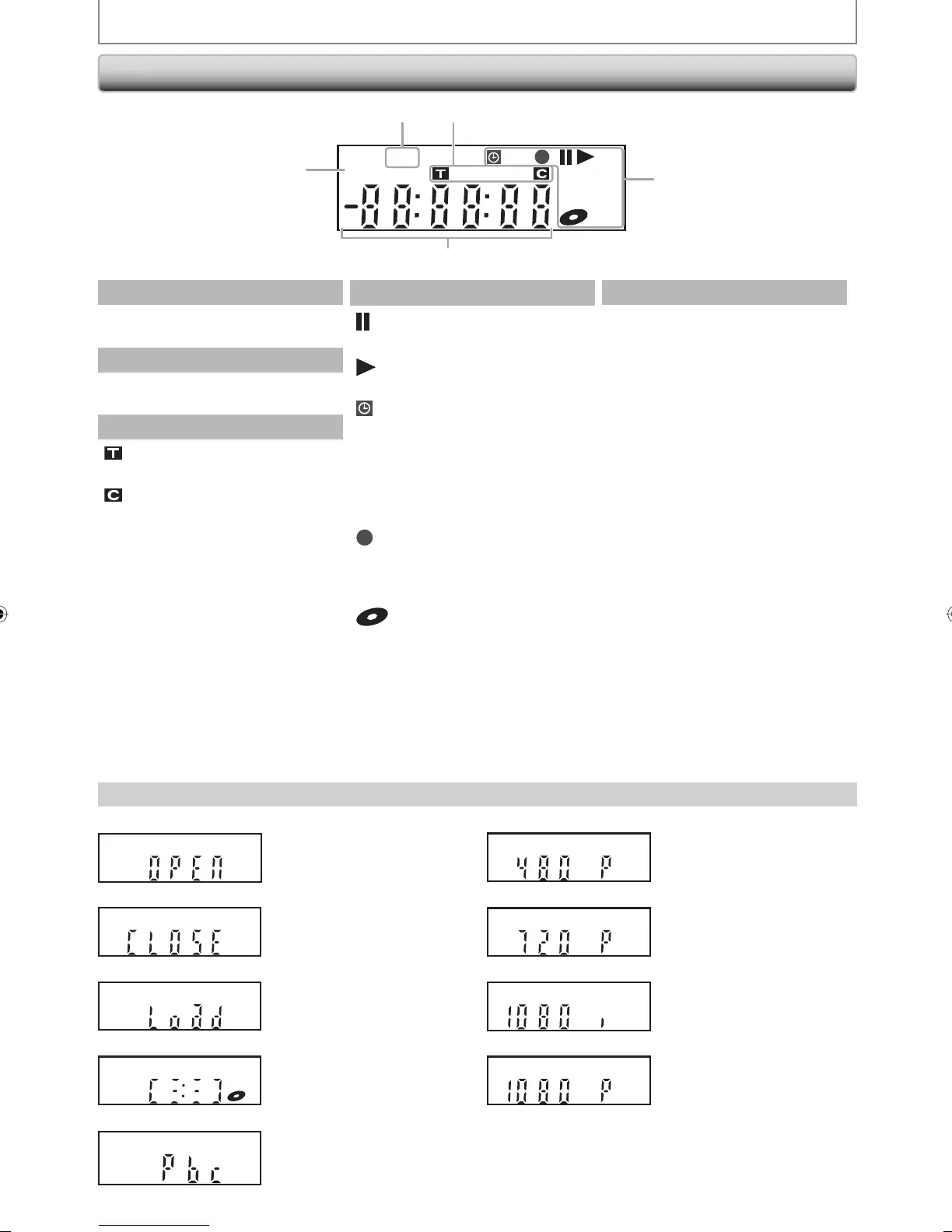

FUNCTIONAL OVERVIEW
Front Panel Display
PM
DTV BS CS DR CD
VCR
HDDDB
DVD
1
5
3
4
2
1.
PM
: Appears in the afternoon
with the clock display.
2.
DT
: Appears when the channel
is in DTV mode.
3. Title / track / file and chapter mark
: Appears when indicating a
title / track / file number.
: Appears when indicating a
chapter number.
4. Current status of the unit
: Appears when playback is
paused.
: Appears when playing back
an HDD or disc.
: Appears when the timer
programming or OTR has
been set and is proceeding.
: Flashes when timer
programming was not
executed because of some
error.
: Appears during recording
process.
: Flashes when a recording
pauses.
: Appears when a disc is in
this unit.
DB
: Appears during dubbing.
HDD
: Appears when the unit is in
HDD mode.
DVD
: Appears when the unit is in
DVD mode.
5. Displays the following
• Elapsed playback time
• Current title / chapter / track /
file number
• Recording time / remaining time
• Clock
• Channel number
• Remaining time for one-touch
timer recording
• Selected HDMI output mode
Appears when data is being
recorded on a disc.
Appears when a disc is loaded
on the disc tray.
Appears when the disc tray is
closing.
Appears when the disc tray is
opening.
Display Message
Appears when HDMI output
mode (720p) is selected.
Appears when HDMI output
mode (1080p) is selected.
Appears when HDMI output
mode (480p) is selected.
Appears when HDMI output
mode (1080i) is selected.
