Magnetek Enrange Flex EX User Manual

Flex 8EX EU System Instruction Manual
March 2012
22 of 37
RELAY FUNCTIONS
1 324 756 8
4. Dip-Switch Settings
a. Interlocked Functions
Interlocked means the two adjacent push buttons can not be activated simultaneously as
they will cancel each other out. Interlocked settings are usually applied to a crane’s
forward and reverse motions. Each dip-switch on the decoder module corresponds to
one (1) motion or two (2) adjacent push buttons (refer to Fig. 14 & 15 below). Only the
first seven (7) dip-switch positions are used (counting from left to right); the 8
th
dip-switch
position (far right) is not used.

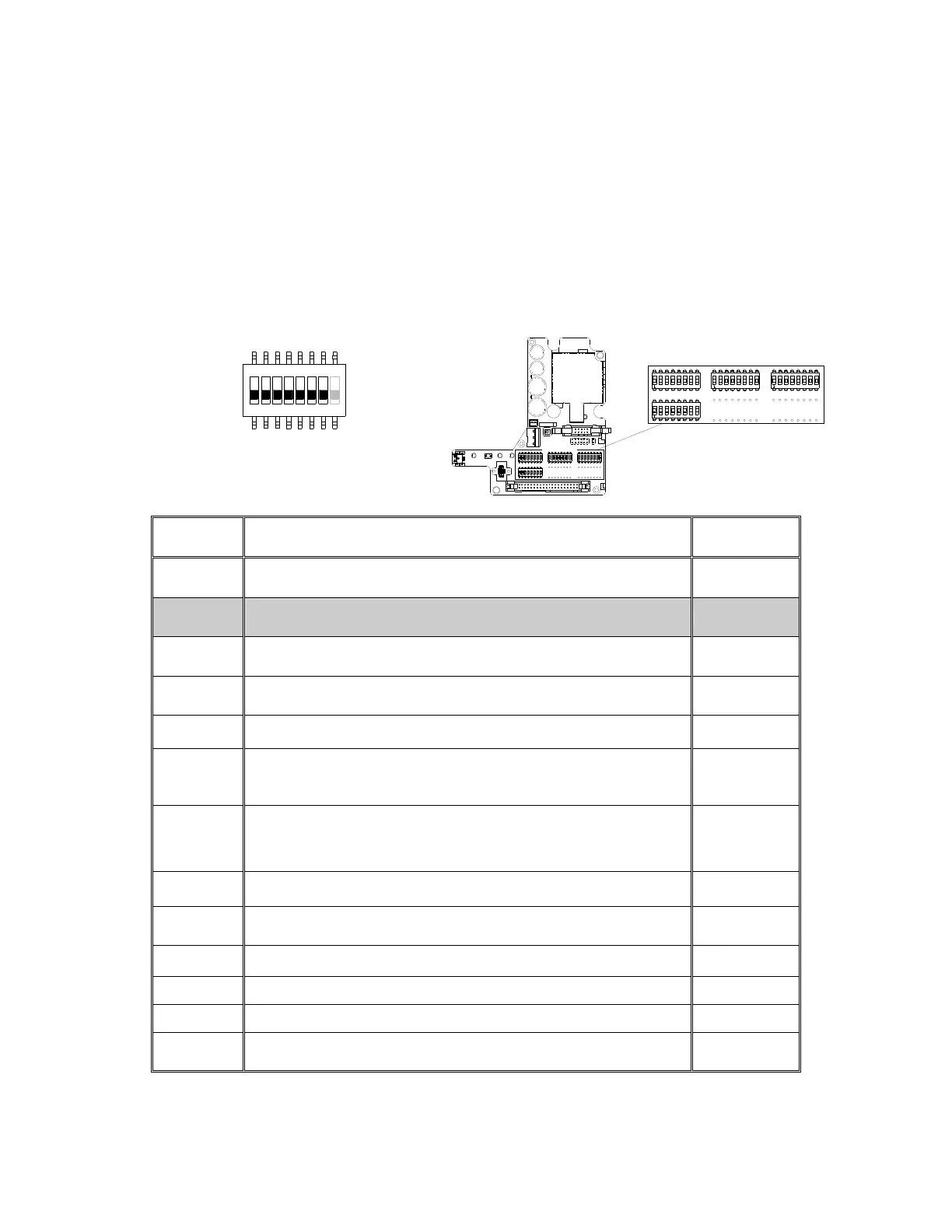

(Fig. 14) (Fig. 15)
▇ Manufacture preset
Dip
Settings
Function Descriptions
# of Relays
Used
0000000 Normal (single speed only, F2 & R2 relays not used).
2
0000001
Closed/Closed Relay Action at 2
nd
Speed (separate 2
nd
speed
relay).
4
0000010
Closed/Closed Relay Action at 2
nd
Speed (shared 2
nd
speed
relay).
3
0000011
Opened/Closed Relay Action at 2
nd
Speed (separate 2
nd
speed
relay).
4
0000110 On (right button) & Off (left button).
2
0001000
On & Off affected by the E-stop command. When E-stop
command is initiated, the Off relay is activated.
2
0001001
On + Start / Off + Start -- Prior to pressing the button you must
first rotate and hold the power key switch at START position to
activate On or Off relays.
2
0001010 FWD/REV toggled (latched).
2
0001011
FWD/REV toggled (latched) and affected by the E-stop
command.
2
0000111 Safety Magnet On & Off.
2
0100001 Closed/Closed + Brake.
4
0100010 Closed/Closed Relay Action + Brake.
3
0100011 Opened/Closed Relay Action + Brake.
4
