Magnetek Enrange Flex EX - Internal Illustration

Flex 8EX EU System Instruction Manual
March 2012
5 of 37

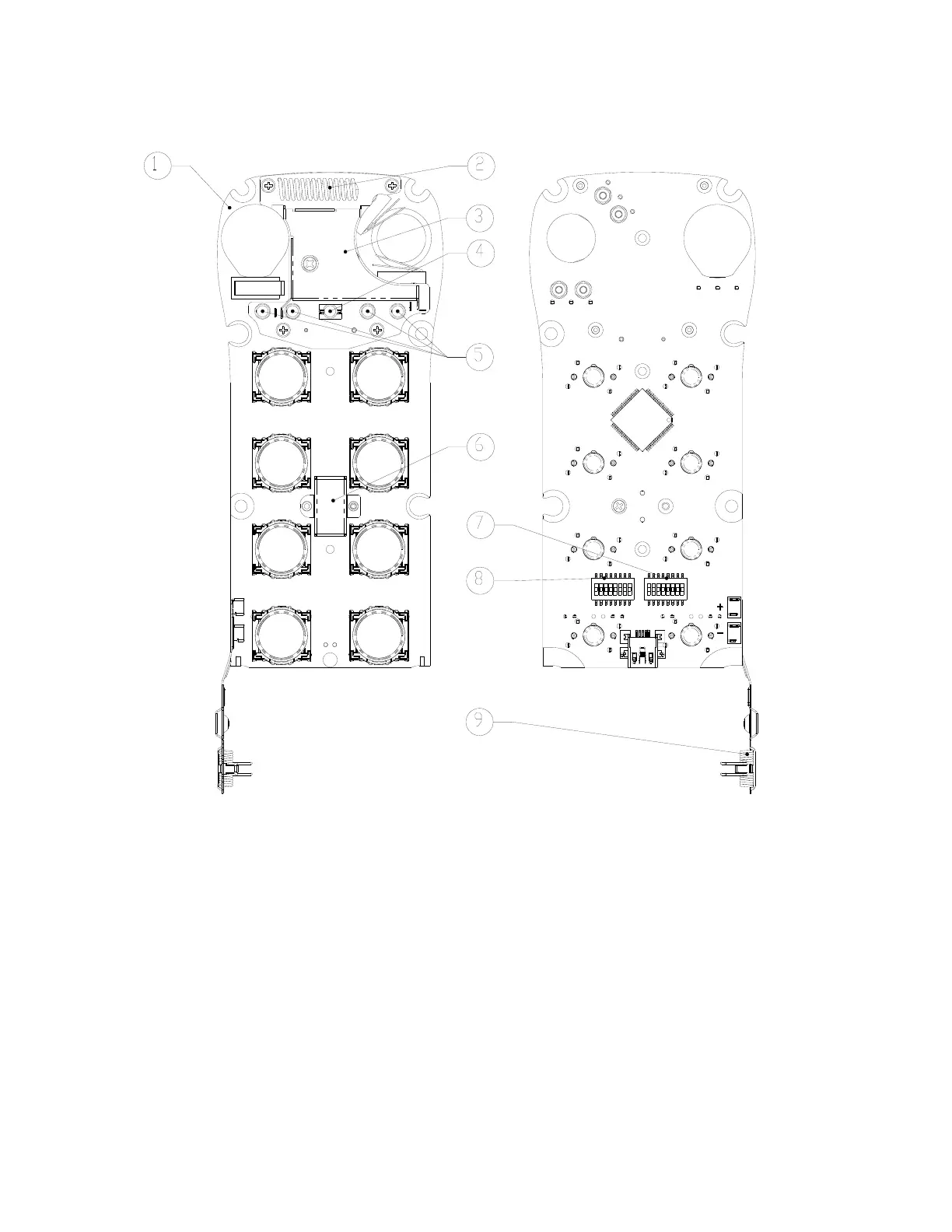

2. Internal Illustration
(Fig. 03) (Fig. 04)
1. Encoder Board 6. I-CHIP
2. Arial Antenna 7. Function Dip-Switch
3. Transmitting Module 8. Channel Dip-Switch
4. Status LED Display 9. Battery Contact Mechanism
5. Function LED Displays
