3.4.1 INDIVIDUAL OUTPUT CONFIGURATION

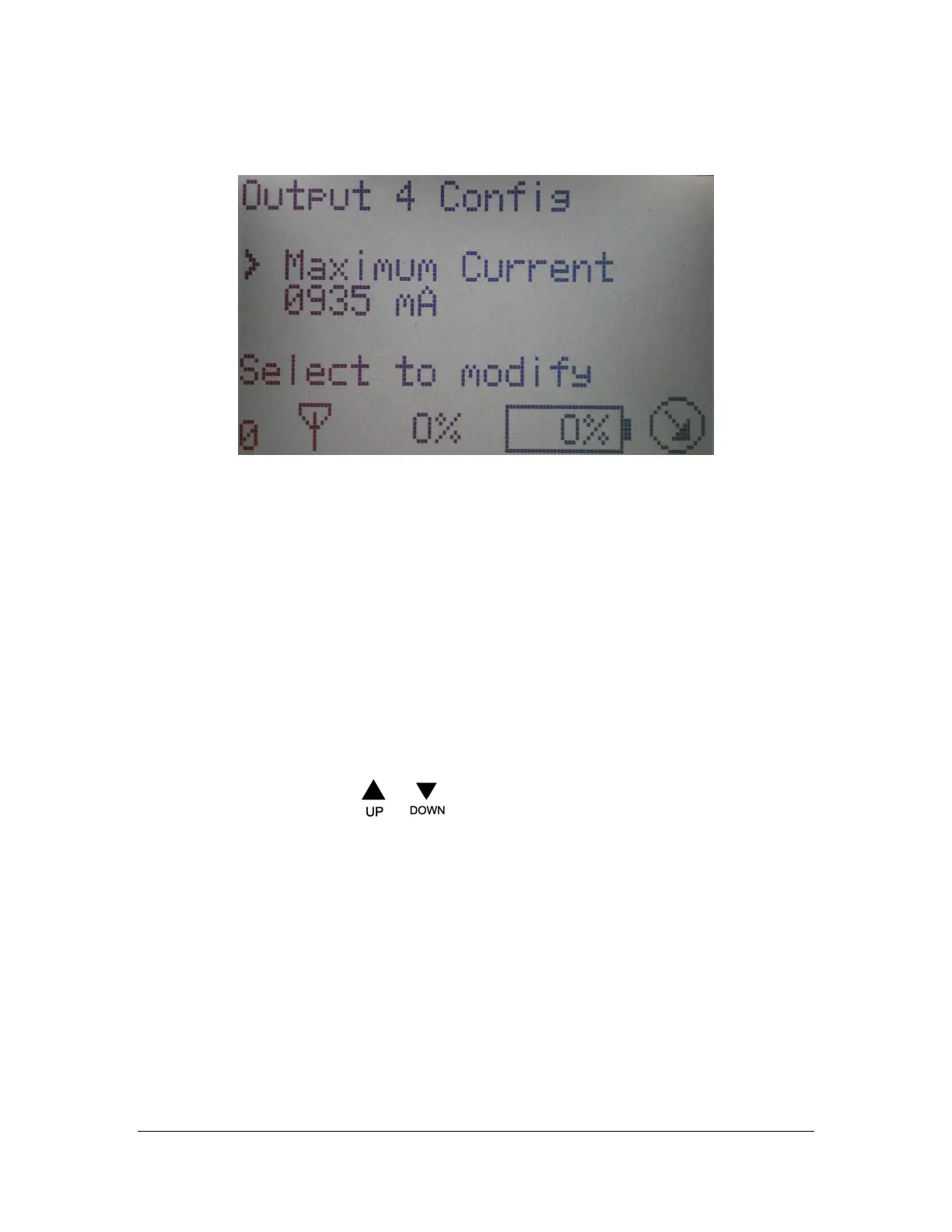

Figure 14: Individual Output Configurations
Individual Output Configuration: Once an individual output is selected, the following
parameters may be changed:
• Config Type – This menu option allows the user to set the MHR outputs up for the
application in which it is being used. The config type options are:
• Unused
• Digital Output - Momentary
• Current Compensated (closed loop PWM)
• Open Loop PWM
• Digital Input
• Digital Output - Latched
NOTE: Select Unused to disable an output.
When the Config Type option is selected from the menu, the configuration types are user-
selectable by using the
or buttons.
