RX Access Code and RX Channel: This second screen displays what the RX Access Code and
Channel the receiver is set to.
The Access Code indicates the code needed by the Transmitter to control the Receiver. If the
Transmitter and Receiver Access Code do not match, no communication will occur.
NOTE: During initialization of the MHR, both the PWR/COMM and STATUS/ERR LEDs will
briefly illuminate. This is a normal function of the initialization process for the MHR.
4.2 NORMAL OPERATING SCREEN

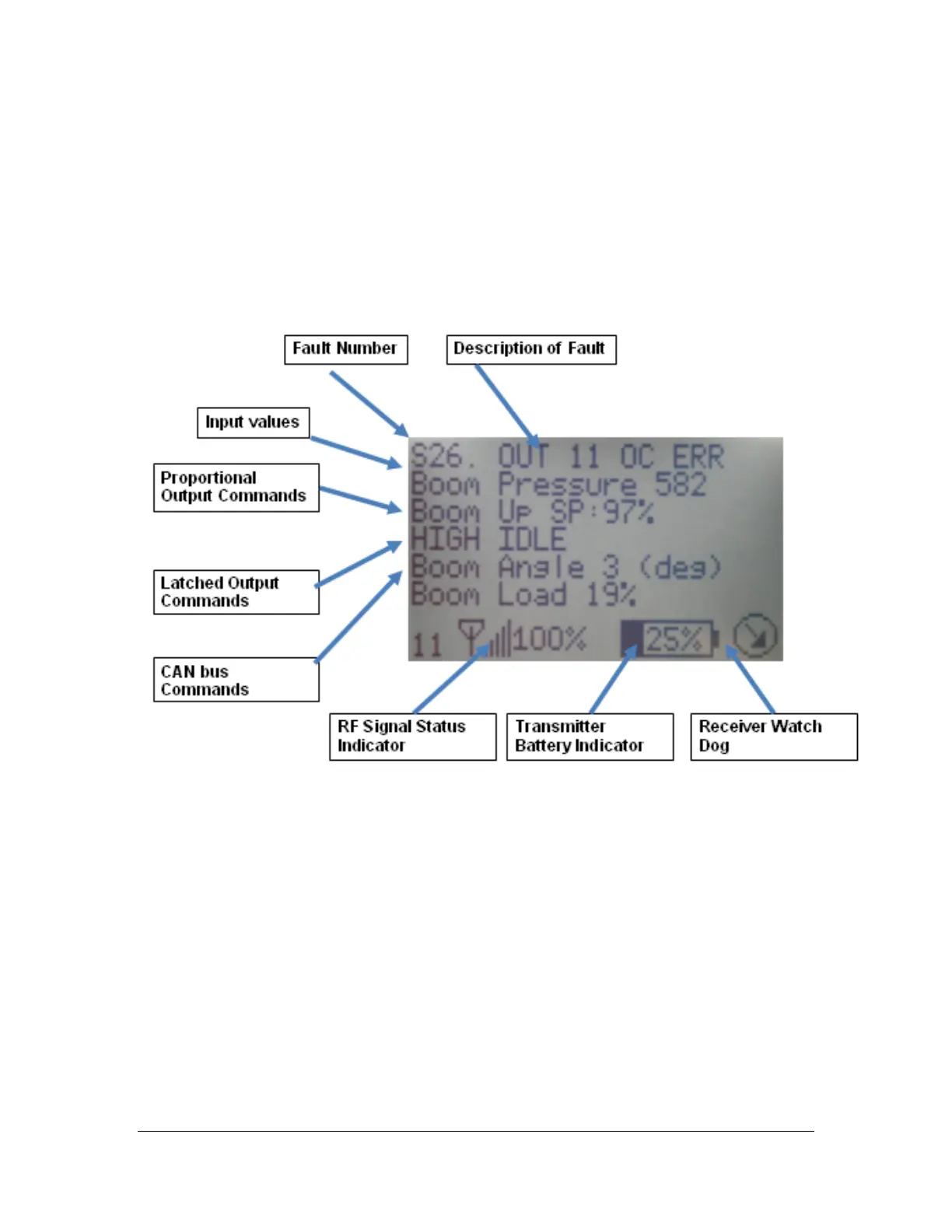

Figure 19: Normal Operating Screen
To Next Page
