Magnetrol B60 - Replacement Parts; Standard Flanged External Cage Models

18
46-605 Flanged External Cage Float Actuated Liquid Level Switches

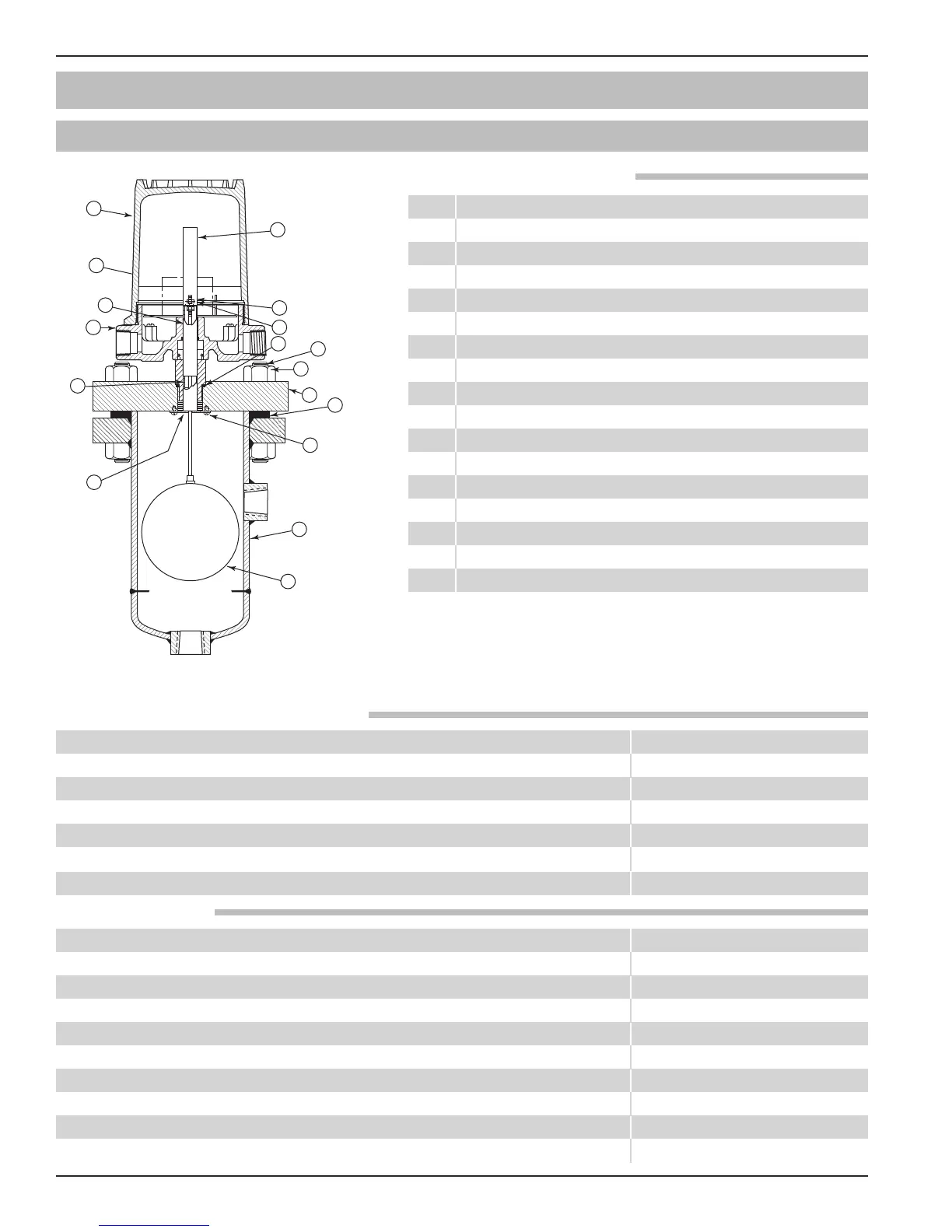

6.1.1 Parts identification
6
1
3
2
9
15
14
4
8
5
7
12
1
0
11
17
1
6
13
6.1.3 Model C29
Housing cover Refer to Section 6.1.2
Housing base Refer to Section 6.1.2
Switch mechanism Refer to Section 6.1.2
Enclosing tube kit: includes items 4 and 5 ➀ 089-5933-004
Enclosing tube gasket 012-1204-001
Head flange kit: includes items 5, 6, 7, 8, and 9 089-4203-001
Flange gasket 012-1301-025
Float chamber kit: includes items 7, 8, 9, and 10 089-4603-001
Float and stem assembly: includes items 9, 11, 12, 13, 14, 15, 16, and 17 ➀ 089-3257-001
Complete control less float chamber (10), bolts (7), and nuts (8) √ 089-6567-003
Series Type Bulletin #
Dry contact B, C, D 42-683
Hermetically sealed F 42-683
Hermetically sealed HS 42-694
Bleed type pneumatic J 42-685
Non-bleed type pneumatic K 42-686
High temperature 8, 9, R 42-799
6.1.2 Switch and housing reference
IMPORTANT:
When ordering, please specify:
A. Model and serial number of control.
B. Replacement assembly (kit) part number.
6.0 Replacement Parts
6.1 Standard Flanged External Cage Models
1 Housing cover
2 Housing base
3 Switch mechanism
4 Enclosing tube
5 Enclosing tube gasket
6 Head flange
7 Studs
8 Hex nuts
9 Flange gasket
10 Float chamber
11 Stop strap
12 Screws
13 Float and stem assembly
14 Jam nuts
15 Guide washer
16 Attraction sleeve
17 Stop tube (not required for Models C29 and D30)
