46-605 Flanged External Cage Float Actuated Liquid Level Switches
6.2.1 Parts identification
Series Type Bulletin #
Dry contact B, C, D 42-683
Hermetically sealed F 42-683
Hermetically sealed HS 42-694
Bleed type pneumatic J 42-685
Non-bleed type pneumatic K 42-686
High temperature 8, 9, R 42-799
6.2.2 Switch and housing reference
IMPORTANT:
When ordering, please specify:
A. Model and serial number of control.
B. Replacement assembly (kit) part number.




































19
18
2 0
11
10
9
4
2
14
3




































12
5
8
7
6
13
1
15
17
16

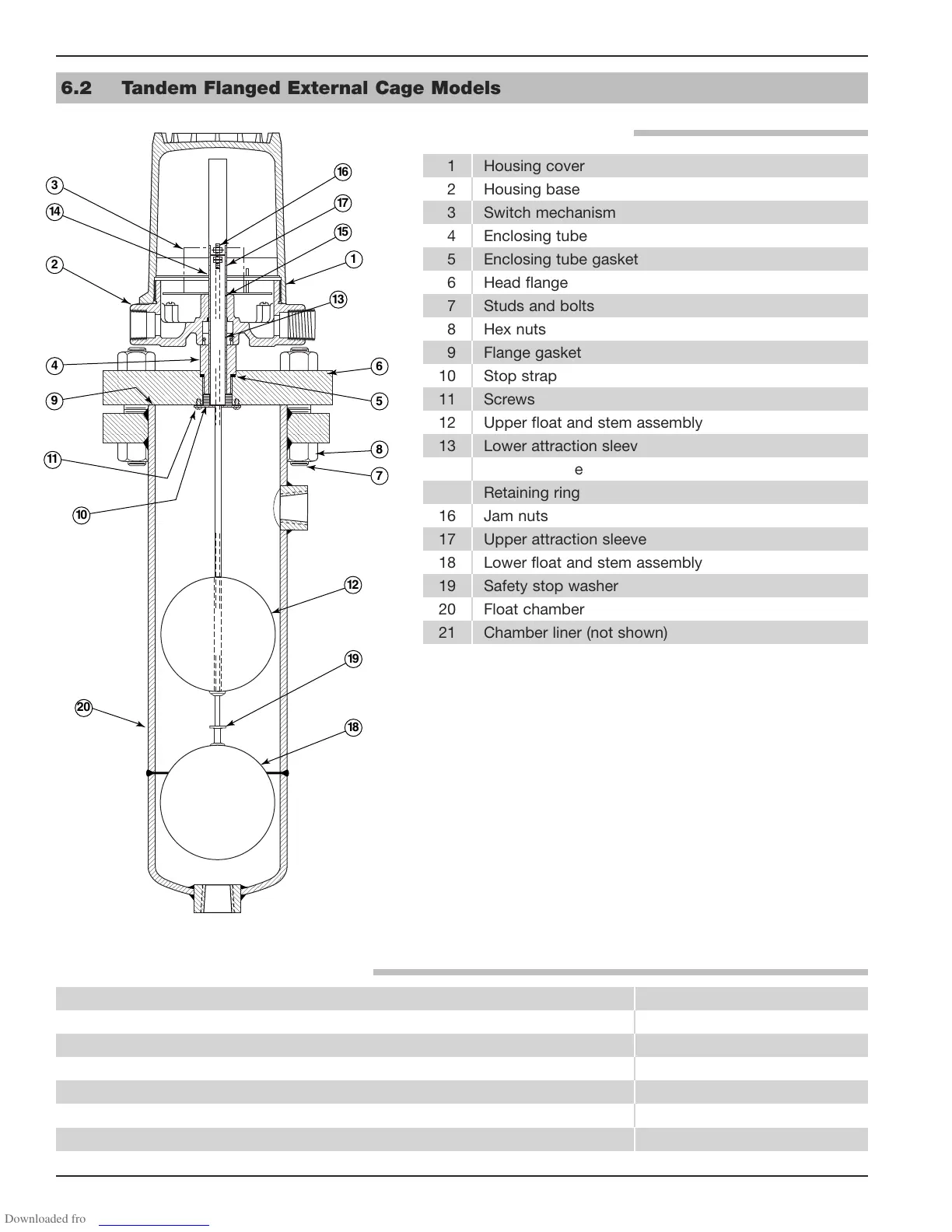

6.2 Tandem Flanged External Cage Models
1
Housing cover
2
Housing base
3
Switch mechanism
4 Enclosing tube
5 Enclosing tube gasket
6 Head flange
7 Studs and bolts
8 Hex nuts
9 Flange gasket
10 Stop strap
11 Screws
12 Upper float and stem assembly
13 Lower attraction sleeve
14 Spacer washer
15 Retaining ring
16 Jam nuts
17 Upper attraction sleeve
18 Lower float and stem assembly
19 Safety stop washer
20 Float chamber
21 Chamber liner (not shown)
