Mahindra 3016 User Guide

8

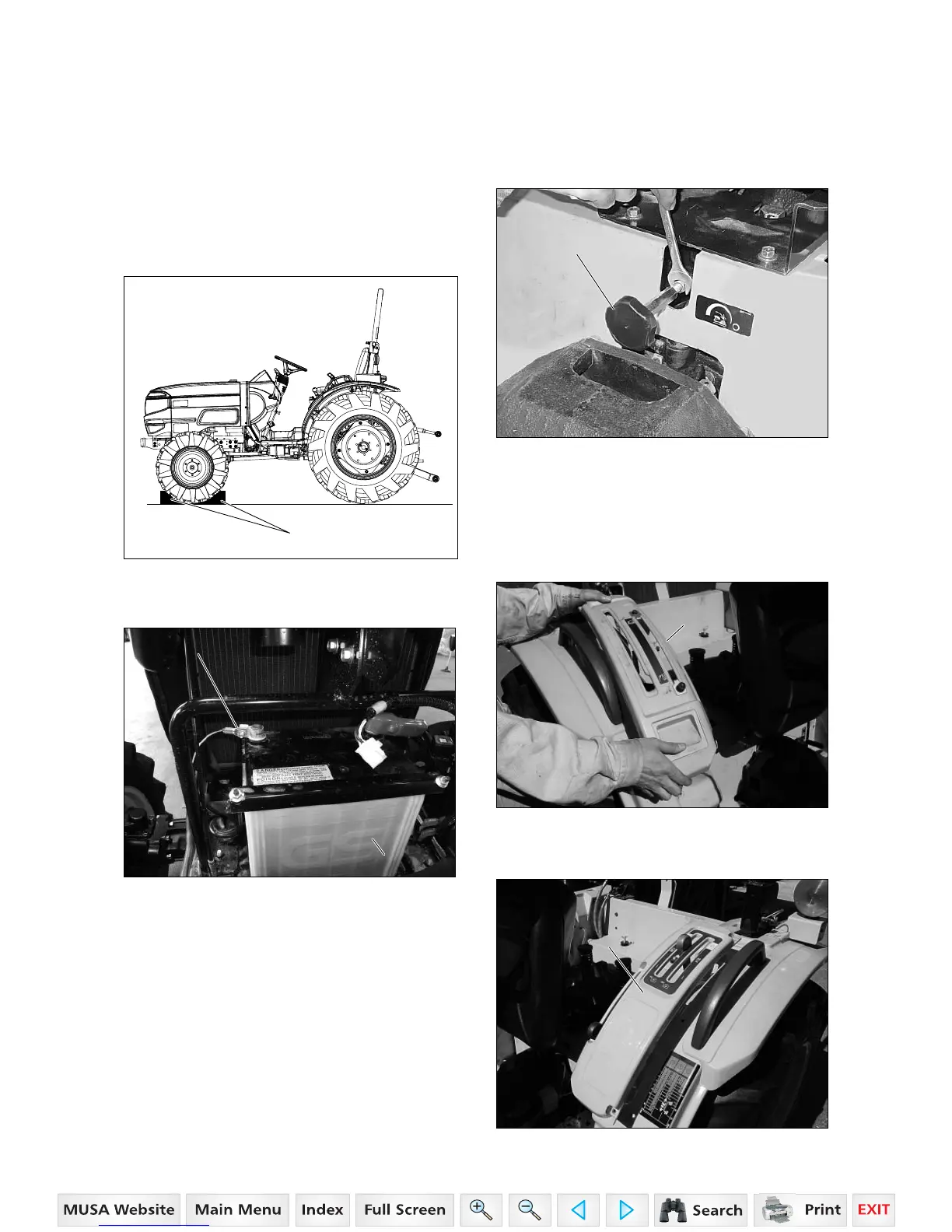

1.Remove the knob.
2.
2. Remove the R.H. lever guide by removing
the four bolts (M6x16mm, M6x20mm) and
a nut (M6).
In the case of gear specifi cations, discon-
nect the harness of the IND PTO switch.
3.
3. Remove the L.H. lever guide by removing
the four bolts (M6x16mm) and a nut (M6).
DISASSEMBLING SEAT
BRACKET AND COVER
KNOB
KNOB
R.H. LEVER GUIDE
R.H. LEVER GUIDE
L.H. LEVER GUIDE
L.H. LEVER GUIDE
BEFORE IT WORKS
1. Place the tractor on level and hard ground,
put the range shift lever in LOW position,
apply the park brakes and stop the en-
gine. Put blocks in front of and behind of
the front wheels.
2. Disconnect the ground cable from the bat-
tery.
GROUND CABLE
GROUND CABLE
BATTERY
BATTERY
BLOCKS
BLOCKS

Mahindra 3016 Specifications

General

Engine Power	30 HP
Engine Cylinders	3
Drive Type	4WD
Engine Type	Diesel
Tire Size (Front)	7-16
Transmission	8 Forward / 2 Reverse
Fuel Tank Capacity	32 L
Tire Size (Rear)	12.4-24
