Mahindra 3016 User Guide

15

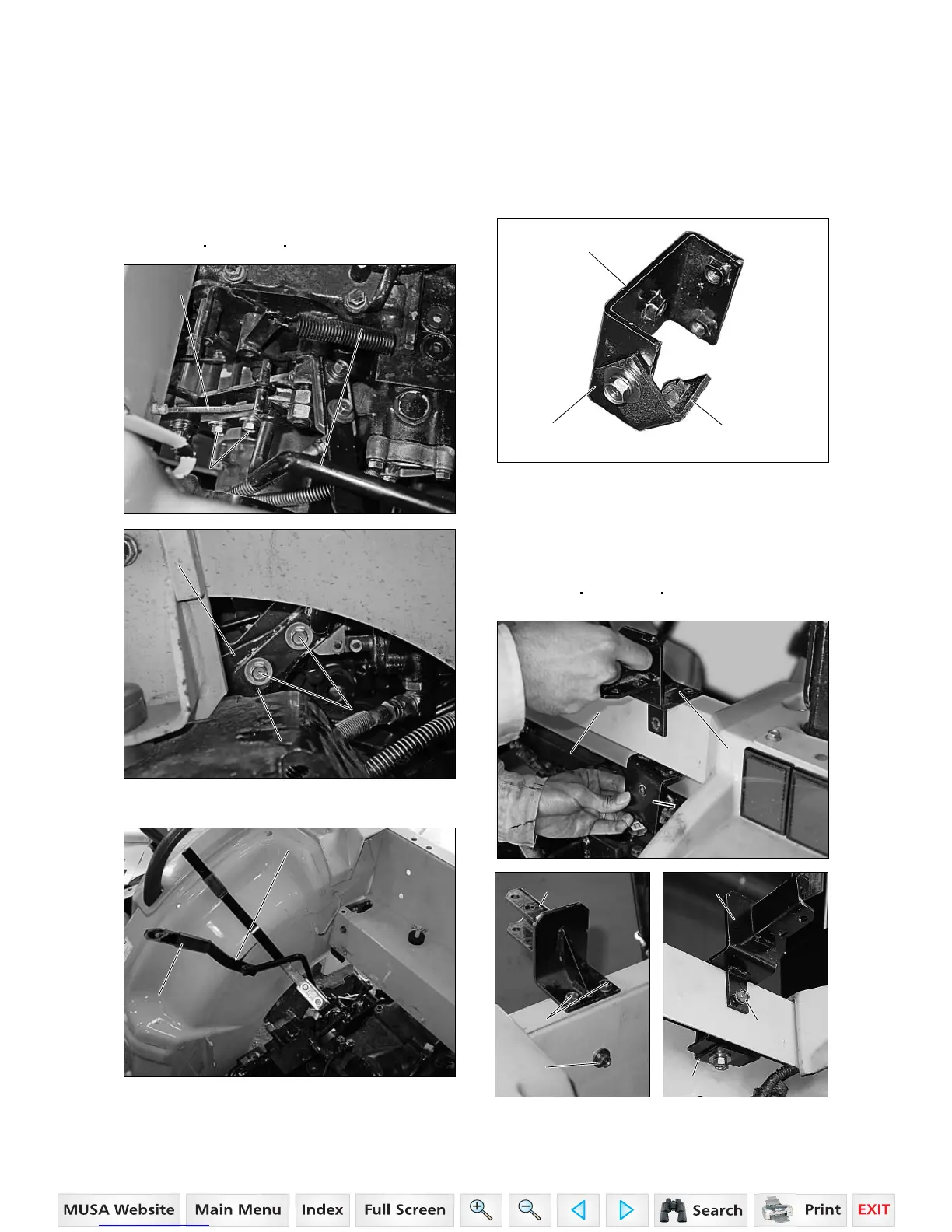

INSTALLING POSITION
CONTROL LEVER
1. Install position control lever to the position
arm with two bolts (M8x25mm).
Tighten the bolts to the following torque.
18-22Lbfft (25-29Nm)
2.Install tube to the position control lever.
INSTALLING BRACKET
1. Install bracket (C) to the bracket (B) with
bolt (M8x16mm).
2. Install bracket (A) and bracket (B),(C) to
the center cover with four bolts (M8x20 mm
: 3pcs, M8x16mm:1pcs).
Tighten the bolts to the following torque.
18-22Lbfft (25-29Nm)
BOLTS
BOLTS
POSITION CONTROL
POSITION CONTROL
LEVER
LEVER
POSITION ARM
POSITION ARM
BOLTS
BOLTS
POSITION CONTROL LEVER
POSITION CONTROL LEVER
POSITION ARM
POSITION ARM
POSITION CONTROL LEVER
POSITION CONTROL LEVER
TUBE
TUBE
BRACKET (C)
BRACKET (C)
BRACKET (B)
BRACKET (B)
BOLT
BOLT
(M8x16mm)
(M8x16mm)
BRACKET (A)
BRACKET (A)
BRACKET (B),(C)
BRACKET (B),(C)
CENTER COVER
CENTER COVER
BRACKET (B),(C)
BRACKET (B),(C)
BOLT
BOLT
(M8x20mm)
(M8x20mm)
BOLT
BOLT
(M8x16mm)
(M8x16mm)
BOLT
BOLT
(M8x20mm)
(M8x20mm)
BRACKET (A)
BRACKET (A)
BRACKET (A)
BRACKET (A)

Mahindra 3016 Specifications

General

Engine Power	30 HP
Engine Cylinders	3
Drive Type	4WD
Engine Type	Diesel
Tire Size (Front)	7-16
Transmission	8 Forward / 2 Reverse
Fuel Tank Capacity	32 L
Tire Size (Rear)	12.4-24
