12

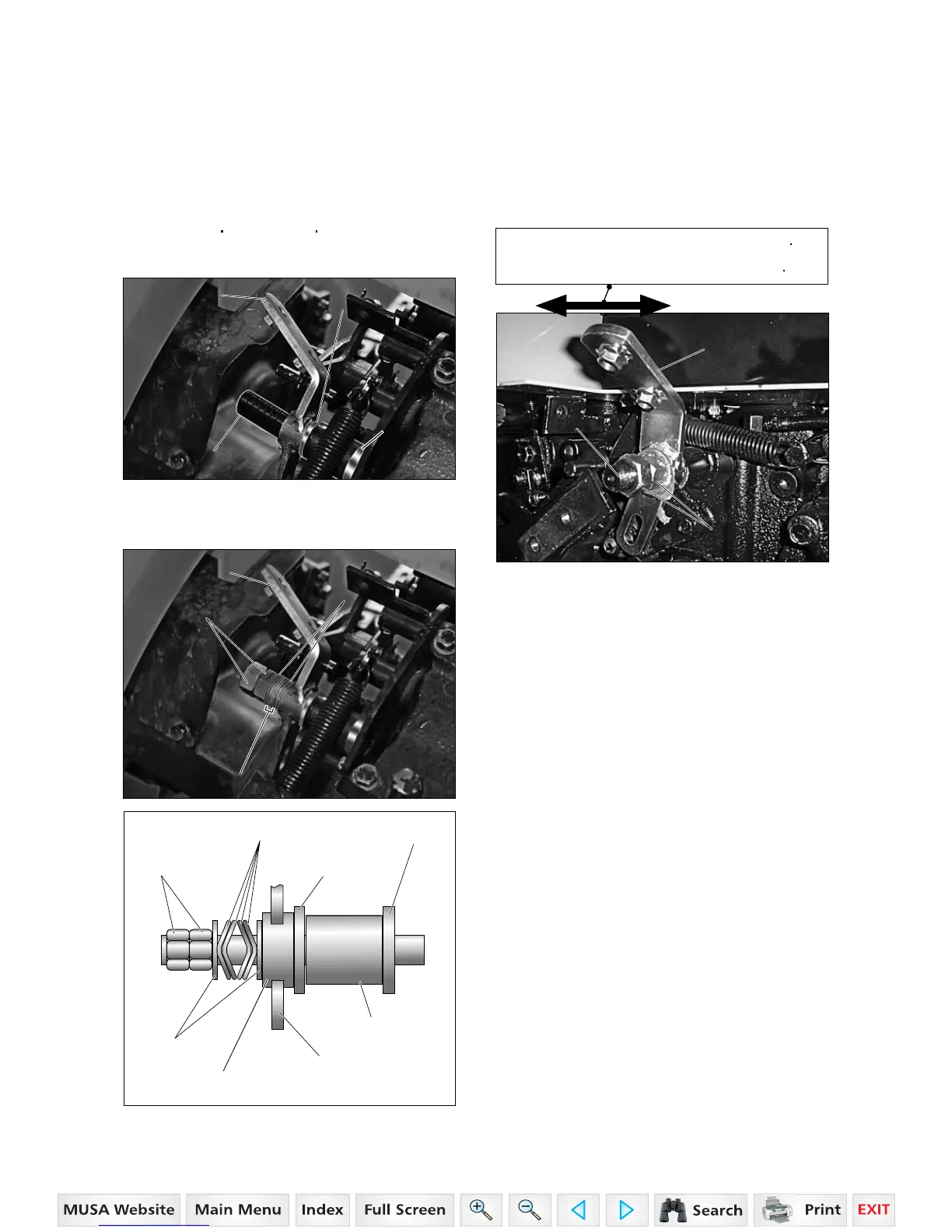

3.Install liner, conical spring and nuts (M16)
to the shaft.
INSTALLING AUX. ARM
1. Install washer (M16x6mm) and shaft
(M16x25mm) to the hydraulic housing.
Tighten the shaft to the following torque.
112-127Lbf ft (152-172Nm)
2. Install
collar
collar and Aux. arm to the shaft.
AUX. ARM
AUX. ARM
NUTS(M16)
NUTS(M16)
CONICAL SPRING
CONICAL SPRING
NUTS(M16)
NUTS(M16)
COLLAR
COLLAR
LINER
LINER
SHAFT
SHAFT
AUX. ARM
AUX. ARM
WASHER
WASHER
APPLY GREASE.
APPLY GREASE.
CONICAL SPRING
CONICAL SPRING
LINER
LINER
4. Tighten the two nuts on the shaft to ad-
just to the following multiplying the fric-
tional force at the Aux. arm.
NUTS(M16)
NUTS(M16)
AUX. ARM
AUX. ARM
SHAFT
SHAFT
AUX. ARM
AUX. ARM
SHAFT
SHAFT
COLLAR
COLLAR
WASHER
WASHER
FRICTIONAL FORCE:1.44-2.16Lbfft
(1.96-2.94N
m)

Mahindra 3016 Specifications

General

Engine Power	30 HP
Engine Cylinders	3
Drive Type	4WD
Engine Type	Diesel
Tire Size (Front)	7-16
Transmission	8 Forward / 2 Reverse
Fuel Tank Capacity	32 L
Tire Size (Rear)	12.4-24
