10

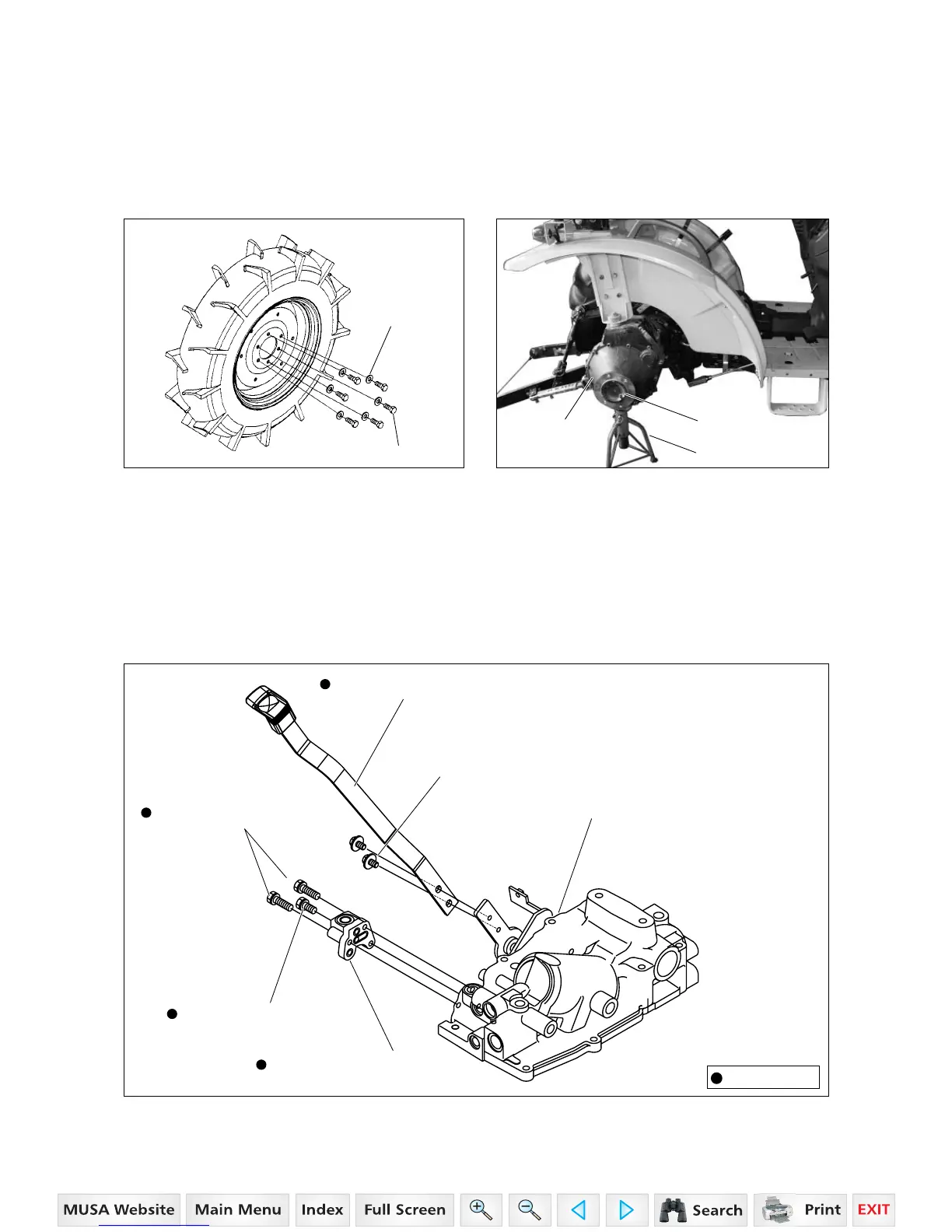

DISASSEMBLING REAR WHEEL R.H.
1. Jack up the R.H. rear axle and remove the R.H. rear wheels by removing the six bolts
(M14x30mm), six washers from the axle hub.
WASHERS
WASHERS
BOLTS
BOLTS
BOLTS(M8x60mm)
BOLTS(M8x60mm)
POSITION CONTROL LEVER
POSITION CONTROL LEVER
BOLTS(M8x16mm)
BOLTS(M8x16mm)
HYDRAULIC HOUSING
HYDRAULIC HOUSING
BOLTS(M8x30mm)
BOLTS(M8x30mm)
HYDRAULIC BLOCK
HYDRAULIC BLOCK
AXLE HUB
AXLE HUB
REAL AXLE
REAL AXLE
JACK
JACK
DISCONNECTING LEVER AND HYDRAULIC BLOCK
1. Remove the position control lever by removing the two bolts (M8x16mm) from the hydrau-
lic housing.
2. Remove the hydraulic block by removing the three bolts (M8x60mm:2pcs,M8x30mm:1pcs)
from the hydraulic housing.
is not used.
is not used.
