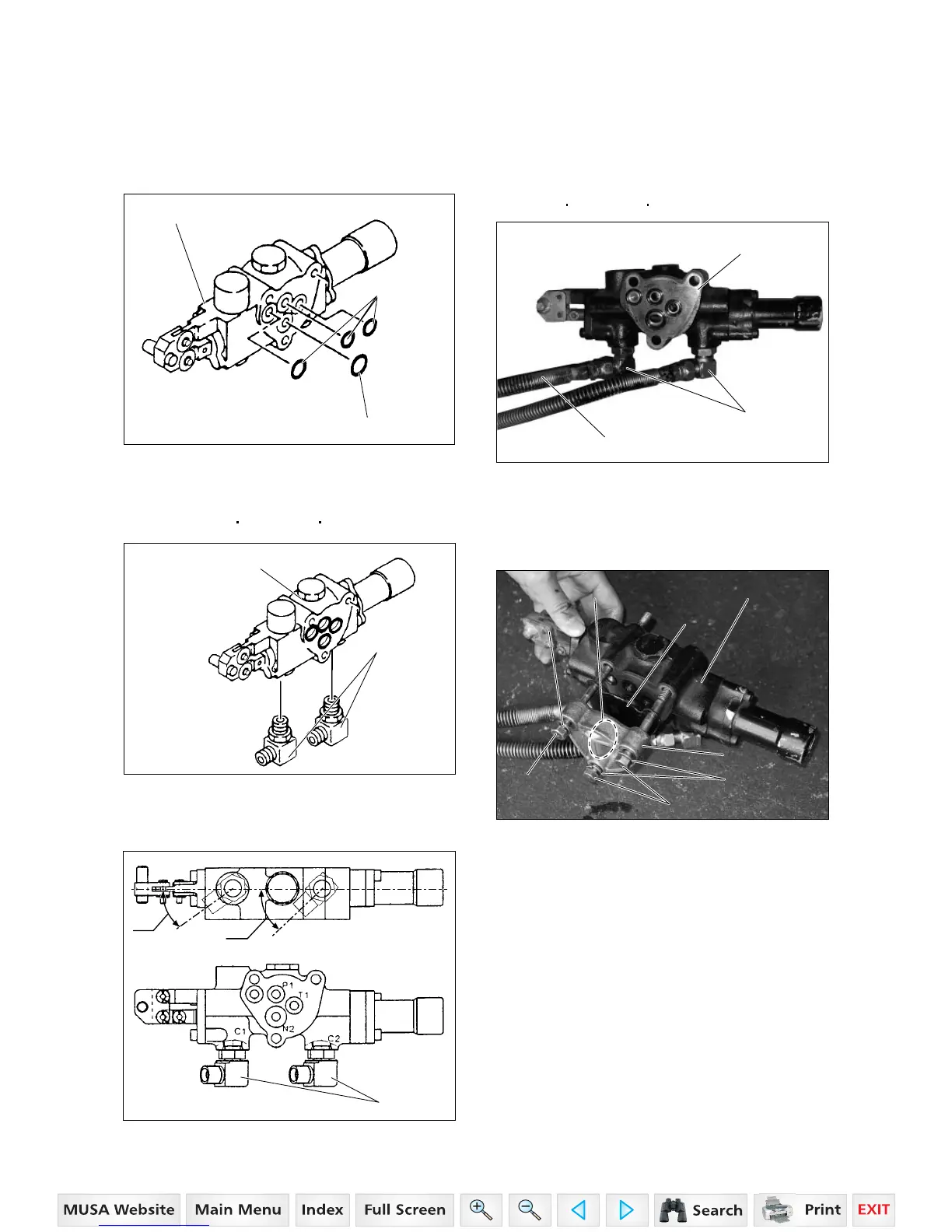

ASSEMBLING AUX. VALVE KIT
3. Check the position and direction of two
elbows.
15°
15°
20°
20°
1.Install O-rings to the Aux. valve body.
(Apply the oil to the O-rings.)
AUX. VALVE BODY
AUX. VALVE BODY
O-RINGS
O-RINGS
(12mm)
(12mm)
O-RINGS (16mm)
O-RINGS (16mm)
2. Install elbow to the Aux. valve body. Tight-
en the elbows to the following torque.
43.4-50.6Lbf
ft (59-69Nm)
ELBOW
ELBOW
AUX. VALVE BODY
AUX. VALVE BODY
ELBOW
ELBOW
4. Install hose A to the elbow. Tighten the
hose A to the following torque. 18.5-
21.4Lbf
ft (25-29Nm)
HOSE A
HOSE A
ELBOW
ELBOW
AUX. VALVE BODY
AUX. VALVE BODY
5.Set the cap, plate, O-ring with three bolts
(M8x85mm:2pcs, M8x140mm:1pcs) and
washers to the Aux. valve body.
AUX. VALVE BODY
AUX. VALVE BODY
PLATE
PLATE
BOLTS
BOLTS
(M8x140mm)
(M8x140mm)
CAP
CAP
WASHERS
WASHERS
WASHERS
WASHERS
BOLTS(M8x85mm)
BOLTS(M8x85mm)
O-RING(25mm)
O-RING(25mm)
