Mahindra 3016 User Guide

5

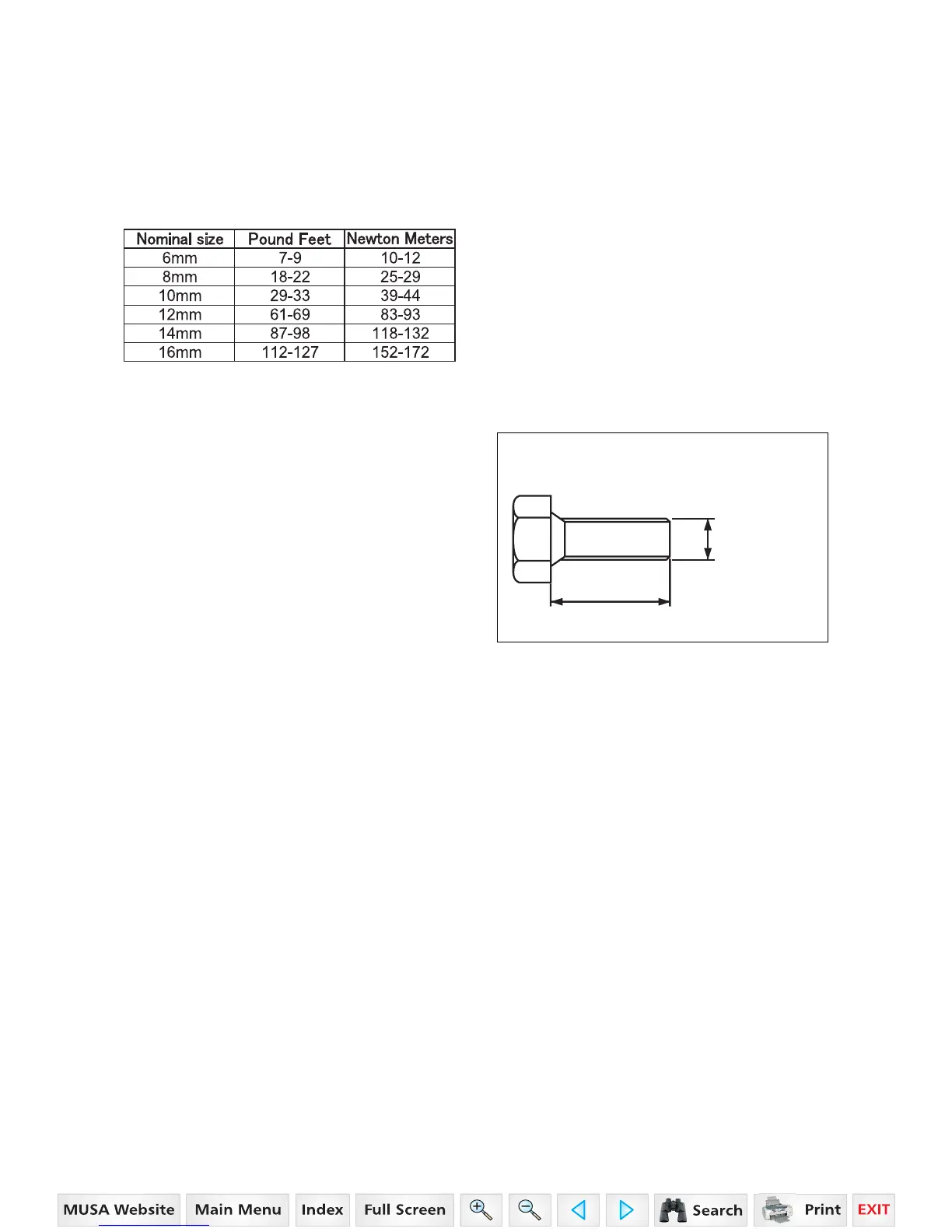

TORQUE SPECIFICATION
Use the following torques unless otherwise
specifi ed.
NOTE: The bolts and nuts used are "Met-
ric" sizes, be sure to use metric tools.
Be careful to use bolts and nuts of correct
sizes and thread pitches when assembling
this tractor.
NOTE: Nominal size is shown in the "size"
column.
25mm
10mm
(1
in = 25.4 mm)
(Example) M10x25mm Bolt

Mahindra 3016 Specifications

General

Engine Power	30 HP
Engine Cylinders	3
Drive Type	4WD
Engine Type	Diesel
Tire Size (Front)	7-16
Transmission	8 Forward / 2 Reverse
Fuel Tank Capacity	32 L
Tire Size (Rear)	12.4-24
