16
3.Fix hose A with wire band.
3. Install coupling assembly to the bracket
(A) with four bolts (M8 x 20mm) and four
nuts (M8).
Tighten the bolts to the following torque.
18-22Lbf
ft (25-29Nm)

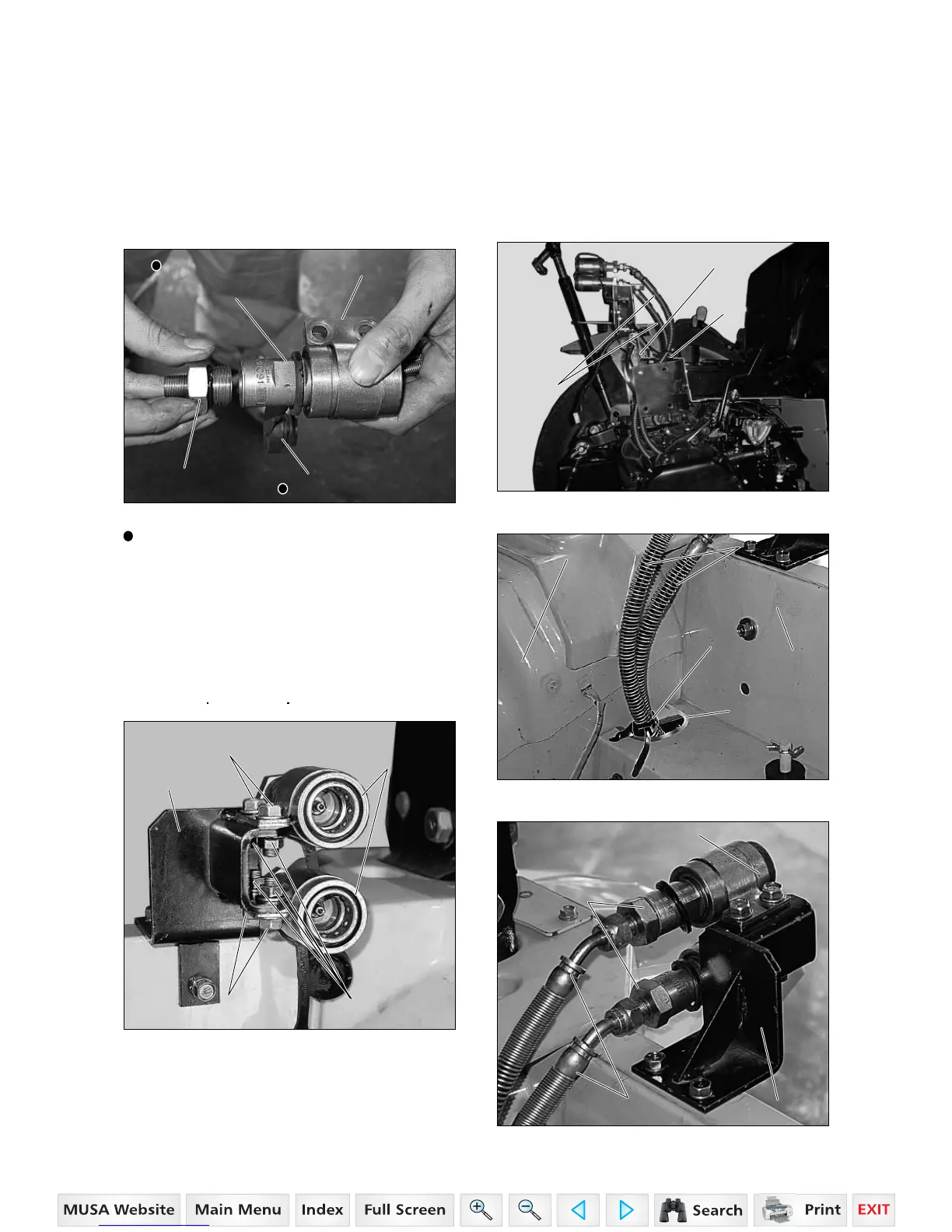

INSTALLING
COUPLING ASSEMBLY
1.Install adapter to the coupling assembly.
2. Install clamp coupler to the coupling as-
sembly.
COUPLING
COUPLING
ASSEMBLY
ASSEMBLY
ADAPTER
ADAPTER
CLAMP COUPLER
CLAMP COUPLER
BRACKET(A)
BRACKET(A)
COUPLING
COUPLING
ASSEMBLY
ASSEMBLY
BOLTS(M8x20mm)
BOLTS(M8x20mm)
NUTS (M8)
NUTS (M8)
BOLTS(M8x20mm)
BOLTS(M8x20mm)
CONNECTING HOSE A
1.Install seal A to the center cover.
2. Pass hose A through the hole of a center
cover.
SEAL A
SEAL A
CENTER COVER
CENTER COVER
CENTER
CENTER
COVER
COVER
FENDER R.H.
FENDER R.H.
WIRE BAND
WIRE BAND
4.Connecting the hose A and adapter
HOSE A
HOSE A
ADAPTER
ADAPTER
BRACKET (A)
BRACKET (A)
COUPLING ASSEMBLY
COUPLING ASSEMBLY
Coupling assembly and coupler cap are
not included in a kit
COUPLER CAP
COUPLER CAP
HOSE A
HOSE A
HOSE A
HOSE A
SEAL A
SEAL A

Mahindra 3016 Specifications

General

Engine Power	30 HP
Engine Cylinders	3
Drive Type	4WD
Engine Type	Diesel
Tire Size (Front)	7-16
Transmission	8 Forward / 2 Reverse
Fuel Tank Capacity	32 L
Tire Size (Rear)	12.4-24
