13

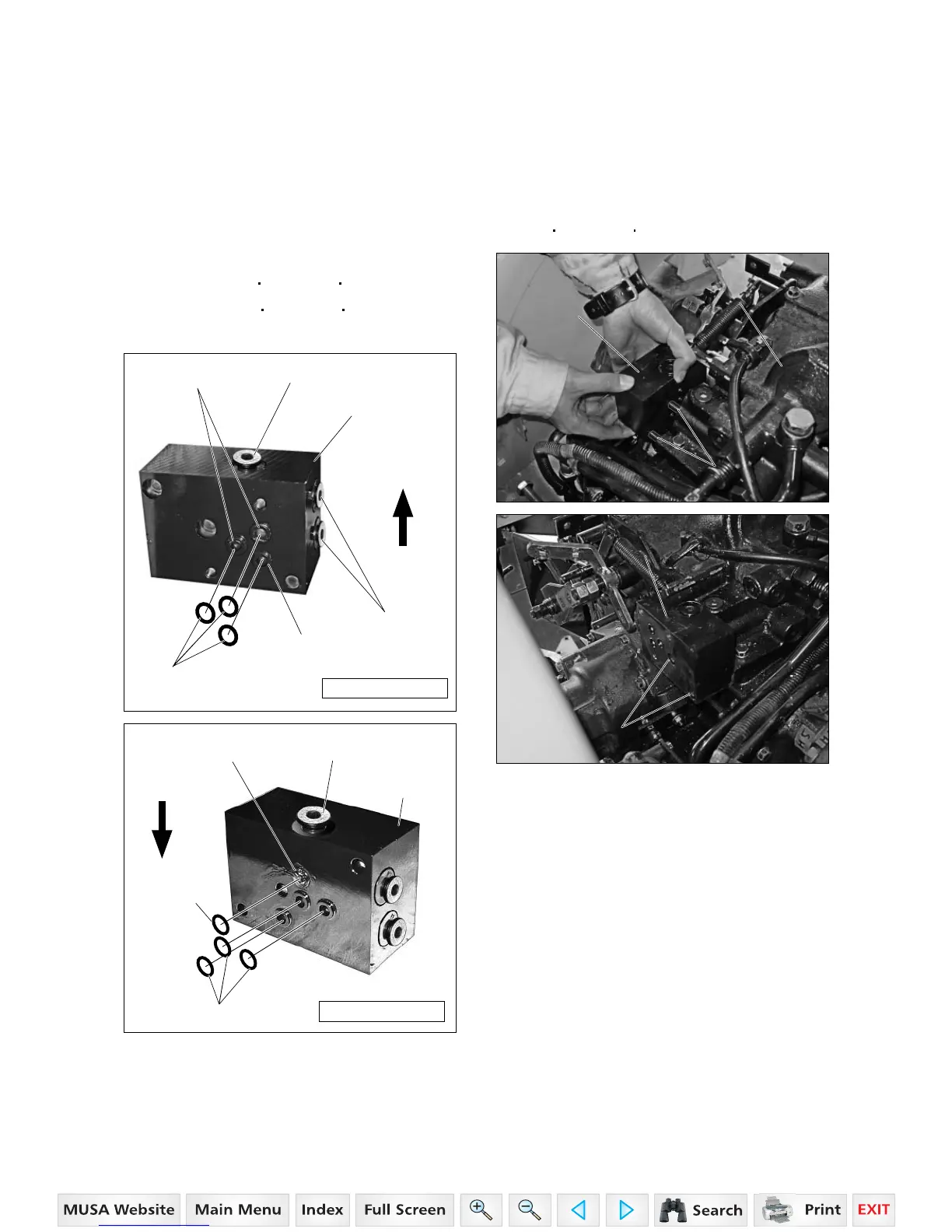

INSTALLING BLOCK
4. Install block to the hydraulic housing with
two bolts(M8x60mm).
Tighten the bolts to the following torque.18-
22Lbfft (25-29Nm)
BLOCK
BLOCK
HYDRAULIC
HYDRAULIC
HOUSING
HOUSING
BOLTS
BOLTS
(M8x60mm)
(M8x60mm)
1.Remove the Seven caps from the block.
2. Install seven O-rings (10mm) to the block.
3.Install four plugs (G1/4:3pcs, G3/8:1pcs)
to the block.
Tighten the plugs to the following torque.
G1/4 : 25-29Lbfft (34-39Nm)
G3/8 : 36-43Lbfft (49-59Nm)
[UPSIDE]
[UPSIDE]
BLOCK
BLOCK
CAPS
CAPS
PLUGS(G3/8)
PLUGS(G3/8)
O-RINGS(10mm)
O-RINGS(10mm)
O-RINGS
O-RINGS
(10mm)
(10mm)
[UPSIDE]
[UPSIDE]
BLOCK
BLOCK
CAPS
CAPS
CAPS
CAPS
PLUGS(G1/4)
PLUGS(G1/4)
O-RINGS(10mm)
O-RINGS(10mm)
FRONT SIDE
FRONT SIDE
BACKSIDE
BACKSIDE
PLUGS(G1/4)
PLUGS(G1/4)
BLOCK
BLOCK
BOLTS
BOLTS
(M8x60mm)
(M8x60mm)

Mahindra 3016 Specifications

General

Engine Power	30 HP
Engine Cylinders	3
Drive Type	4WD
Engine Type	Diesel
Tire Size (Front)	7-16
Transmission	8 Forward / 2 Reverse
Fuel Tank Capacity	32 L
Tire Size (Rear)	12.4-24
