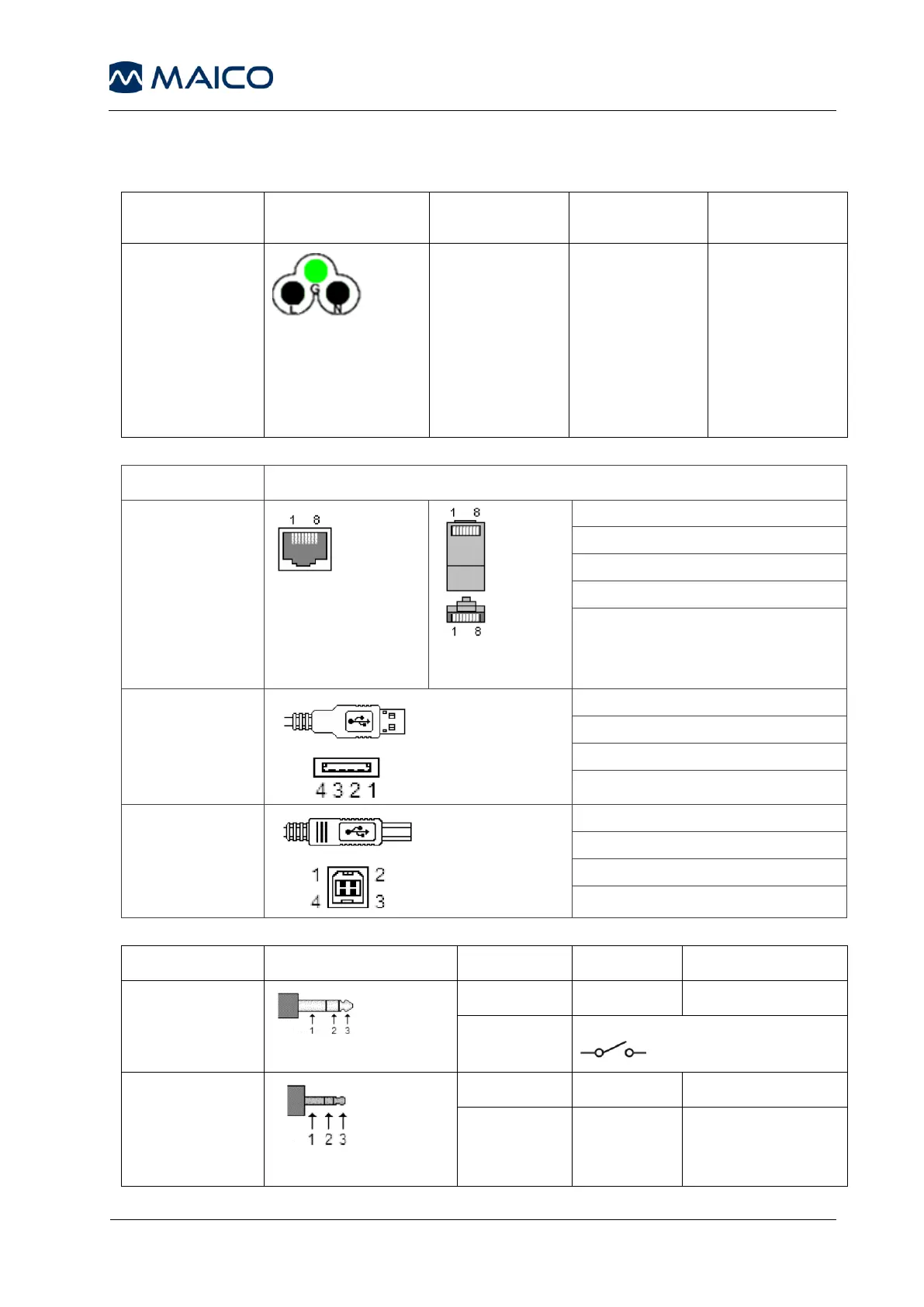

11.3 Pin Assignment
Socket No.
Connector
Pin L
(left)
Pin G
(top)
Pin N
(right)
2
DC socket
Rated current
international:
250 V/2,5 A
L (Live)
G (Ground)
N (Neutral)
Socket No.
LAN Ethernet
3
RJ45 Socket
RJ45 Cable
Plug
TX + Transmit Data
TX- Transmit Data-
RX+ Receive Data+
Not connected
RX- Receive Data
4
1. +5 VDC
2. Data -
3. Data +
4. Ground
5
1. +5 VDC
2. Data -
3. Data +
4. Ground
SOCKET NO.
CONNECTOR
PIN 1
PIN 2
PIN 3
6; 7; 8; 11; 12;
13; 14; 15; 16;
17
6.3 mm Stereo
Ground
DC bias
Signal
-
9; 10
3.5 mm Stereo
Ground
DC bias
Signal
Ground
Right
Left
