2011 Maipu Communication Technology Co., Ltd, All Rights Reserved
16

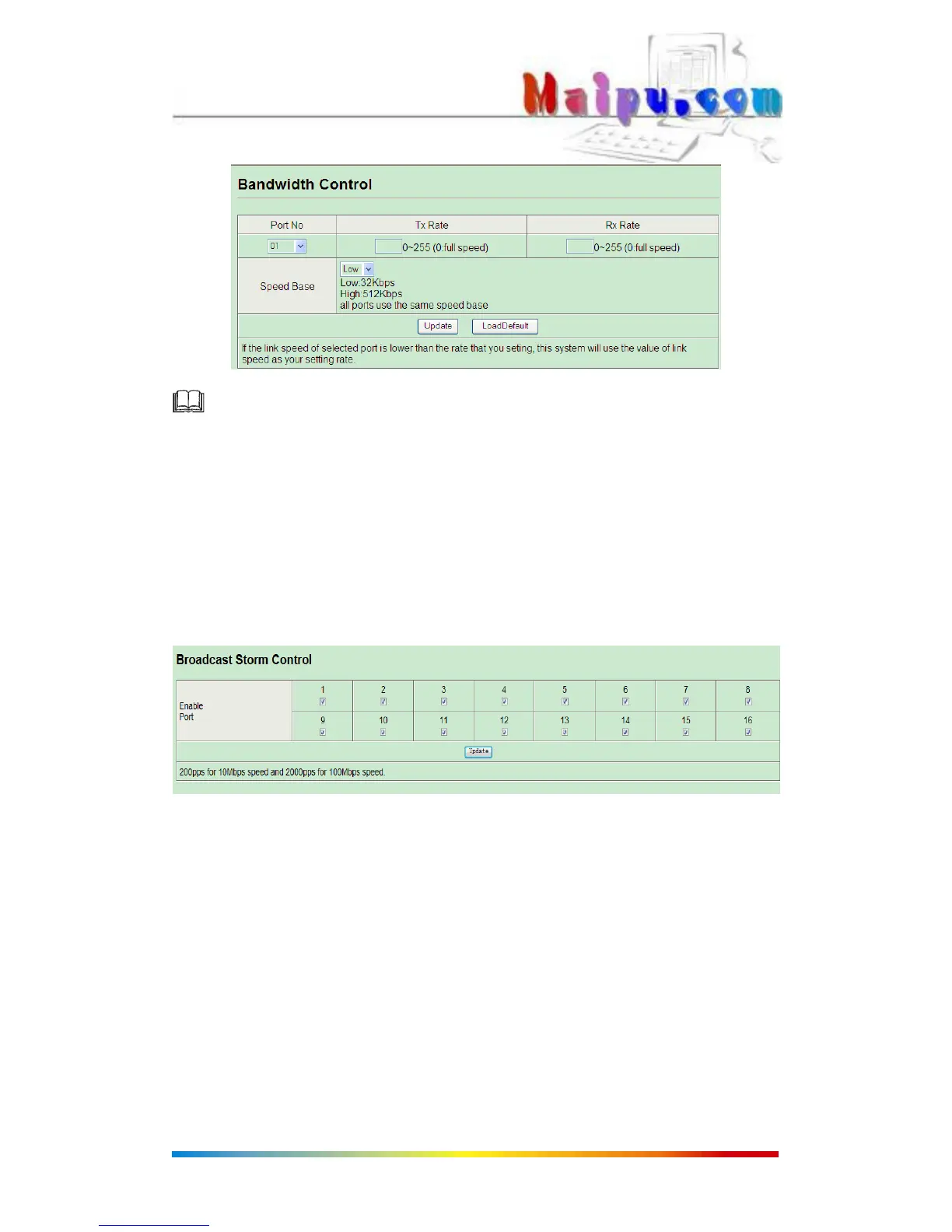

Note: If the connecting speed rate is smaller than the bandwidth control rate, the
connecting speed rate will be bandwidth control rate.
3.4 Broadcast Suppression
As following, select port in (Enable Port) and input 0-63 in threshold which means the max
broadcast number permitting in certain in the port. Port rate 10Mbps equals to 5000us
time unit, and port rate 100Mbps equals to 500us time unit time.
3.5 CpuCar and port enable configuration
CpuCar mainly use to set port about the number of packets per unit time on the CUP,
Enable means global open, selected port means enable CpuCar, rate by default 200pps,
range 150-300, Disable means global shutdown.
Enable port is switch, non-selected port will shutdown.
