Maipu S2000-8/16 10/100Mbps Ethernet Switch User Manual

2011 Maipu Communication Technology Co., Ltd, All Rights Reserved
25

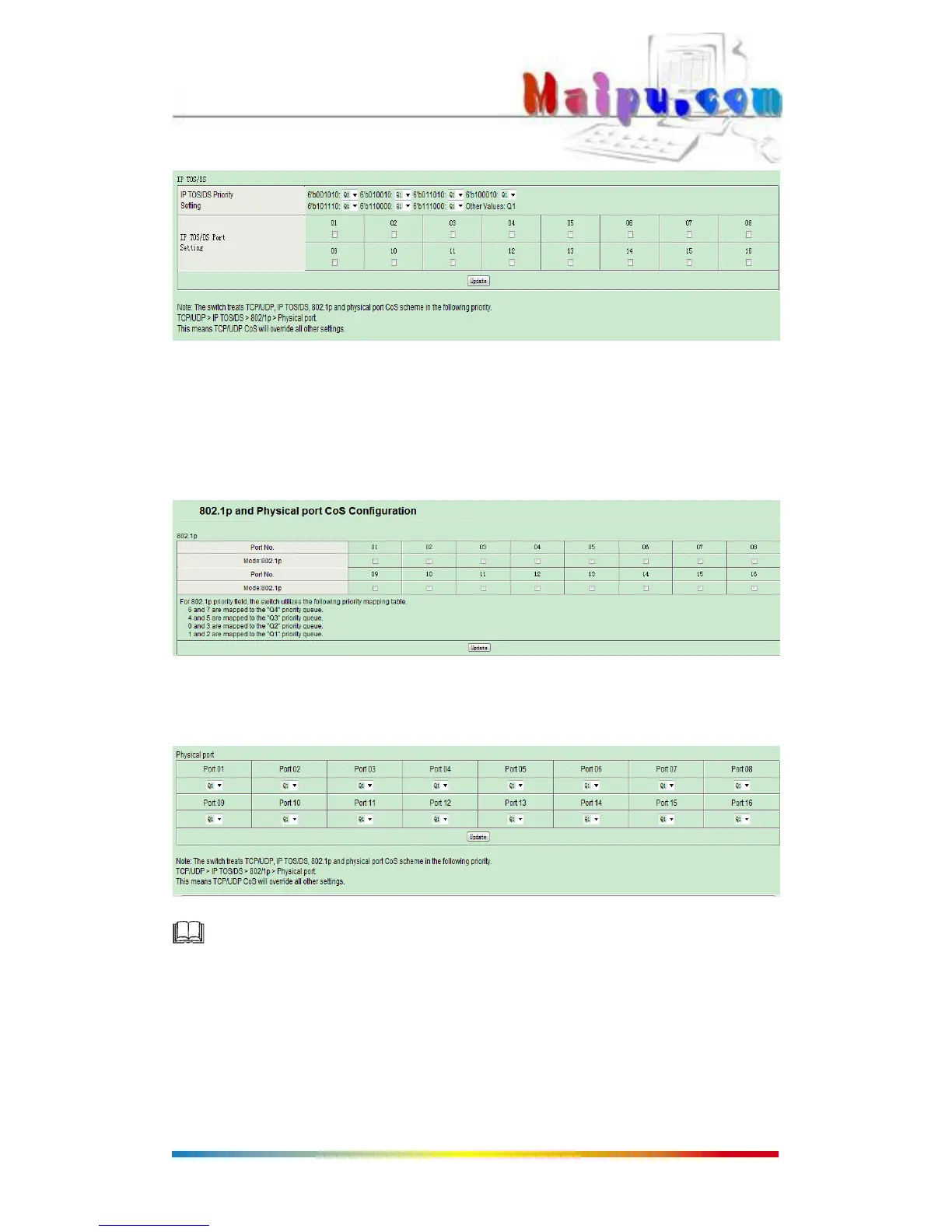

6.3 802.1p and Physical Port Priority
1. 802.1p priority configuration
As below figure, tick off relevant ports, click (update).
2. Physical port priority configuration
As below figure, each port chooses Q1~Q4, click (update) .
Note: four types of priority: TCP/UDP, IP TOS/DS, 802.1p and Physical port
TCP/UDP>IP TOS/DS>802.1p>Physical port, TCP/UDP priority is higher than other 3
types.
