Maipu S2000-8/16 10/100Mbps Ethernet Switch User Manual

2011 Maipu Communication Technology Co., Ltd, All Rights Reserved
43

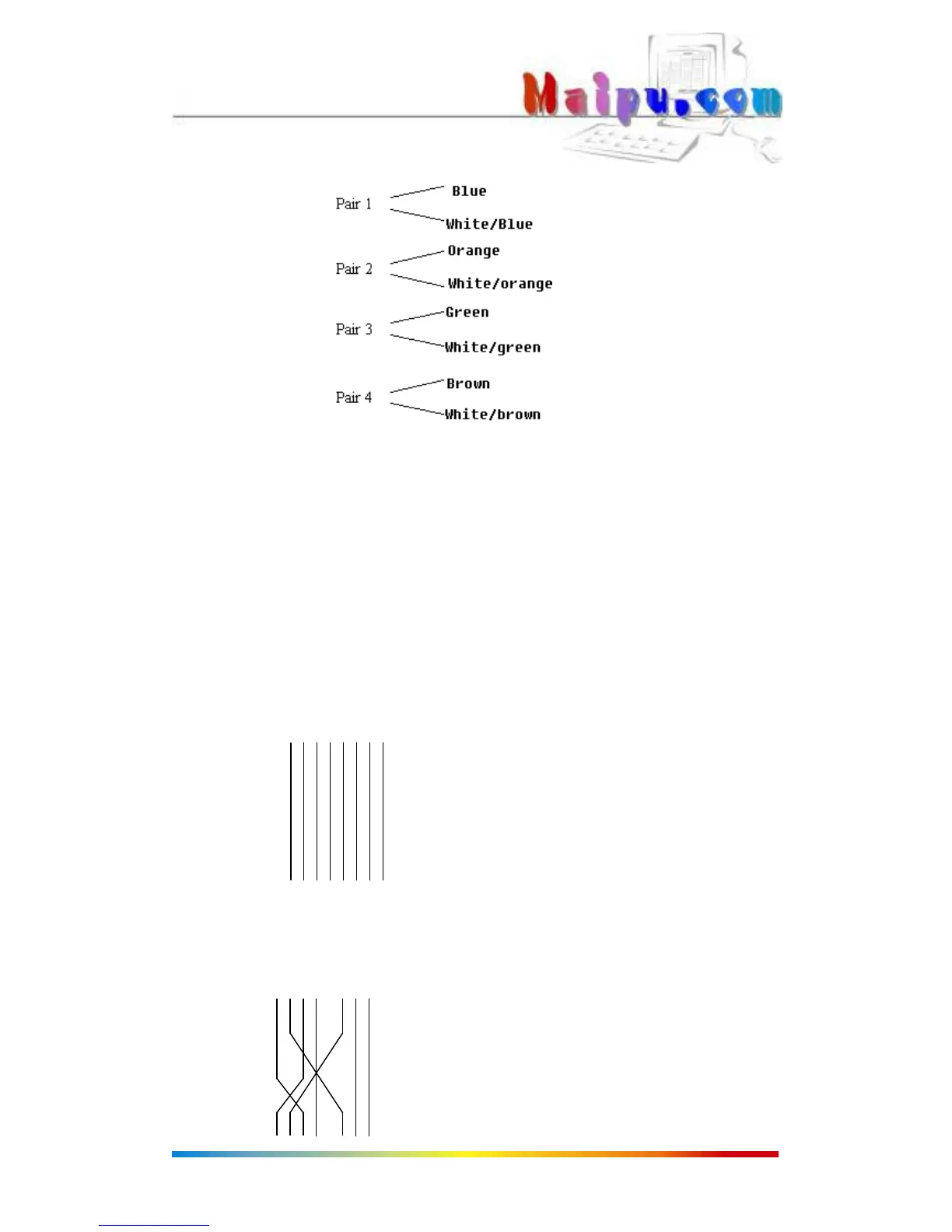

Appendix picture 2 The picture of categories 5 twisted-pair
Categories 5 twisted-pair consists of 8-core filament with the color on the insulated layer
being grouping sign. Usually, it uses a single color and single color with white to be a pair of
standard, and sometimes uses color points to be a pair of sign. Here, take the former as an
example.
Categories 5 twisted-pair consists of 8-core filament with the color on the insulated layer
being grouping sign. Usually, it uses a single color and single color with white to be a pair of
standard, and sometimes uses color points to be a pair of sign. Here, take the former as an
example.
SIDE1 SIDE 1 SIDE 2
1 2 3 4 5 6 7 8 1=white/orange 1=white/orange
2=orange 2=orange
3=white/green 3=white/green
4=blue 4=blue
5=white/blue 5=white/blue
6=green 6=green
7=white/brown 7=white/brown
1 2 3 4 5 6 7 8 8= brown 8=brown
Appendix picture 3 Making parallel reticle
SIDE1 SIDE 1 SIDE2
1 2 3 4 5 6 7 8 1=white/orange 1=white/green
2=orange 2=green
3=white/green 3=white/orange
4=blue 4=blue
5=white/blue 5=white/blue
6=green 6=orange
