Makita HR2610T Technical Information

P 23/ 23

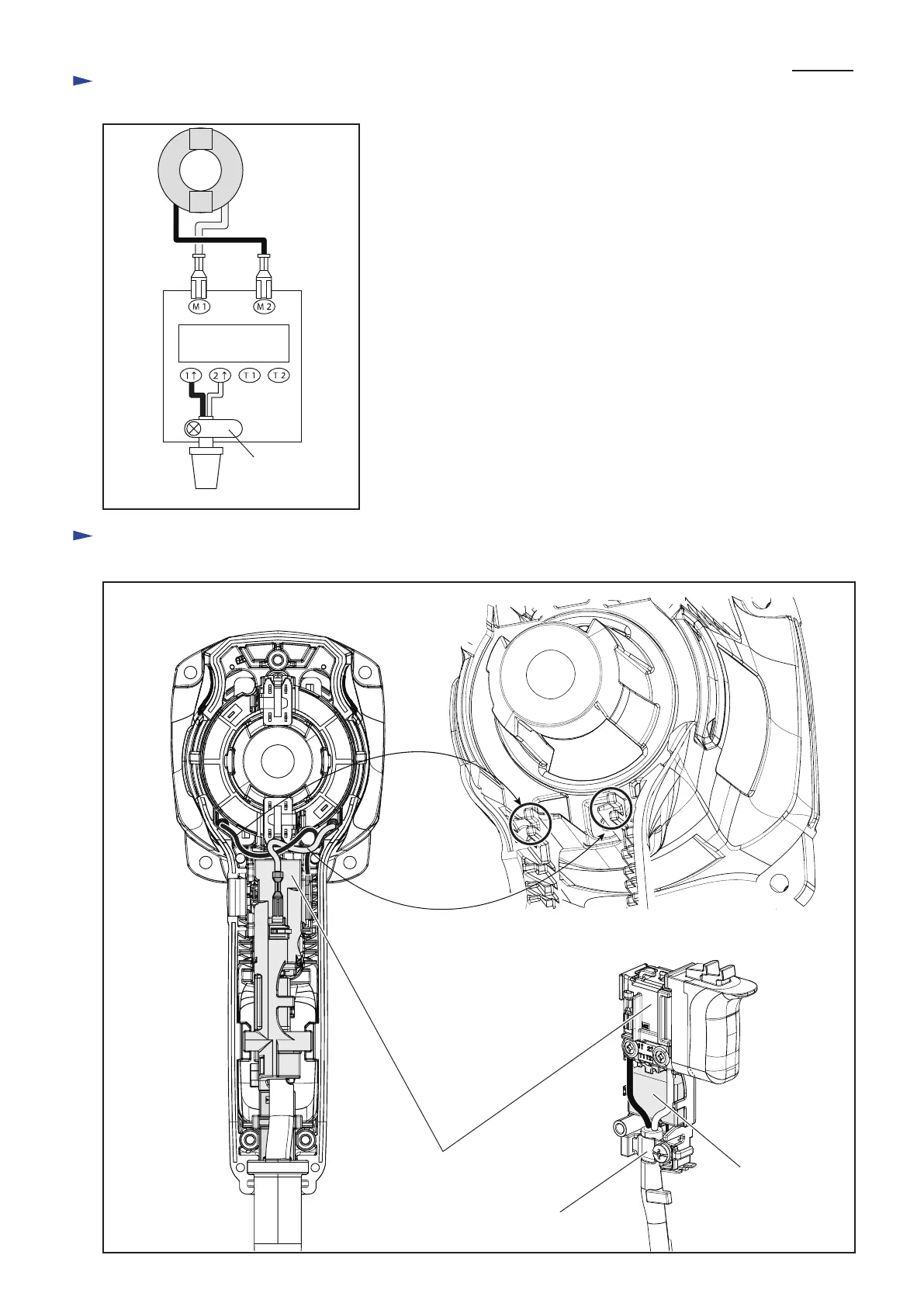

Circuit diagram
Fig. D-1
Wiring diagram
Fig. D-2
Switch*
Brush holder unit
Noise suppressor
(if used*)
Noise suppressor
(if used)
Power supply cord
Strain relief
Switch
Fix white lead wire in this lead wire holder.
Fix black
lead wire
in this lead
wire holder.
Lead wires (black, white) must be tight between
Brush holder unit and Lead wire holders.
Strain relief
* To comply with the electromagnetic compatibility-requirement,
Switch equipped with Noise suppressor is used for some countries.
