Makita LD080PI User Manual

Makita LD080PI
Measuring Functions
13
EN

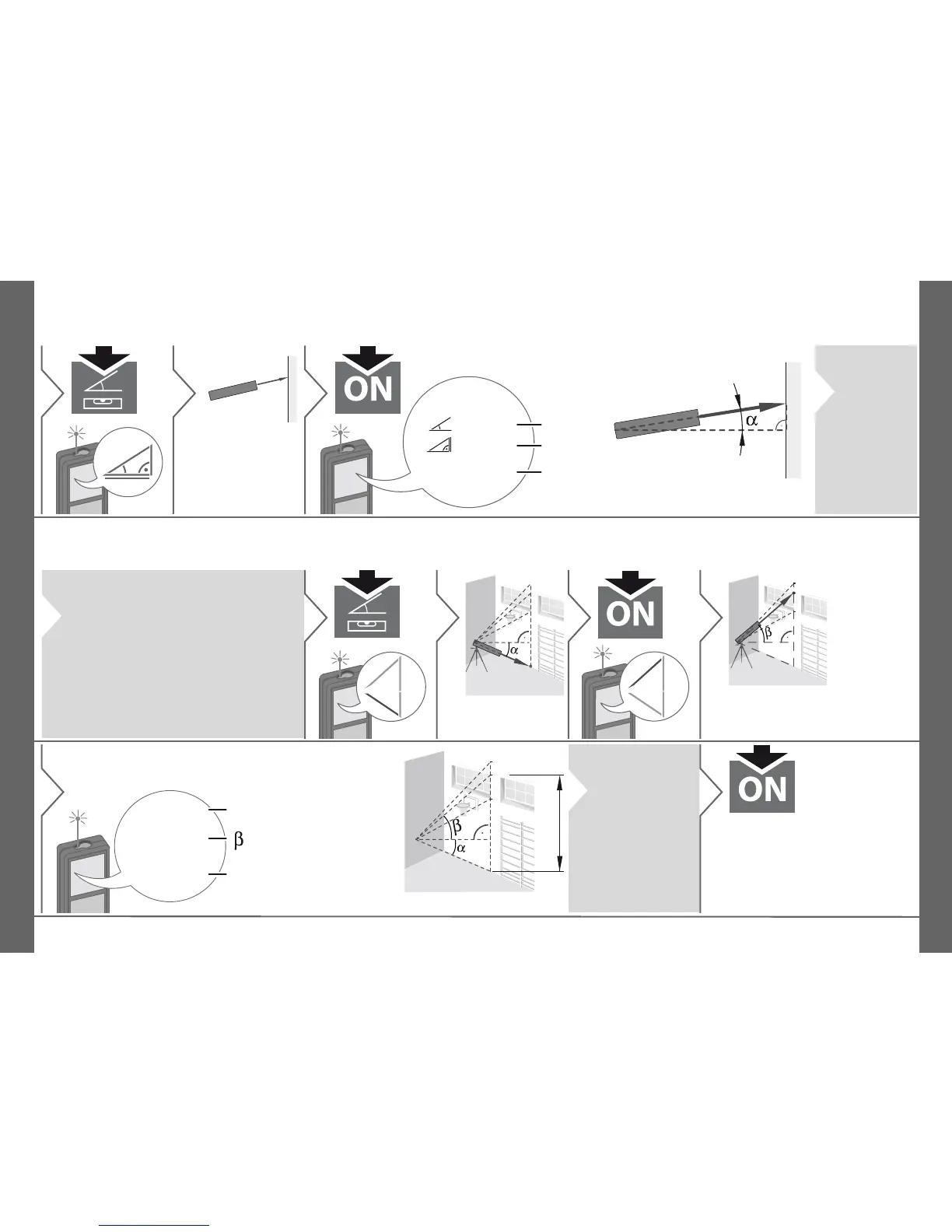

Smart Horizontal Mode
1
Aim laser at tar-
get.
2
0.032 m
24.3 °
4.827 m
α
z
x
y
z
y
3
(up to 360° and a transverse
tilt of ±10°)
i
Press key
again to
switch off
horizontal
measure-
ment.
Height tracking
i
This function displays continous-
ly the tracking height if the device
is turned on a tripod. No 2nd dis-
tance measuring is needed as
only the angle is automatically
measured.
1
2x
x
x
Aim laser at low-
er point.
2
3
h1
h2
h3
Aim laser at upper points and
angle/ height tracking starts au-
tomatically.
4
h1
h2
h3
x
y
30.2 °
6.932 m
9.827 m
x
y
5
= Tracking height
= Tracking angle
i
The tracked
height "y" is in
90° to the 1st
aimed point
"x".
6
Stops Height tracking and
displays last measurement.

Makita LD080PI Specifications

General

Product color	Black, Blue
Memory function	Yes
Electronic compass	-
Display number of lines	3 lines
Distance measuring units	cm, m, mm
Number of memory records	20
International Protection (IP) code	IP54
Accuracy	1.5 mm
Wavelength	635 nm
Laser class	2
Sensor tilt angle	180 °
Maximum measurement distance	80 m
Minimum measurement distance	0.05 m
Battery type	AAA
Battery life (measurements)	5000

Weight and Dimensions

Depth	32 mm
Width	57 mm
Height	117 mm
Weight	140 g
