Makita LD080PI - Operations; Switching ON;OFF; Adjusting measuring reference; tripod

Makita LD080PI
4
EN

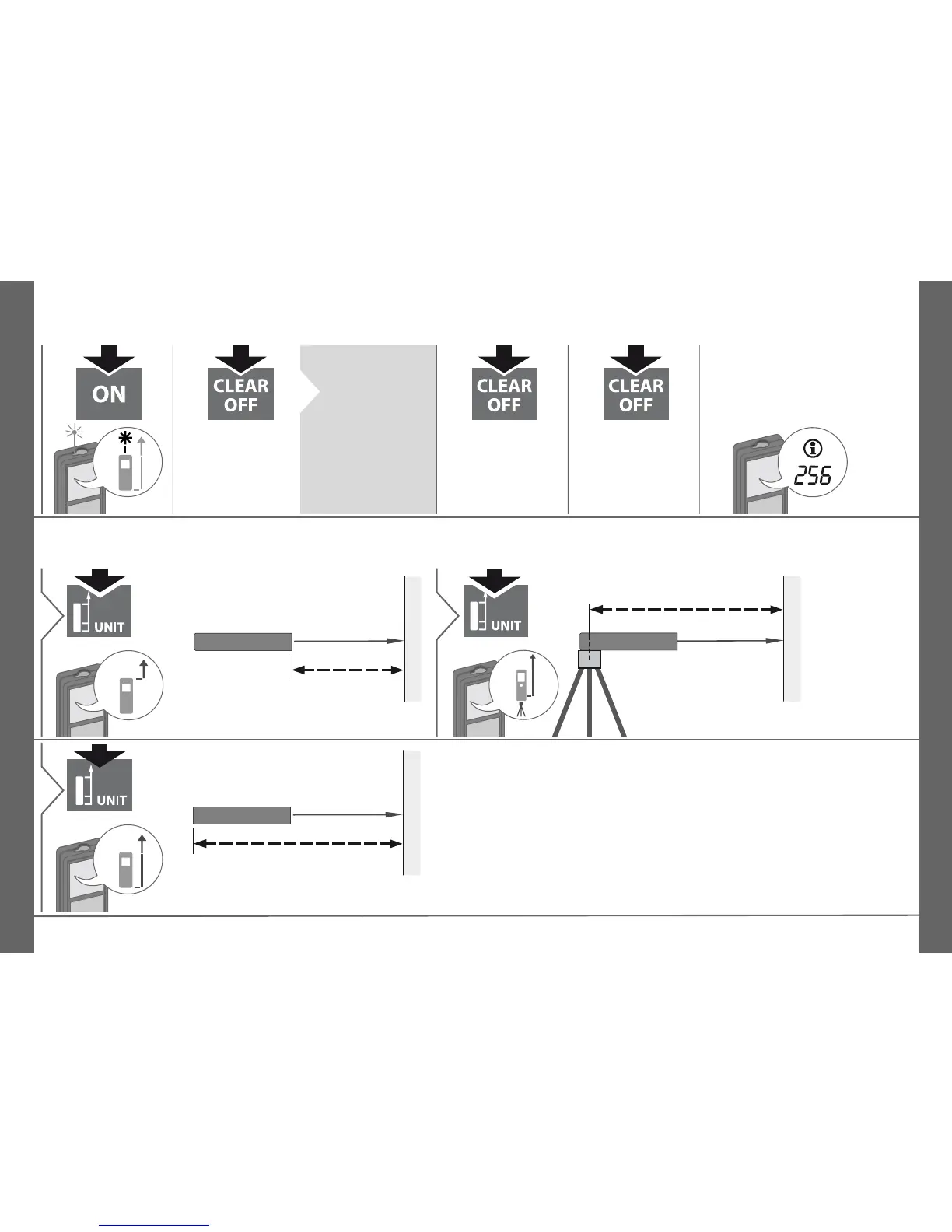

Operations
Switching ON/OFF Clear Message Codes
2 sec
Device is
turned OFF.
i
Press ON but-
ton 2 sec to
start continuous
laser mode. If
no key is
pressed for 180
sec, the device
switches off au-
tomatically.
1x
Undo last action.
2x
Leave actual
function, go to de-
fault operation
mode.
If the info icon appears with a
number, observe the instruc-
tions in section "Message
Codes".
Example:
Adjusting measuring reference / tripod
Distance is measured from the
front of the device.
1
Distance is measured
from the tripod thread
permanently.
2
Distance is measured from the rear
of the device (standard setting).
3
