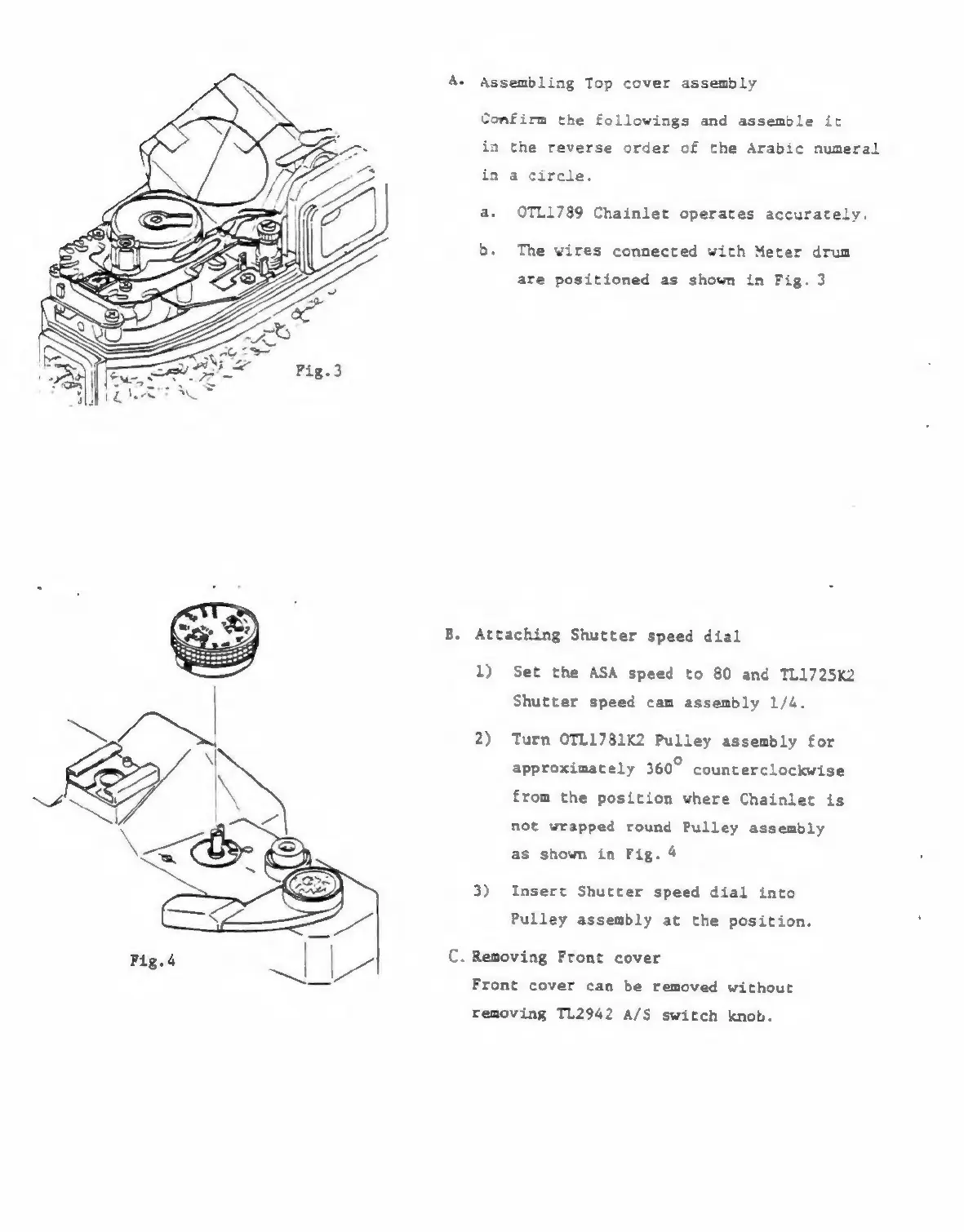

Mamiya DSX - Page 10

A. Assembling Top cover assembly
Confirm the followings and assemble it
in the reverse order of the Arabic numeral
in a circle.
a. OTL1789 Chainlet operates accurately.
b. The wires connected with Meter drum
are positioned as shown in Fig. 3
B. Attaching Shutter speed dial
1)
Set
the
ASA
speed
to
80
and
TL1725K2
Shutter speed cam assembly 1/4.
2) Turn OTL1781K2 Pulley assembly for
approximately
360°
counterclockwise
from
the
position
where
Chainlet
is
not wrapped round Pulley assembly
as shown in Fig. 4
3) Insert Shutter speed dial into
Pulley assembly at the position.
C. Removing Front cover
Front
cover
can
be
removed
without
removing
TL2942
A/S
switch
knob.
