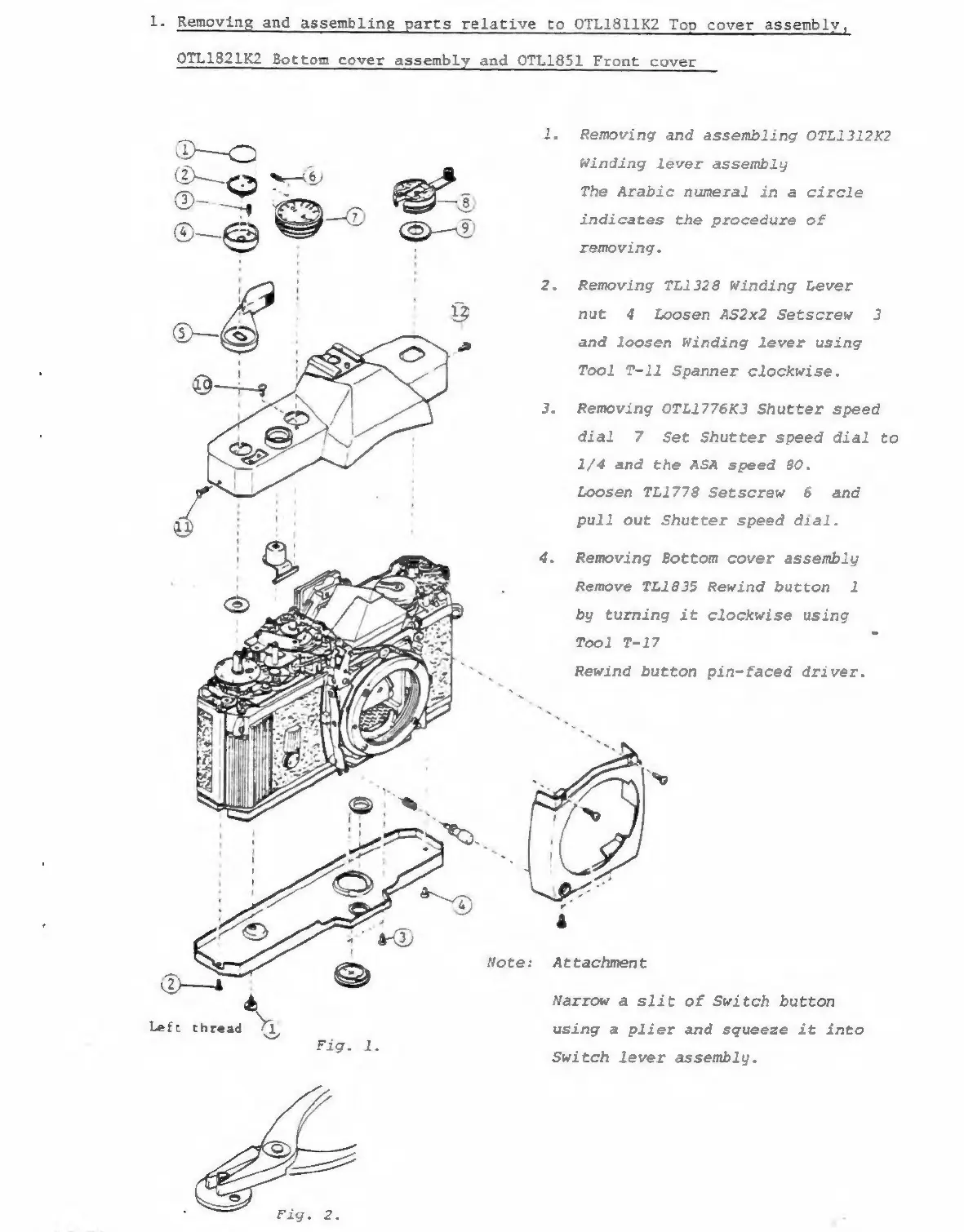

1.
Removing
and
assembling
parts
relative
to
OTL1811K2
Top
cover
assembly,
OTL1821K2
Bottom
cover
assembly
and
OTL1851
Front
cover
- Removing and assembling OTL1312K2
Winding lever assembly
The Arabic numeral in a circle
indicates the procedure of
removing.
2. Removing TL1328 Winding Lever
nut 4 Loosen AS2x2 Setscrew 3
and loosen Winding lever using
Tool T-1l Spanner clockwise.
3. Removing OTL1776K3 Shutter speed
dial 7 Set Shutter speed dial to
1/4 and the ASA speed 80.
Loosen TL1778 Setscrew 6 and
pull out Shutter speed dial.
4. Removing Bottom cover assembly
Remove TL1835 Rewind button 1
by turning it clockwise using
Tool T-17
Rewind button pin-faced driver.
Attachment
Narrow a slit of Switch button
using a plier and squeeze it into
Switch lever assembly.
