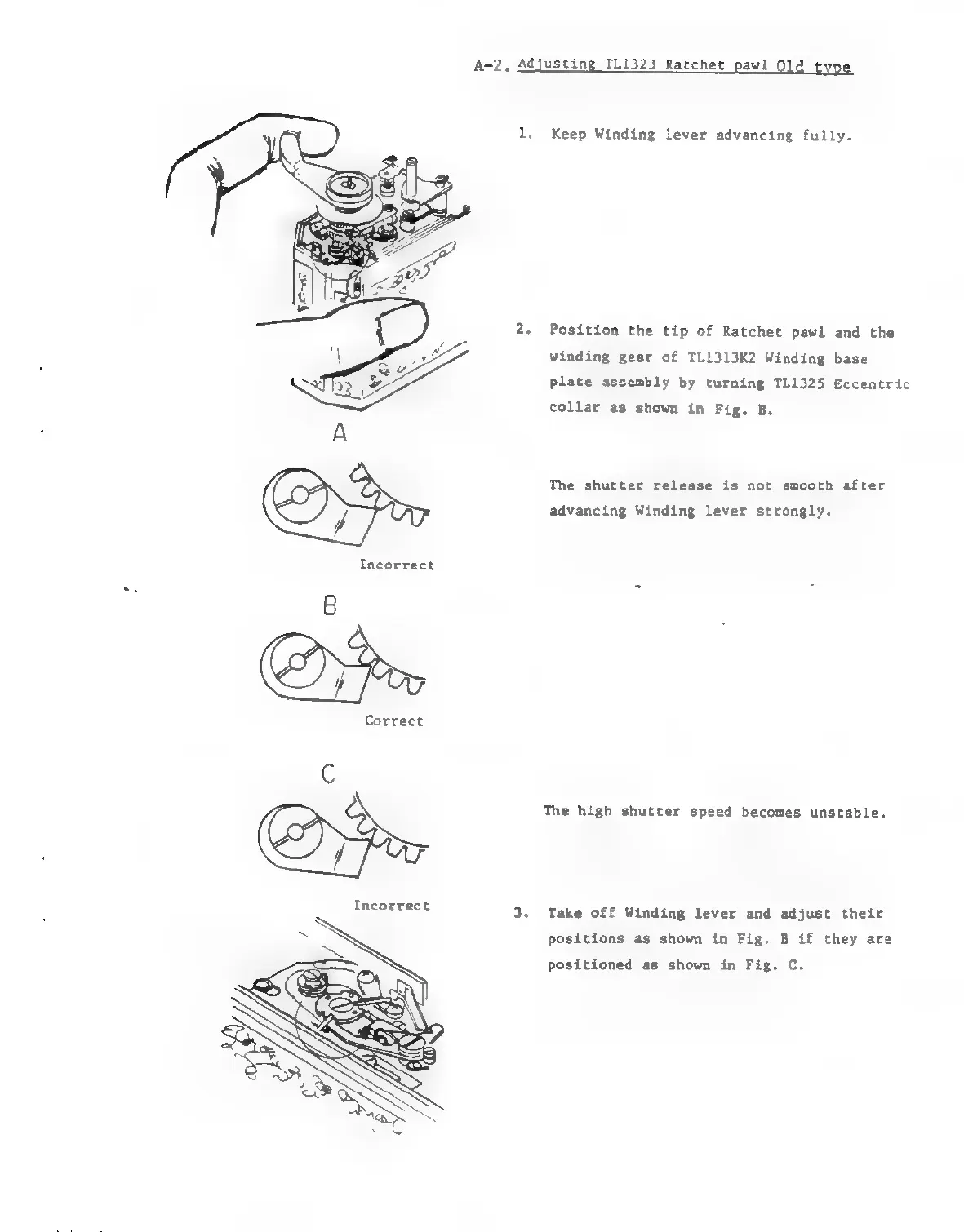

A-2,
Adjusting
TL1323
Ratchet
pawl
Old
type
1.
Keep
Winding
lever
advancing
fully.
2.
Position
the
tip
of
Ratchet
pawl
and
the
winding
gear
of
TL1313K2
Winding
base
plate
assembly
by
turning
TL1325
Eccentric
collar
as
shown
in
Fig.
B.
The
shutter release
is
not
smooth
after
advancing
Winding
lever
strongly.
Incorrect
Correct
The
high
shutter
speed
becomes
unstable
Laconrect
3.
Take
off
Winding
lever
and
adjust
their
positions
as
shown
in
Fig.
B
if
they
are
positioned
as
shown
in
Fig.
C.
