B. Adjusting TL1318 Winding stop lever
\\
\S
S)
iM
oat
Addendum
of over 0.3 mm
in width

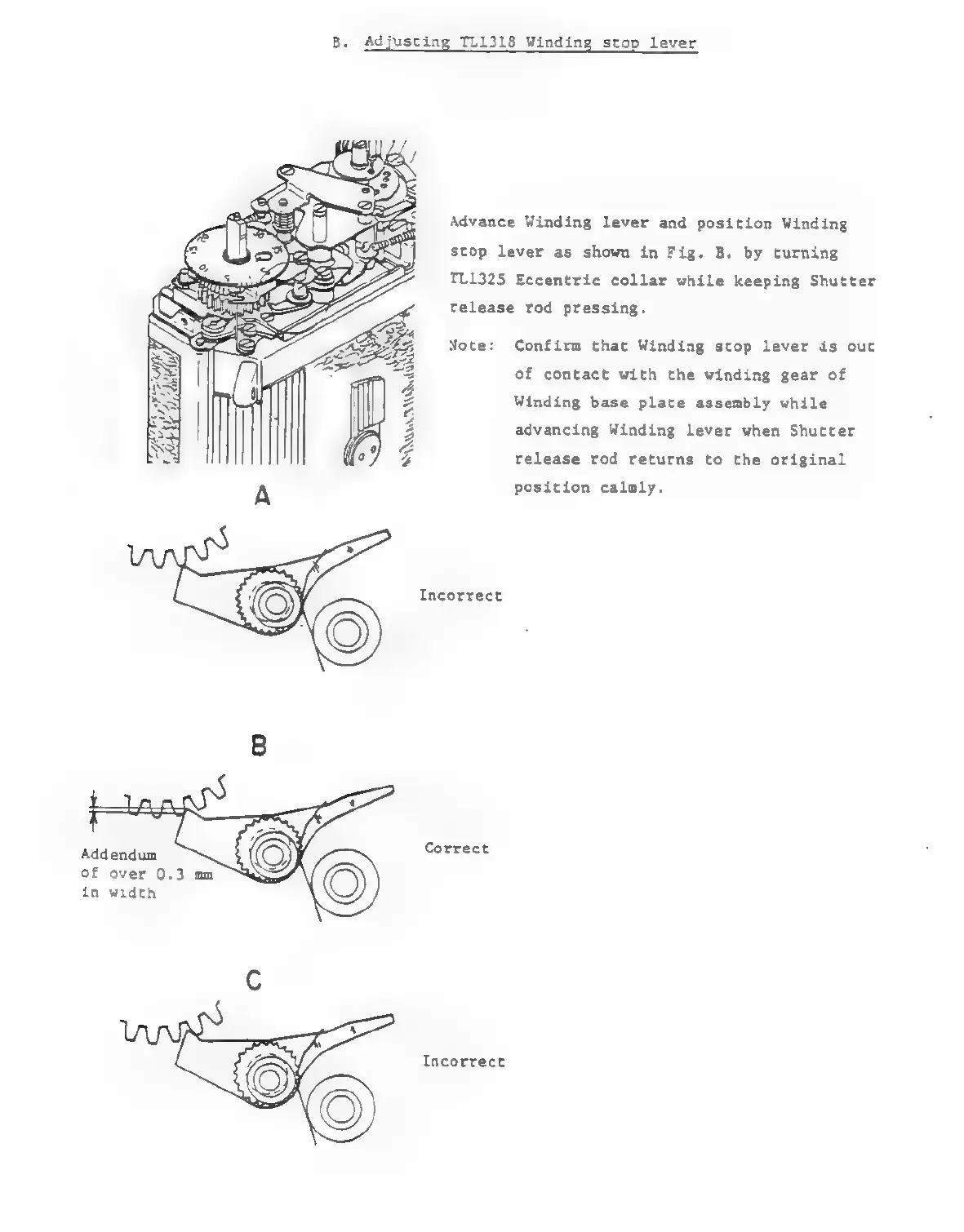

Advance Winding lever and position Winding
stop lever as shown in Fig. B. by turning
TL1325 Eccentric collar while keeping Shutter
telease rod pressing.
Note: Confirm that Winding stop lever is out
of contact with the winding gear of
Winding base plate assembly while
advancing Winding lever when Shutter
release rod returns to the original
position calmly.
Incorrect
Correct
Incorrect
