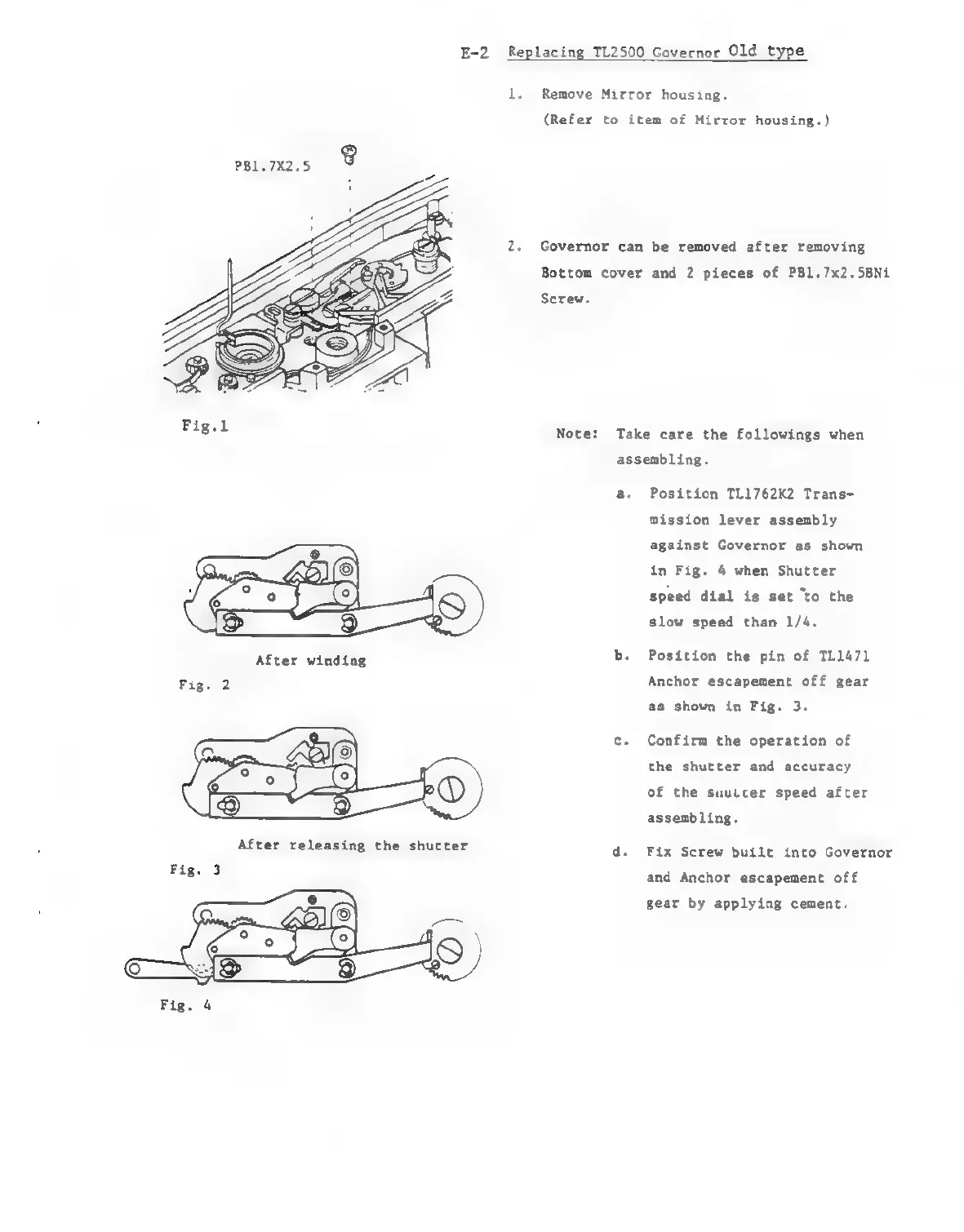

E+-2
Replacing
TL2500
Governor
Old
type
1.
Remove Mirror
housing.
(Refer
to
item
of
Mirror
housing.)
PB1.7X2.5
2.
Governor
can
be
removed
after
removing
Bottom
cover
and
2
pieces
of
PBl.7x2.5BNi
Screw.
Note:
Take
care
the
followings
when
assembling.
a.
Position
TL1762K2
Trans-
mission
lever
assembly
against
Governor
as
shown
in
Fig.
4
when
Shutter
speed
dial
is
set
to
the
slow
speed
than
1/4.
b.
Position
the
pin
of
TL1471
Anchor
escapement
off
gear
as
shown
in
Fig.
3.
c.
Confirm
the
operation
of
the
shutter
and
accuracy
of
the
suutcer
speed
after
assembling.
d.
Fix
Screw
built
into
Governor
and
Anchor
escapement
off
gear
by
applying
cement.
