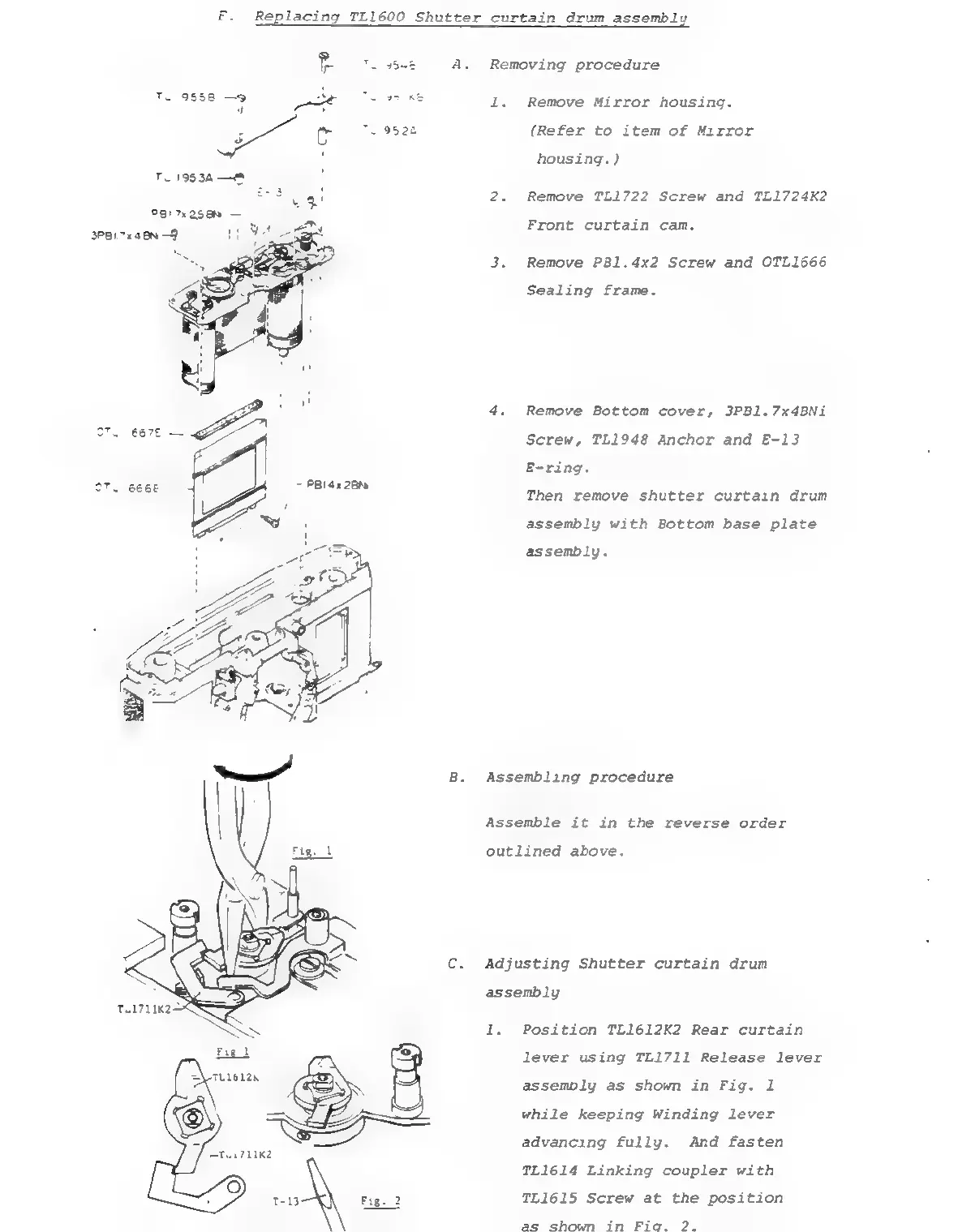

Replacing TL1600 Shutter curtain drum assembly
Removing procedure
i. Remove Mirror housing.
(Refer to item of Mirror
housing.)
Remove TL1722 Screw and TL1724K2
Front curtain cam.
Remove PB1.4x2 Screw and OTL1666
Sealing frame.
Remove Bottom cover, 3PBl.7x4BNi
Screw, TL1948 Anchor and E-13
E-ring.
Then remove shutter curtain drum
assembly with Bottom base plate
assembly.
Assembling procedure
Assemble it in the reverse order
outlined above.
Adjusting Shutter curtain drum
assembly
1. Position TL1612K2 Rear curtain
lever using TL1711 Release lever
assemply as shown in Fig. 1
while keeping Winding lever
advancing fully. And fasten
TL1614 Linking coupler with
TL1615 Screw at the position
as shown in Fig. 2.
